What types of loads can these upenders / tilters handle?

They are suitable for heavy or awkward objects such as steel coils, drums, or other large or irregular-shaped loads which need to be rotated from horizontal to vertical position.

What tilt angles are available with the hydraulic upenders / downenders?

Tilt / flip angles such as 30°, 45°, or 90° are available, depending on the model and configuration.

What safety and control features are included?

These machines typically include features like hydraulic systems allowing smooth motion and hold positions, limit switches, external motor starter, secure load holding, and proper platform safety decks.

What types of loads can these upenders / tilters handle?

They are suitable for heavy or awkward objects such as steel coils, drums, or other large or irregular-shaped loads which need to be rotated from horizontal to vertical position.

What tilt angles are available with the hydraulic upenders / downenders?

Tilt / flip angles such as 30°, 45°, or 90° are available, depending on the model and configuration.

What safety and control features are included?

These machines typically include features like hydraulic systems allowing smooth motion and hold positions, limit switches, external motor starter, secure load holding, and proper platform safety decks.

Now Available Worldwide

customized upenders tilters,customized hydraulic upenders

An upender (also known as a tilter or a coil upender) is a machine that is used to rotate heavy or awkward objects from a horizontal position to a vertical position. They are commonly used in the manufacturing and processing industries to facilitate the handling, storage, and transportation of materials such as steel coils, drums, and other large or irregularly shaped objects.

Get Free Quote Watch Demo

CE Certified

ISO 9001

2 Year Warranty

98%

Efficiency Rate

2 Year

Full Warranty

customized upenders tilters

Visual Details

Click to enlarge

Click to enlarge

Click to enlarge

Click to enlarge

See It In Action

Watch How It Works

Discover how our automated packaging solutions optimize your production line efficiency. This video demonstrates the seamless operation designed for maximum protection.

High Throughput

Up to 60 coils per hour

Consistent Quality

Every wrap meets spec

Request A Quote

One platform on the hydraulic upender may be significantly smaller or larger than the other platform, making these hoists suitable for larger loads in one dimension.

Coil upenders can also handle more than one coil.

the features and capabilities of a hydraulic upender or downender, which is a type of machinery used to tilt or flip heavy loads. These machines are typically used in a variety of industries, such as manufacturing, construction, and logistics, to reposition large, heavy items.

Some of the key features and benefits of hydraulic upenders and downenders include their ability to handle large loads up to 6,000 lbs, their ability to tilt or flip loads at various angles (such as 30˚, 45˚, or 90˚), and their smooth and controlled hydraulic system, which allows the operator to stop and hold the upender at any position during its travel. Additionally, these machines often have adjustable platform heights and may be equipped with various types of decks or conveyors to suit different applications.

It is important to follow the manufacturer's instructions and safety guidelines when operating a hydraulic upender or downender, and to ensure that the machine is in good working condition and that the load is properly secured before activating it.

Remote motor starter:

If the starter is installed externally, it is necessary to supply the starter with three-phase power of the appropriate voltage and then direct the starter to the motor in the base. In most cases, the motor leads will terminate in the exit box in the pedestal, and the leads of the starter can be connected to the outlet box. The control circuit transformer is equipped with a magnetic starter and requires additional wires from the transformer to the exit box in the pedestal. These will pick up the limit switches and buttons that can be connected to this outlet box.

Related Pictures:

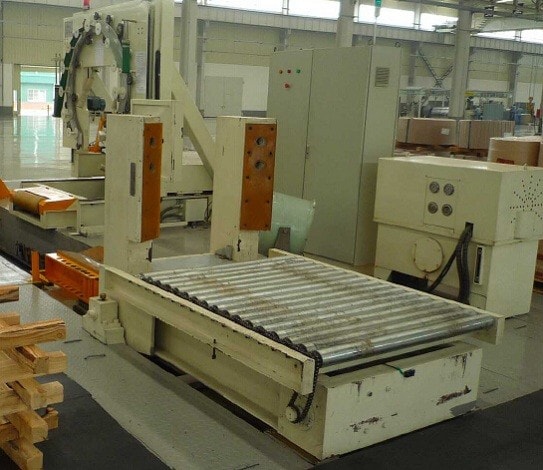

Upender/tilter + coil wrapping machine

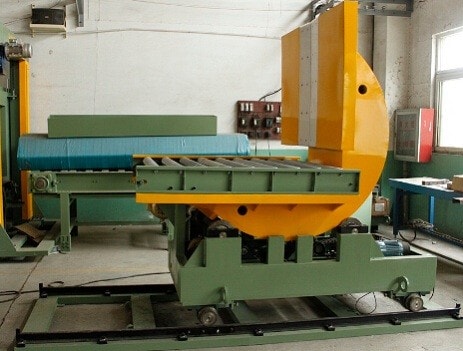

Upender/tilter + track

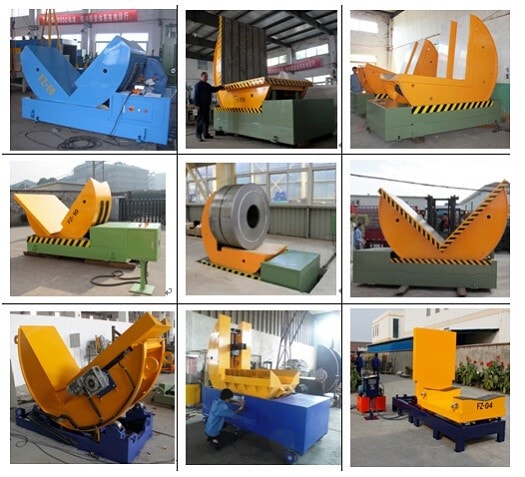

Hydraulic upender/tilter for steel coil

Steel coil transfer car
