Hose Wrapping Machine | Hose Packing Sloution

hose packing machine
FHOPEPACK providing different series hose coil wrapping machine used to hose coil, plastic pipe packaging, which is with highly efficiency and nice packaging for saving labor and material cost. It adopts packing material as PE film, paper, LLDPE, HDPE woven. The higher packing speed is upto 15sec/coil. There are different solution adopted to HDPE pipe, PVC PIPE...
Three types hose coil packing solution:
1. Vertical hose and pipe coil wrapper
2. Horizontal hose and pipe coil wrapper
3. Automatic hose and pipe coil wrapper
Currently Fhopepack manufacturing a full online of hose packaging line, pipe coil packaging...Pipe and hose wrapping machine can automatically coiling the machine, conveying, wrapping. Automatic coil bagging is available too. It saves the labor cost greatly. Fhope packaging also manufactures sealing machines for coil shrinking and wrapping.
a. Adopting world famous brands for main components.
b. Safe Guardrails equipped for object loading and unloading.
c. Inverter for adjusting Wrapping Ring speed and Rolls speed.
d. Different kinds of packing material can be using on machine.
e. Independent electrical cabinet and with trouble-shooting for safe operation.

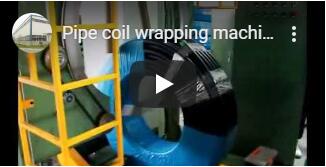

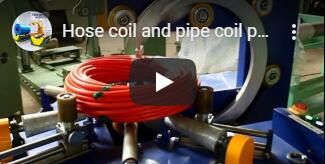

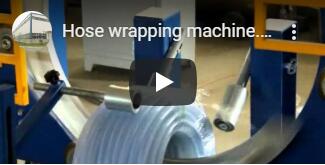

hose coil horizontal wrapping video vertical hose coil wrapping machine hose coil vertical wrapping machine video

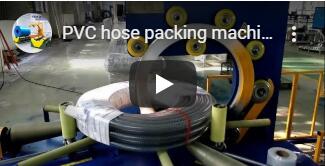

hose coil wrapping packing machine video vertical hose coil wrapping packing machienry horizontal hose wrapping machine
video of the coil wrapper for copper



Hose packaging machine

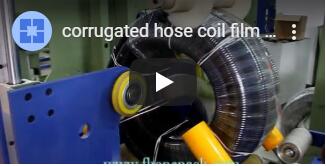

  • Corrugated hose stretch wrapping machine

    Corrugated hose stretch wrapping machineOur corrugated hose stretch wrapping machine is specifically designed to efficiently wrap light hose coils with stretch film. With a wrapping time of just 15-20 seconds, this high-speed yet delicate process ensures stable, attractive wrapping of lightweight coils. Rest assured, our machine handles this process reliably to meet al...

  • Light hose coil packing machine FPS-300H

    Light hose coil packing machine FPS-300HThe coil wrapping machine is equipped with a tension controller and a press-down device that efficiently wrap light and small hose coils as well as PVC pipe coils. It uses stretch film to provide excellent packaging and protection for the products....

  • Hose Coil packing machinery FPH-200N

    Hose Coil packing machinery FPH-200NOne hose coil packing machine save your four staff in wrapping!!!FPH Hose coil wrapping machine with packing speed upto 15-25sec/pcs for hose coil,pvc pipe,hdpe pipe...which can be with very efficiency and good wrapping for saving material and labor cost. This is a hose coil eyes straight wrapping machinery, which can be for smal...

  •  Hose wrapping machine FPH-300N

    Hose wrapping machine FPH-300NFPH-300 Hose coil wrapping machine, saves your four staff in corrugated hose wrapping!!!FPH coil stretch wrapper and equipment working for your film stretch wrapping...This is a hose coil eye vertical wrapping machinery, which is for small and light coils. ...

  • Hose Coil wrapping machinery FPH-400W

    Hose Coil wrapping machinery FPH-400WHose Coil wrapping machinery FPH-400 is mainly used to hose coil, plastic pipe packaging requirement, which is with highly efficiency and nice packaging for saving labor and material cost. This is a hose coil eye vertical wrapping machinery, which is for small and light coils.FPH Hose coil wrapping machinery with packing speed 15...

  • Hose Coil wrapping machinery FPH-500W

    Hose Coil wrapping machinery FPH-500WHose coil wrapper,pipe coil wrapper,hose pipe packing machine adopts streth film,HDPE,woven...is able to provide a nice anti moisture,anti dust package for plastic and rubber industry.This is a hose coil eye vertical wrapping machinery, which is for small and light coils. ...

  • horizontal hose coil packing machine FPCA-100

    horizontal hose coil packing machine FPCA-100A horizontal coil wrapping machine rotates hose, cable, or pipe coils 360 degrees to wrap them in stretch film or paper. The machine securely binds coils from end to end. By turning the coil and wrapping on a ring, the machine provides strong, full-circumference packaging to protect coils during storage or shipping....

  • Horizontal hose coil wrapping machine FPCA-200

    Horizontal hose coil wrapping machine FPCA-200This hose coil packing machine is designed for horizontal packing of soft coils. It provides excellent support to prevent deformation during the packing process. With a maximum width of 300mm, it can be customized to meet various packaging requirements for different types of soft coils....

  • Horizontal hose coil wrapping machine FPCA-300

    Horizontal hose coil wrapping machine FPCA-300The hose coil packing machine features a conveyor in the wrapping station which can be connected to an automatic coiler and downender for inline coil packing. This allows for automated and continuous packing of hose coils. The wrapping material tail is automatically tapped and secured by a device on the machine, eliminating the n...

  • Automatic hose wrapping machine line

    Automatic hose wrapping machine lineAutomatic hose coil packing line designed for corrugated hose coil, PVC pipe coil, PE pipe coil packaging.It is a horizontal type coil stretch wrapper for online packing by one operator. The control system is PLC&HMI. Automatic film feeder and cutter......

  • Hose coiling and strapping machine

    Hose coiling and strapping machineAutomatic hose/Pipe coiling and strapping machine and automataic pipe coiler for winding the HDPE PIPE, Corrugated coil packaging from automatic winding machine to stacking machine.. The automatic tube coiling& strapping machinery all conform to CE guidelines and have been designed using the latest technology and design criteria ...




Wihtout the hose coil packing machine solution, the packing procession will spending the main part of the manual effort in the hose pipe production. The extruder is running automatically 24 hours without stop, so it need the manaul or semiatuo coiling and packing the hose coil in 3 shift. That is trouble in the labor shortage area. Most of the hose factory using the semiauto hoe coil packing equipments in the coiling and wrapping. But some factory still using the manual packaging way.  One semiauto hose packing machine is able replce 2-4 peoples. By replacing the man work by enquipment helps to creat more benifit in the prodution. FHOPE providing the hose packing solution from hose length checking, hose coiling, winding , hose coil strapping, hose coil film wrapping and hose coil stacking on pallet. The packing machine can be semiauto or automatically at each step in packaging. Also, there are automation turn key project service to make the whole packaging procession automatically with Iot and MES system. So that the increasing the efficiency greatly between the extruder and stacking warehouse.





 FOUR VERSIONS OF THE HOSE AND PIPE COIL WRAPPING MACHINE YOU SHOULD KNOW

Automatic wire compacting and strapping line

6. Automatic Wire Compacting & Packing Line

It is  an innovative packaging solution designed to optimize handling and packing of wire with spools. This advanced system incorporates automatic compacting and strapping, spool removal, and wire coil packing, significantly reducing manual labor and forklift handling requirements.

Key Features:

  • Comprehensive solution: Streamlines wire compacting, strapping, spool removal, and coil packing processes.
  • Labor-saving: Replaces manual operations and forklift handling, enhancing efficiency and reducing labor costs.
  • Production integration: Connects seamlessly with wire drawing production lines for a fully automated workflow.
  • Enhanced safety: Minimizes risks associated with manual labor and forklift handling.
----------------

1. HOSE COIL PACKING IN HORIZONTAL WITH CONVEYOR IN&OUT FEEDING





hose coil packing machine photo Although the automatic hose coiler and strapping machine machine is at the earlier stage of the large scale application, the conveyor and automatic wrapping machine can be a good way to lowe the labour intensity. It helps to connect the winding machine with automatic hose coil infeeding, wrapping and out feeding.  By this ay the hose coil can by well positioning in the middle of the conveyor for suppoertive guider, and the coil can be holading properly in wrapping. With automatic packing material feeding and cutting, the packing solution is fully automatically.













FPH200-500N FPH200-500W FPS200H-300H FPCA100-300
