PE corrugated hose coil wrapping machine

This hose coil packing machine is designed for horizontal packing of soft coils. It provides excellent support to prevent deformation during the packing process. With a maximum width of 300mm, it can be customized to meet various packaging requirements for different types of soft coils.

Get Free Quote Watch Demo

CE Certified

ISO 9001

2 Year Warranty

Horizontal hose coil wrapping machine FPCA-200

98%

Efficiency Rate

2 Year

Full Warranty

Horizontal hose coil wrapping machine FPCA-200

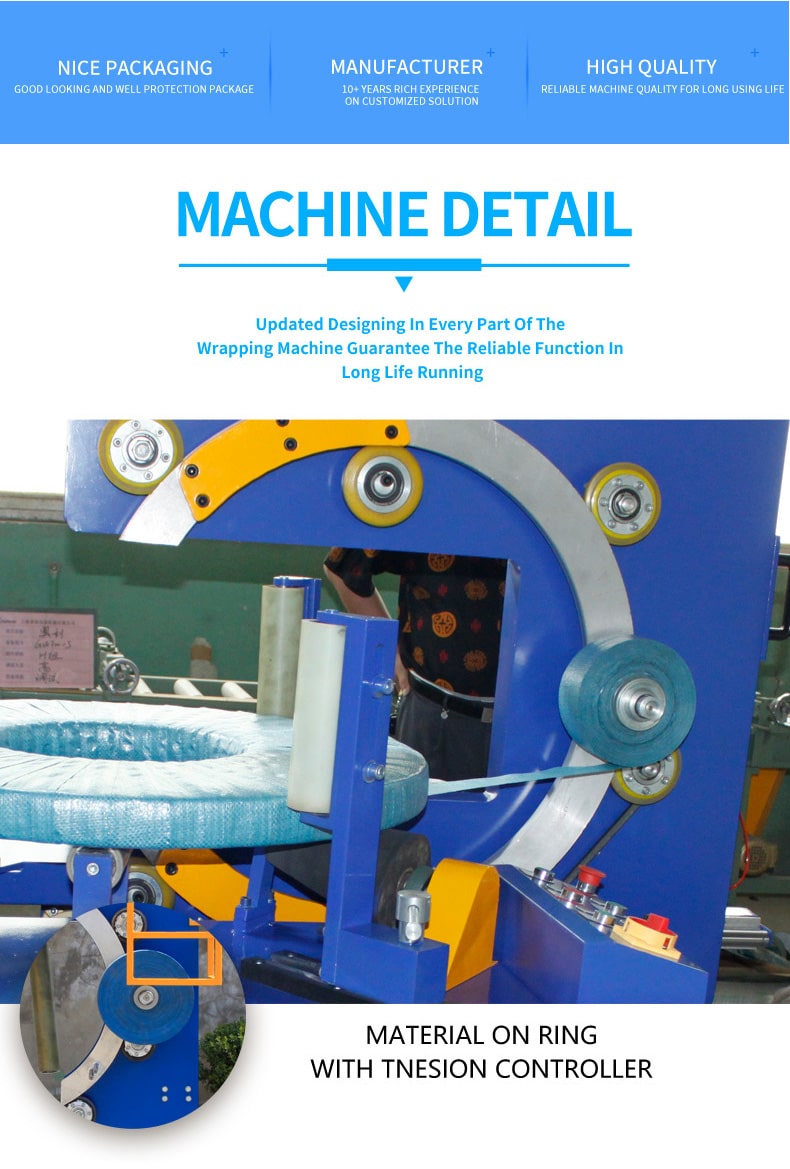

Visual Details

Click to enlarge

Horizontal hose coil wrapping machine FPCA-200 - Detail 2

Click to enlarge

Horizontal hose coil wrapping machine FPCA-200 - Detail 3

Click to enlarge

Horizontal hose coil wrapping machine FPCA-200 - Detail 4

Click to enlarge

See It In Action

Watch How It Works

Discover how our automated packaging solutions optimize your production line efficiency. This video demonstrates the seamless operation designed for maximum protection.

High Throughput

Up to 60 coils per hour

Consistent Quality

Every wrap meets spec

Request A Quote

The eye through type packing by stretch film for nice sealed hose coil package
The standard type machine designing and bulk production with stable quality.
Long using life with less simple maintain.

Didfferent versions semiauto hose coil wrap machine per different coil size, weight and packaging packaging material.

All the switchgear & Isolation Transformer, control hardware would be given by Fhope & is housed in panel.
All field wiring with Push Button Stations, Terminal Boxes, & Junction Boxes would be given.
All the Electrification with Field I/P Sensors, PRX, LS with Solenoids & other outputs are included in line.

Our qualification for reference:
*An ISO9001:2000 and CE certified company.
*Expert manufacturer with more than 18 years' experience in the coil packing field.
*Providing reliable and high-quality coil wrap machine.
*Providing custom-built hose packing machines according to special requirement.
*Providing update and on-time technical support.

*Long-life, reliable and easy operation.

Technical parameter


Machine Model	FPCA-200
ID of Coil	Φ200～Φ350mm
OD of Coil	Φ500-Φ650mm
Width	150～300mm
Weight	10-50kg
Main wrapping speed(high/low)	25-35sec/pcs
Max speed of ring	100r/Minute
Power supply	380V 60Hz 3P
Power consumption	2.0Kw
Packing material	Stretch film: OD:100-140mm ID:50mm Width:90mm Paper (optional) OD:100-450mm ID:50mm Width:90mm
Special requirement	Customized available
