Description:

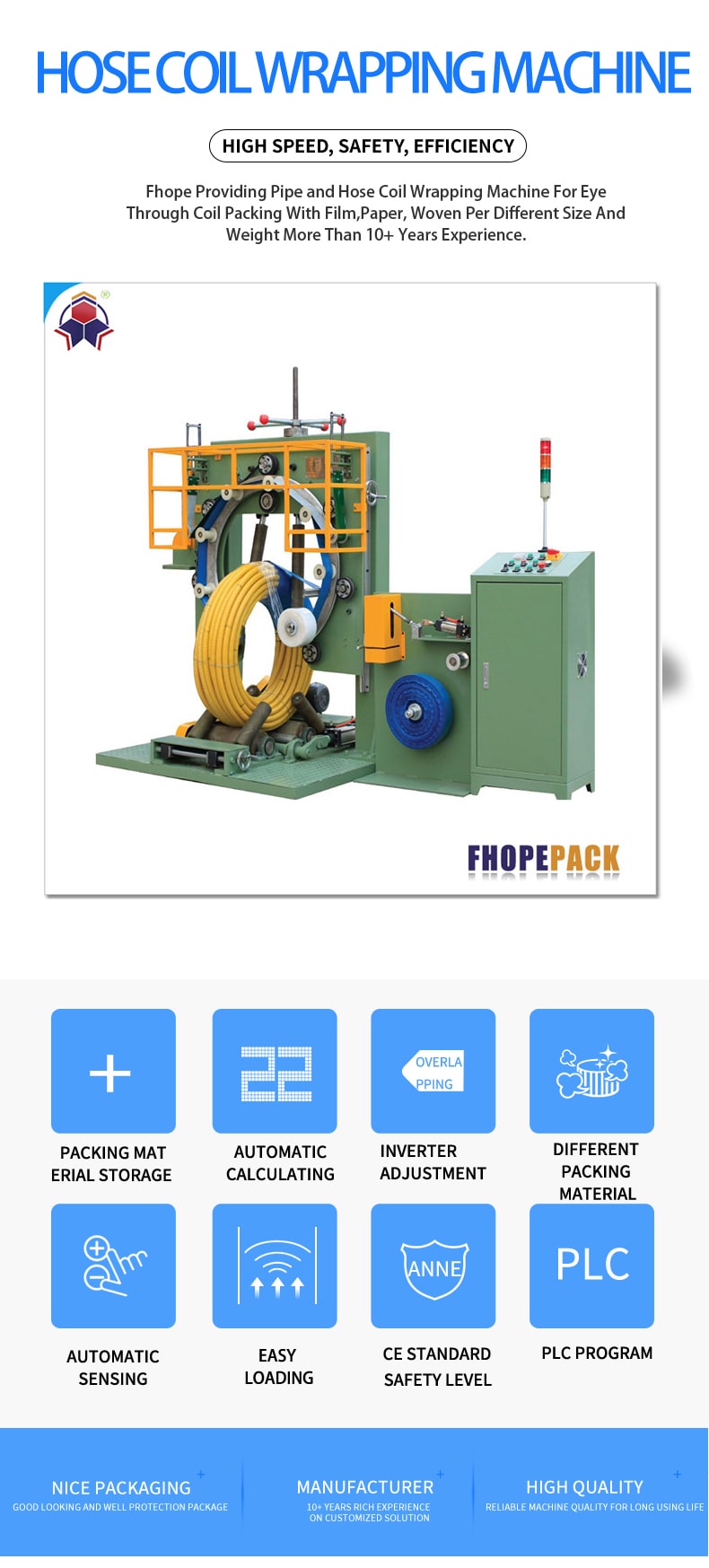

Hose Coil wrapping machinery FPH-400W is mainly designed to hose reel, plastic pipe coil packaging requirements that is efficient and beautiful packaging and saving labor and material costs.
This is a hose coil with the eyes of the vertical packing machine for coil width 100-400mm.

Features:
1. Many different packing material can be chosen.
2. "Reset" bottom to back original position.
3. Manual and automatic two switching modes.
4. Wrapping and supporting rolls can be adjusted by the Inverter.
5. Adjustable 20% - 90% overlaps to meet requirements for packaging.
6. Once wrapping finished, hose will be stopped automatically.
7. Safe operation guardrail, wrapping ring soft to start and stop.
8. Tension of hose coil be adjusted by circuit breaker.
9. Special brake used to avoiding folding of packing material.
12. Packing speed is 20-30 seconds per coil.
13. Friction be adjustable per requirements.

  =



Technical parameter

Machine Model	FPH-400W
ID of Coil	Φ300～Φ1250mm
OD of Coil	Φ700-Φ1500mm
Width	150～400mm
Weight	10-100kg
Main wrapping speed(high/low)	30-55sec/pcs
Max speed of ring	100r/Minute
Power supply	380V 60Hz 3P
Power consumption	1.5Kw
Packing material	Stretch film: OD:100-150mm  ID:50mm Width:90-120mm Paper/Woven/HDPE:  OD:200-450mm  ID:50mm  Width:90-120mm
Special requirement	Customized available
