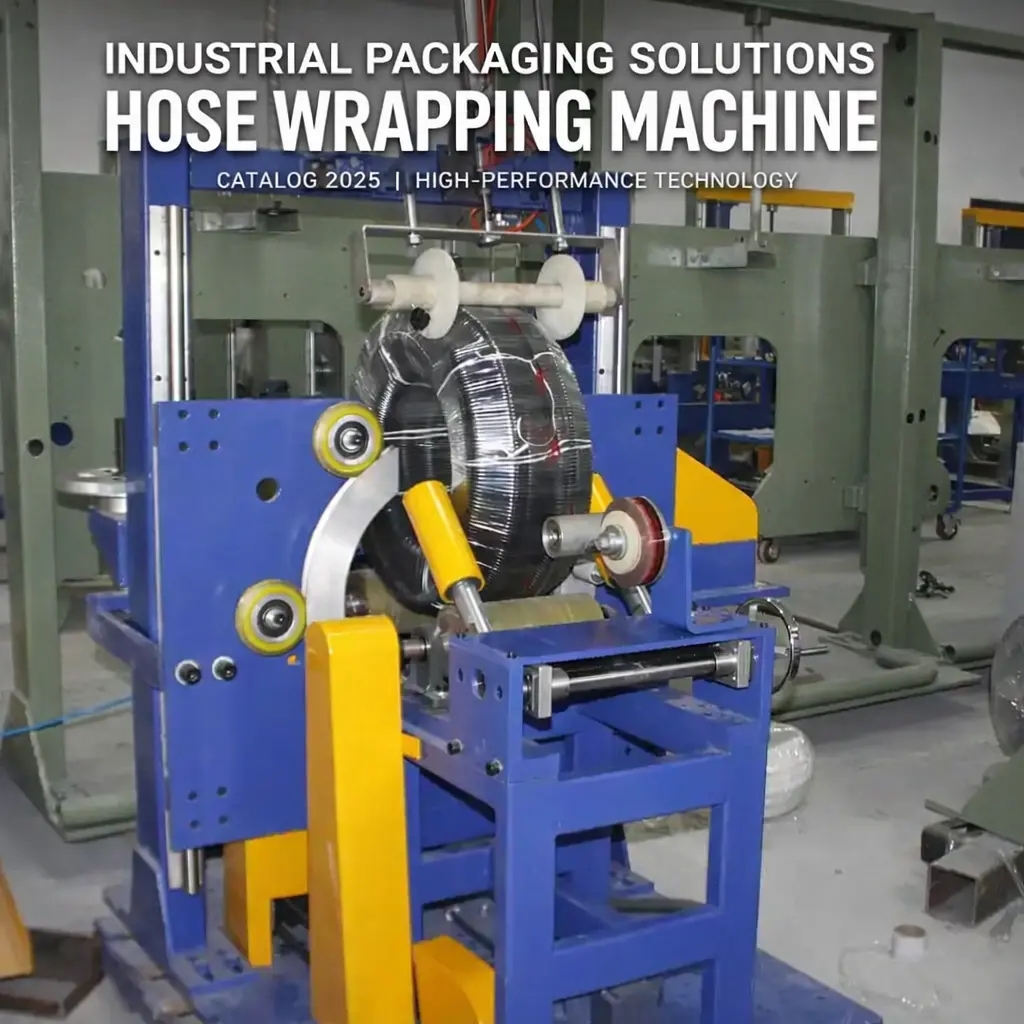

Corrugate hose stretch wrapping machine

Our corrugated hose stretch wrapping machine is specifically designed to efficiently wrap light hose coils with stretch film. With a wrapping time of just 15-20 seconds, this high-speed yet delicate process ensures stable, attractive wrapping of lightweight coils. Rest assured, our machine handles this process reliably to meet all of your packing needs.

Free Solution

Description:

This corrugated hose stretch wrapping machine is designed specifically for wrapping corrugated hose coils in plastic industries. It can be widely used to wrap the exterior of circular products such as hose coils, steel belts, and bronze belts.

The machine is a coil stretch wrapping equipment that is specially designed for light corrugated hose coils. It can wrap hose coils of different sizes at high speeds of up to 35 seconds per coil. The wrapping material, overlap rate, tension, and speed can be easily adjusted to meet different requirements. The machine offers both manual and automatic modes for flexibility. Safety features such as a guardrail protect the hose coils from damage during the wrapping process. With its fast throughput and customizability, this hose wrapping machine enables efficient packaging of corrugated hose coils.

Features:

1. World famous brands be adopted for machine main components.
2. Inverter adjust overlap of packing.
3. Packing tension be adjustable.
4. Many kinds packing material can be using.
5. Up and down supporting rollers be adjustable.
6. With Motor overload protection system.
7. Reset positioning system.
8. Wrapping Ring speed adjustable using inverter.
9. All supportive rolls moving speed adjustable through inverter.

Technical parameter


Machine Model	FPH-100
ID of Coil	Φ120～Φ550mm
OD of Coil	Φ300-Φ600mm
Width	150～300mm
Weight	2-50kg
Main wrapping speed(high/low)	20-35sec/pcs
Max speed of ring	110r/Minute
Power supply	380V 60Hz 3P
Power consumption	1.0Kw
Packing material	Stretch film: OD:60-140mm ID:50mm Width:50-90mm Paper (optional)
Special requirement	Customized available
