The requirement from customer:

Hi, I wish to receive quote and specs for an orbital wrapping machine to wrap waste bales size of the bale 1.5*1.5*2m , up to 600kg, shredded plastic and carton bales. capacity 10 bales per hour email. **************whatsapp ************ installation italy thank you br federico I’m interested in your product wooden and panel orbital wrap machine and horizontal stretch wrapping machine, I would like some more details. I look forward for your reply. Regards,

The reply to the customer:

The machine interest you is the orbital wrapper for four sides wrapping only. That means head and tail is opening to air that is normally not allowed for the bales packaging.

Following is the version for six sides wrapping which is the machine designed for bales wrapping.

The solution we supply:

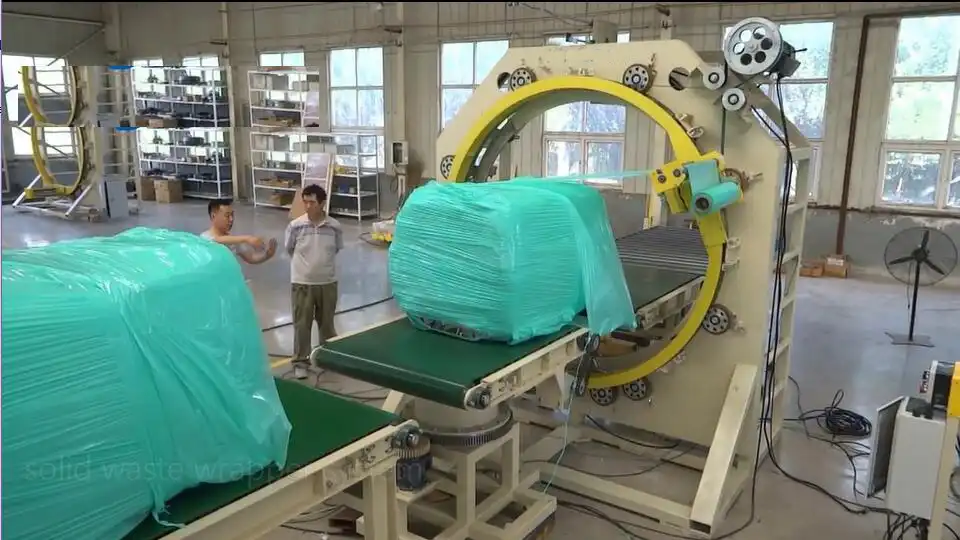

Bale wrappers

Bale wrappers

The parameter of the machine:

Package info 1500x150x2000mm
Max.Loading: 600Kg
Infeed conveyor 2500mm L×1700mmW
Outfeed conveyor 2500mmL×1700mmW
Material: LLDPE stretch film
Width: 200-500mm
OD: 100-250mm
ID: 75mm
Air 6~8kgf/cm2
Conveyor Speed: 1~12m/min
Ring speed: App.10-50r/min

Machine size: App. L9500 x W2200 x H2400mm
Power voltage: AC 380v,50Hz,3Phase
Control Power voltage ADC24V
