Customized horizontal orbital stretch wrapping machine manufacturer

Customized horizontal orbital stretch wrapping machine manufacturer with years of professional experience and continuous R&D, we have established worldwide sales network and won well-known clients

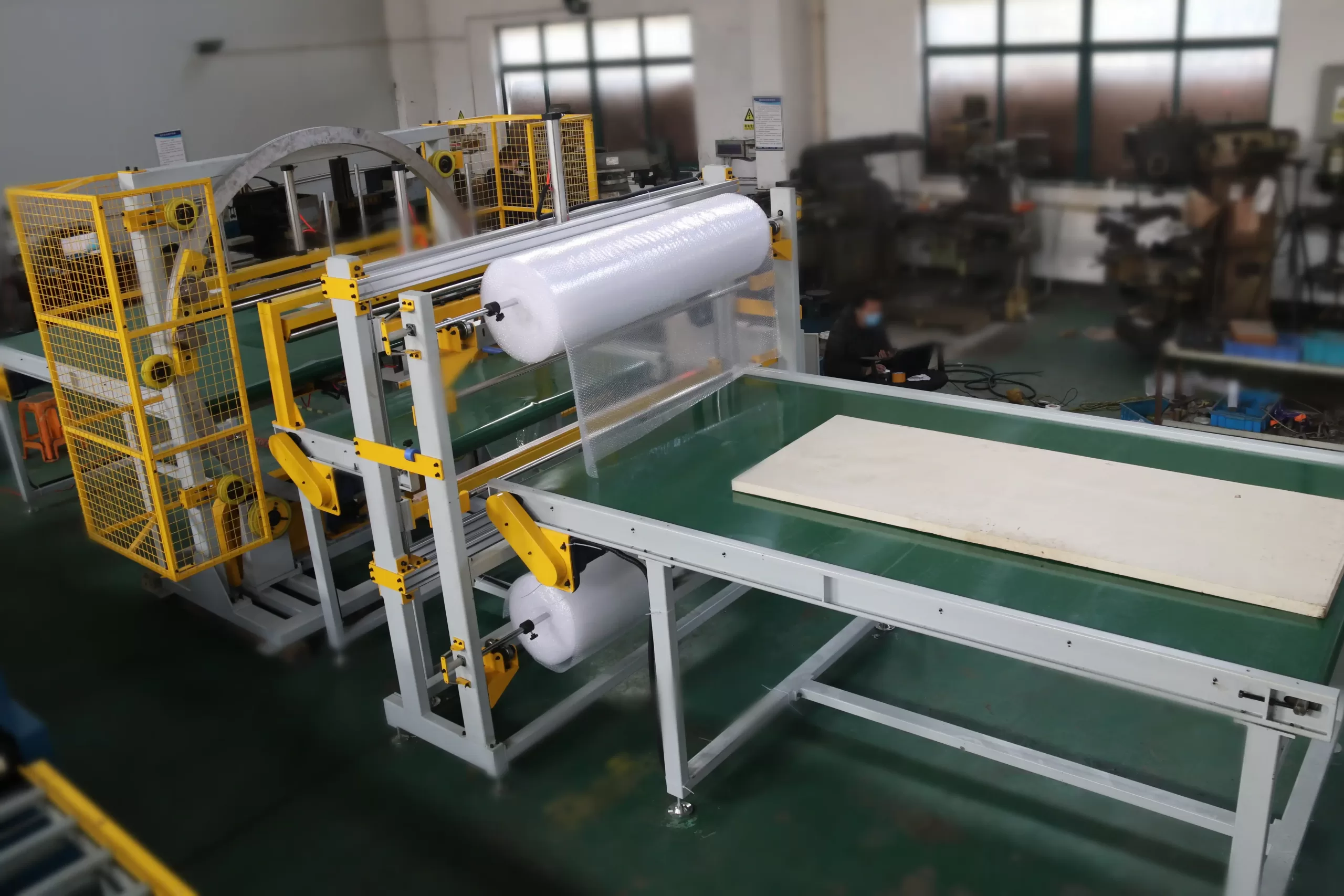

Orbital stretch wrapper with bubble film covering device

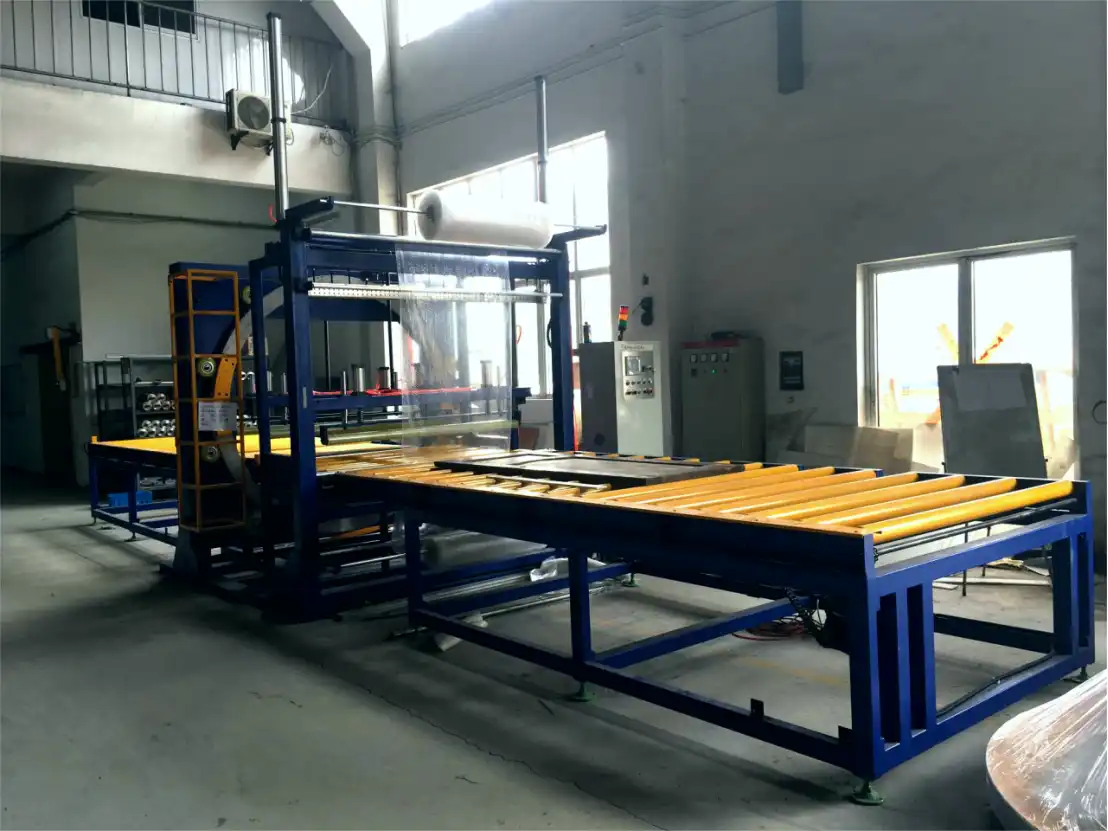

Orbital horizontal stretch wrapper with bubble film


1.    Automatic sealing station Features:
l   Adopts photo electricity for inducing the products for fix the position.
l   The sealing station can be connected with stretch wrapping station.
l   Two feed-in modes; auto/manual can be chosen.
l   Speed of conveyor adjustment by invertors.
l   Adopts bubble film… on rolls up and down, and the machine will seal other three sides automatically.
l   Constant temperature heat sealing and cutting system.
l   The sealing height is adjustable for different products
l   Sealing system: permanently heated seal bar with easy-exchangeable
  sealing blade without odorous, temperature controlled and detected
  by PLC.


1.    Technical Date of sealing part:
Control: PLC
Structure Material: Carbon steel
Packing Objects:
Length: 900-2400mm
Width: 200-1200mm
Height: 100-800mm
Weight: 20-100kg
Height of Working Table: app. 800mm
Conveyor speed: app. 4-9m/min
Packing Material: bubble film+stretch film
Sealing part power consumption: app.6.5KW
Power Supply: 230V, 3phase, 50Hz
Air Supply: 6~8kgf/cm2

a)    Length of the conveyor

Technical parameter:
Infeed conveyor 2000mm L×1400mmW
Outfeed conveyor 2000mmL×1400mmW
Material: LLDPE stretch film
Width: 150-300mm
OD: 100-250mm
ID: 50mm
Bubble film:
Width: 20-1300mm
Od: 50-600mm
  6~8kgf/cm2
Conveyor Speed: 1~9m/min
Ring speed: App.10-60r/min

Conveyor size: App. L4500 x W1600 x H900mm
Power output: about 3.0kw
Power voltage: AC 230v,50Hz,3Phase
Control Power voltage ADC24V

The bubble film orbital stretch wrapping  machine can be designed per different size packages.
