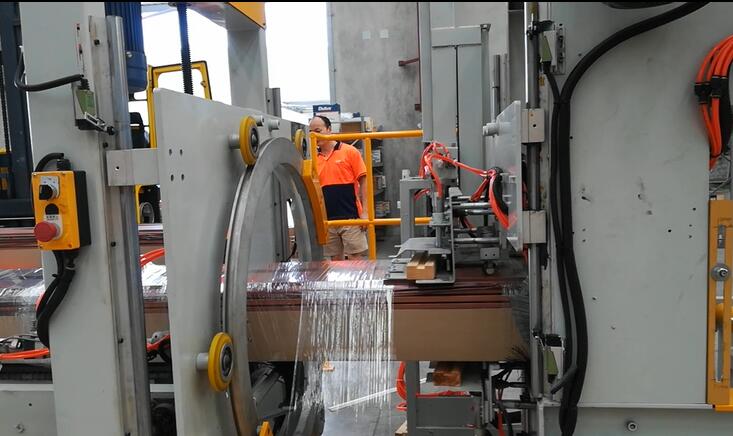

Horizontal orbital stretch wrapper with timber feeder and strapping machine

Our automatic orbital wrapping machine is designed to feed timber blocks and spacers at the top and bottom of the bundle, wrapping it tightly with stretch film. This machine is suitable for packing bars, stainless steel tubes, aluminum profiles, and more. With its advanced features and efficient operation, our automatic orbital wrapping machine provides a cost-effective and reliable solution for b

Get Free Quote Watch Demo

CE Certified

ISO 9001

2 Year Warranty

98%

Efficiency Rate

2 Year

Full Warranty

Horizontal orbital stretch wrapper with wooden feeding

Visual Details

Click to enlarge

Horizontal orbital stretch wrapper with wooden feeding - Detail 2

Click to enlarge

Horizontal orbital stretch wrapper with wooden feeding - Detail 3

Click to enlarge

Horizontal orbital stretch wrapper with wooden feeding - Detail 4

Click to enlarge

See It In Action

Watch How It Works

Discover how our automated packaging solutions optimize your production line efficiency. This video demonstrates the seamless operation designed for maximum protection.

High Throughput

Up to 60 coils per hour

Consistent Quality

Every wrap meets spec

Request A Quote

This is an automatic horizontal stretch wrapper machine, profile packing line specialized for long and straight products, such as profiles, bars, sheets, etc. It includes the fim covering device, sealer, timber feeding device and wrapping machinery. The wrapped package is well protected and sealed, and looks tidier. The machine can be connected to your existed production line, which plays a key role in your production procedure and is popular in modern packaging industry.

Packing requirements

Object: Aluminum profile
Packing requirement of the bundle: Bundling, Packing and Stacking

Parameter

Case bundle Space: Min.300x300x6500mm Max.500x500x6500mm
Air supply: 6-8 bar
Operator: 2 people (for aluminum profile infeeding)

Machine is designed with a compact steel frame. Replacement of wrapping material is carried out quickly and easily (less one minute). Profiles are drawn through the machine by a series of rollers which open and close automatically, allowing bundles with different dimensions to pass through automatically without stopping the machine. The ring rotates and holds the roll of wrapping film which is supported by a mandrel with specially clutch designed to maintain the tension constant until the roll is finished.

The speed is regulated by means of an electronic inverter controlled. An automatic device senses when the roll has run out or should the wrapping material tear, bringing the machine to a complete stop and warning the operator. Machine designed to operate in “start and stop” mode with a blade cutting the wrapping material automatically at the end of each wrapping cycle. The strapping times can be set per your needs.
