Ultimate Guide to Cable Coil Shrinking Machines: Features, Benefits, and Selection Tips

In today’s fast-paced industrial landscape, efficient and reliable packaging solutions are critical for maintaining productivity and product quality. For industries dealing with cable coils, the cable coil shrinking machine has emerged as a game-changer. Designed to automate and streamline the packaging process, this machine ensures secure, professional, and aesthetically appealing results. This article dives deep into the features, benefits, and technical specifications of automatic cable coil shrinking machines, while offering actionable insights for businesses seeking optimal packaging solutions.

What is a Cable Coil Shrinking Machine? (Expanded)

A cable coil shrinking machine is a sophisticated industrial packaging system designed to automate the final stages of cable coil preparation, ensuring secure, durable, and visually appealing packaging. This machine plays a pivotal role in modern manufacturing and logistics, particularly in industries such as electrical engineering, telecommunications, and automotive, where coiled cables must be protected during storage, transport, or retail display.

Core Functionality

After cables are coiled and secured by automated coiling and strapping equipment, the shrinking machine takes over to encapsulate the finished coils in heat-activated shrink film. The process begins by conveying the coiled cables into the machine, where a specialized film—most commonly POF (Polyolefin) folding film—is wrapped around the product. The film is then heated, causing it to contract tightly around the coil, forming a tamper-resistant, weatherproof barrier. This seamless integration into production lines allows for uninterrupted, high-speed packaging, often achieving rates of 5–10 coils per minute, depending on the model and coil size.

Key Components and Workflow

The machine operates through a series of synchronized steps:

1. Film Feeding: An automatic film feeding system, guided by sensors, dispenses the POF film to match the coil’s dimensions.
2. Wrapping: The film is precisely wrapped around the coil using either L-type or cuff-type methods (explained below).
3. Sealing: A heat-sealing mechanism bonds the film edges, creating a airtight seal.
4. Shrinking: The wrapped coil passes through a heated tunnel or chamber, where controlled temperatures (typically 150–200°C) activate the film’s shrinking properties.
5. Cooling: Integrated cooling systems solidify the film’s shape, ensuring a smooth finish.

Two Primary Shrink-Wrapping Methods

To accommodate diverse coil shapes and industry requirements, cable coil shrinking machines offer two distinct packaging techniques:

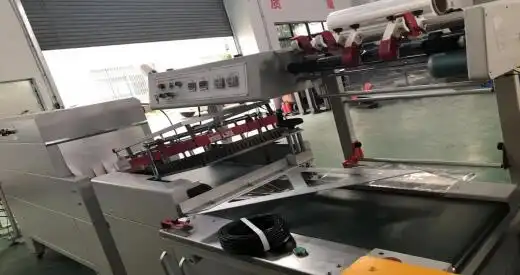

1. L-Type Full-Size Shrink Packaging

This method is ideal for uniformly shaped coils, such as standard electrical cables or wires. The machine wraps the entire coil in a single piece of film, creating a seamless, full-body cover. Benefits include:

• Complete Protection: The film encases the coil’s top, sides, and bottom, shielding it from dust, moisture, and abrasion.
• Professional Appearance: The smooth, wrinkle-free finish enhances brand presentation for retail or B2B shipments.
• Efficiency: Suitable for high-volume production due to its rapid cycle time.

2. Cuff-Type Shrink Packaging

Designed for irregularly shaped or oversized coils, this technique focuses on securing the coil’s edges while leaving the central area partially exposed. A “cuff” of film is formed around the coil’s perimeter, offering:

• Flexibility: Accommodates coils with protrusions, connectors, or non-standard geometries.
• Material Savings: Uses less film compared to full-wrap methods, reducing costs.
• Easy Access: Allows partial visibility or handling of the coil without removing the entire wrap.

Why POF Film?

POF folding film is the material of choice for most cable coil shrinking machines due to its unique properties:

• Durability: Resistant to punctures and tears, even under tension.
• Clarity: Provides a glossy, transparent finish that showcases product details.
• Eco-Friendliness: Free of chlorine and harmful chemicals, making it recyclable and safe for workers.
• Low Shrink Temperature: Requires less energy to activate, aligning with energy-efficient machine designs.

Integration with Automated Systems

Modern cable coil shrinking machines are engineered to function as part of a fully automated production line. They sync with upstream equipment (e.g., coiling and strapping machines) and downstream conveyors, enabling a “hands-off” workflow. Advanced models feature PLC (Programmable Logic Controller) systems and HMI (Human-Machine Interface) panels, allowing operators to adjust settings like film length, temperature, and speed with minimal training.

Industries and Applications

These machines are indispensable in sectors requiring robust cable packaging:

• Electrical Manufacturing: Protects copper wires, fiber optic cables, and power cords.
• Telecommunications: Ensures network cables arrive undamaged at installation sites.
• Automotive: Safeguards wiring harnesses during assembly and shipping.
• Renewable Energy: Packages solar panel or wind turbine cables for harsh environments

Advantages of Using a Cable Coil Shrinking Machine

1. Enhanced Productivity: With speeds of 5–10 coils per minute, the machine drastically reduces packaging time compared to manual methods.
2. Cost Efficiency: Automated film feeding and adjustable settings minimize material waste.
3. Superior Protection: Tight, tamper-proof seals safeguard coils from environmental factors.
4. Professional Aesthetics: Smooth, wrinkle-free finishes enhance brand credibility.
5. Low Maintenance: Heavy-duty construction ensures durability for 24/7 operations.

How to Choose the Right Machine for Your Needs

When selecting a cable coil shrinking machine, consider these factors:

1. Production Volume: High-speed models (10 pieces/minute) suit large-scale operations.
2. Coil Dimensions: Ensure the machine accommodates your maximum coil OD and height.
3. Energy Consumption: Opt for recirculation heating systems to cut long-term costs.
4. Safety Compliance: Verify guardrails, emergency stops, and certifications.
5. After-Sales Support: Choose suppliers offering maintenance training and spare parts.

Conclusion

Investing in a cable coil shrinking machine is a strategic move for businesses aiming to boost efficiency, reduce costs, and deliver flawless products. With features like PLC controls, adjustable settings, and energy-saving mechanisms, these machines are indispensable for industries ranging from electrical manufacturing to telecommunications.

By understanding the technical specifications and aligning them with your operational needs, you can select a machine that not only meets but exceeds your packaging expectations. Stay ahead of the competition by embracing automation and precision in your workflow today!
