The solution for board pallet changing depends on your factory layout and handling method, with two main options available: the off-line turning machine and the online turning machine. Each method is tailored to meet specific needs based on space constraints and workflow efficiency.

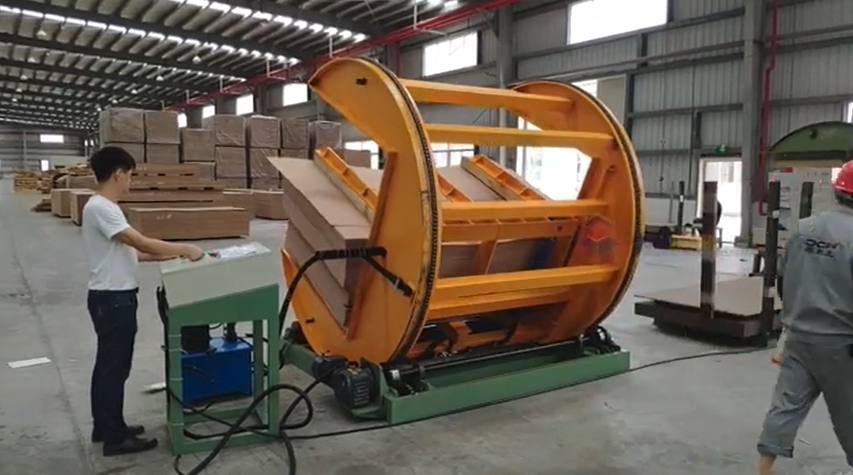

1. Off-line Board Turning Machine

The off-line board turning machine is a standalone device, ideal for facilities where pallet handling is performed separately from the main production line. In this process, a forklift is typically used to load and unload pallets, allowing for a more flexible and controlled pallet exchange. The typical operation steps include:

• Loading with the Old Pallet: The forklift places a load on the turning machine, still on the old pallet.
• Adding the New Pallet on Top: Once the load is securely positioned, a new pallet is placed directly on top of the load.
• 180-Degree Turning: The machine then rotates the entire load and both pallets by 180 degrees, effectively inverting the position of the load.
• Removing the Old Pallet: After the turn, the old pallet, now on top, can be easily removed, leaving the load positioned on the new pallet.

This off-line system allows for high flexibility and enables precise control over each pallet change, as operators can manage the sequence according to specific requirements. Off-line pallet turners are particularly useful when pallet changing needs to occur at a different pace or location from the main production flow.

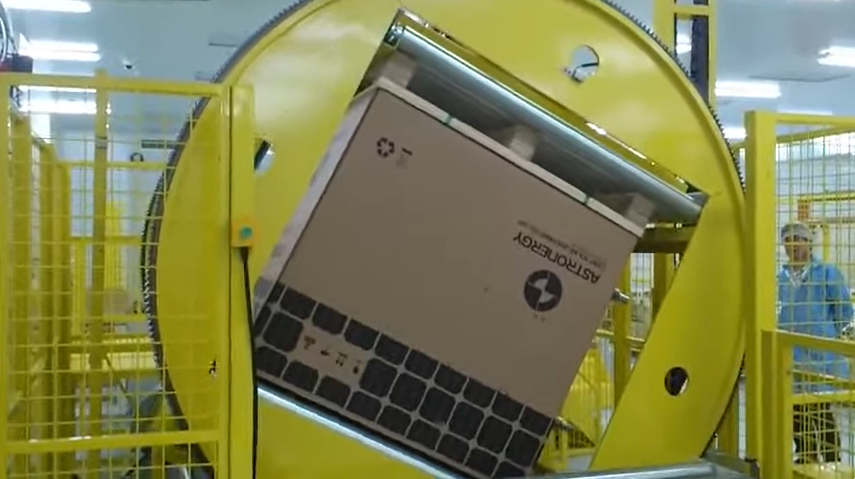

2. Online Board Turning Machine

The online board turning machine is designed for continuous, integrated operation within the production line. It automates the pallet changing process, making it ideal for high-volume facilities where efficiency and speed are critical. This solution minimizes manual handling and optimizes throughput. The steps for online handling are as follows:

• Loading with the Old Pallet on a Conveyor: The load arrives on the production conveyor, already positioned on the old pallet.
• Adding the New Pallet on Top: A new pallet is automatically placed on top of the load as it enters the turning machine.
• Pressing and Turning: Inside the turning machine, the load is securely pressed and rotated by 180 degrees.
• Unloading from the Turning Machine: The load, now flipped with the new pallet at the bottom, exits the turning machine.
• Removing the Old Pallet: The old pallet, now on top, is either manually or automatically removed, leaving the load ready for the next stage in the production line.

The online board turning machine is ideal for large-scale operations where continuous handling is essential, as it reduces the need for manual intervention and aligns with automated conveyor systems for seamless integration. This system is beneficial for facilities that require fast, uninterrupted pallet changes to maintain production flow efficiency.

Both solutions provide effective ways to streamline pallet changing, with off-line machines offering more flexibility for varied tasks and online machines enhancing automation in high-capacity settings.
