Fully Automatic pipe coiler machine --FHOPE

An automatic pipe coiling and strapping machine is a specialized handling equipment that is used to coil and strap pipes for various purposes, such as for storage, transportation, or packaging. These machines are designed to be highly efficient and can save a significant amount of labor compared to manual coiling and strapping processes

Get Free Quote Watch Demo

CE Certified

ISO 9001

2 Year Warranty

Fully Automatic pipe coiler machine FCL-Y1200

98%

Efficiency Rate

2 Year

Full Warranty

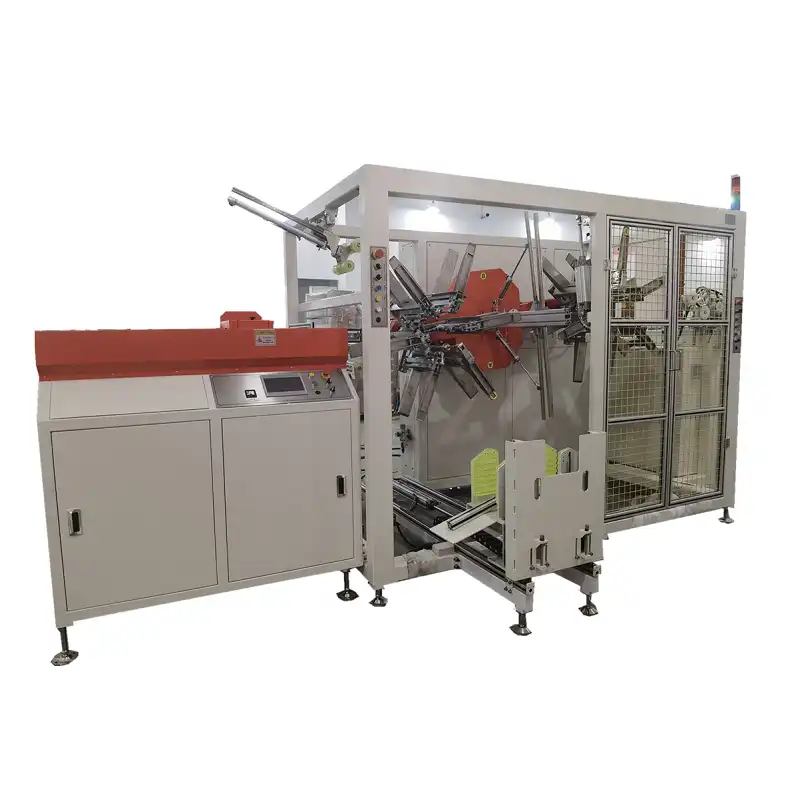

Fully Automatic pipe coiler machine FCL-Y1200

Visual Details

Click to enlarge

Fully Automatic pipe coiler machine FCL-Y1200 - Detail 2

Click to enlarge

Fully Automatic pipe coiler machine FCL-Y1200 - Detail 3

Click to enlarge

Fully Automatic pipe coiler machine FCL-Y1200 - Detail 4

Click to enlarge

See It In Action

Watch How It Works

Discover how our automated packaging solutions optimize your production line efficiency. This video demonstrates the seamless operation designed for maximum protection.

High Throughput

Up to 60 coils per hour

Consistent Quality

Every wrap meets spec

Request A Quote

Fully Automatic pipe coiler machine FCL-Y1200

Applications:
This is an automatic pipe coiler machine that specializes in vertical coiling and strapping. This solution saves a lot of labor cost and increases production efficiency. The machine is popular for the manufacturer who want to automation the extruding system with warehouse.

This is a vertical pipe coiling and strapping machine, which is specialized for coiling per pipe length setting and eye through strapping pipes coil. It makes a good shape of the pipe coils in uniform coil. Compares to the semiauto equipment, one one people required for handling the 5-10 extruders. The machine was well tested by the 60+ set on the pipe manufacturer.

Specifications:
Standard configuration listed below. Please contact our sales representative for other configuration.

Packing process:
A. Online Pipe in-feeding
B. Pipe through the tensioner and counter
C. Automatic feeding the pipe to coiling station.
E. Automatic layer making and coil making.
F. Automatic cutting the pipe while pipe length reach to the setting
G. Holding the pipe coil and turning 180 degree .
H. Automatic strapping 4 /6straps per setting.
I. Pushing out the strapped coil.
J. Coiler turning 180 degree for re-coiling.

Technical data:

Pipe coil size	Pipe OD: 16-32mm, ID:400- 540mm，OD:650-1 150mm , width:200-320mm weight: 10-40kg
Coil feed style mode	Hold coil type
Coiling speed	Max.70m/min
Strap position	4/6 straps
Strap speed	14- 1 9sec/strap
Strap material	PP strap Width: 10mm Thickness:0.6-0. 8mm
