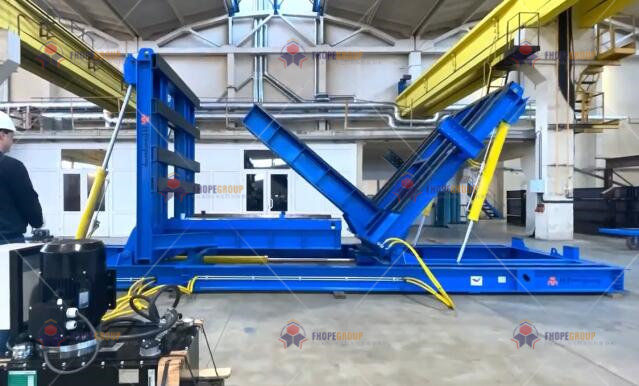

20-Ton Industrial Steel Sheet 180° Turning Machine

Executive Summary: This custom 20-ton horizontal metal sheets 180 degree turning machine optimizes heavy plate handling. Designed for plates up to 300mm thick and 6,000mm long, this steel sheet 180 degree upender integrates with magnet loading to eliminate manual risk and boost efficiency in milling and horizontal cutting workflows.

Get Free Quote Watch Demo

CE Certified

ISO 9001

2 Year Warranty

20-Ton Industrial Steel Sheet 180° Turning Machine

98%

Efficiency Rate

2 Year

Full Warranty

20-Ton Industrial Steel Sheet 180° Turning Machine

Visual Details

Click to enlarge

20-Ton Industrial Steel Sheet 180° Turning Machine - Detail 2

Click to enlarge

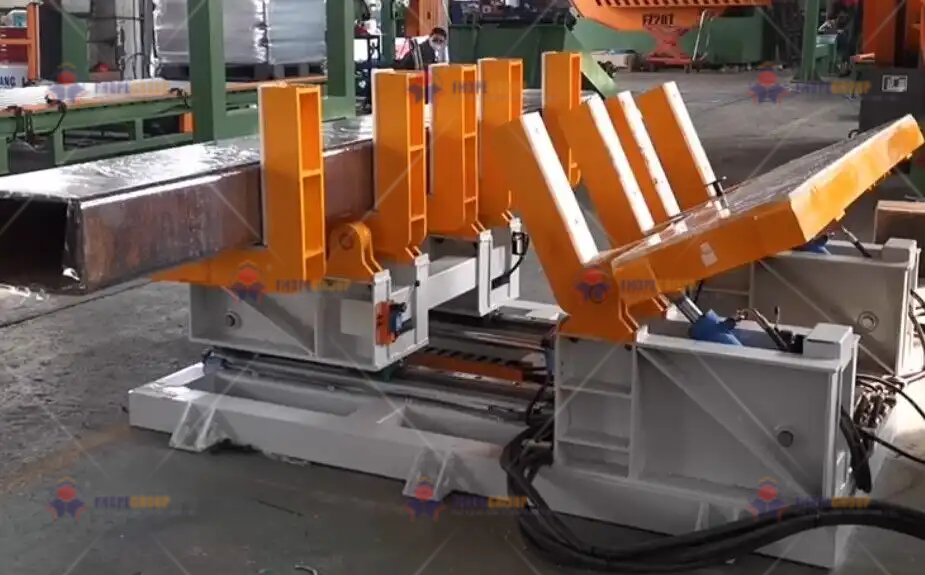

20-Ton Industrial Steel Sheet 180° Turning Machine - Detail 3

Click to enlarge

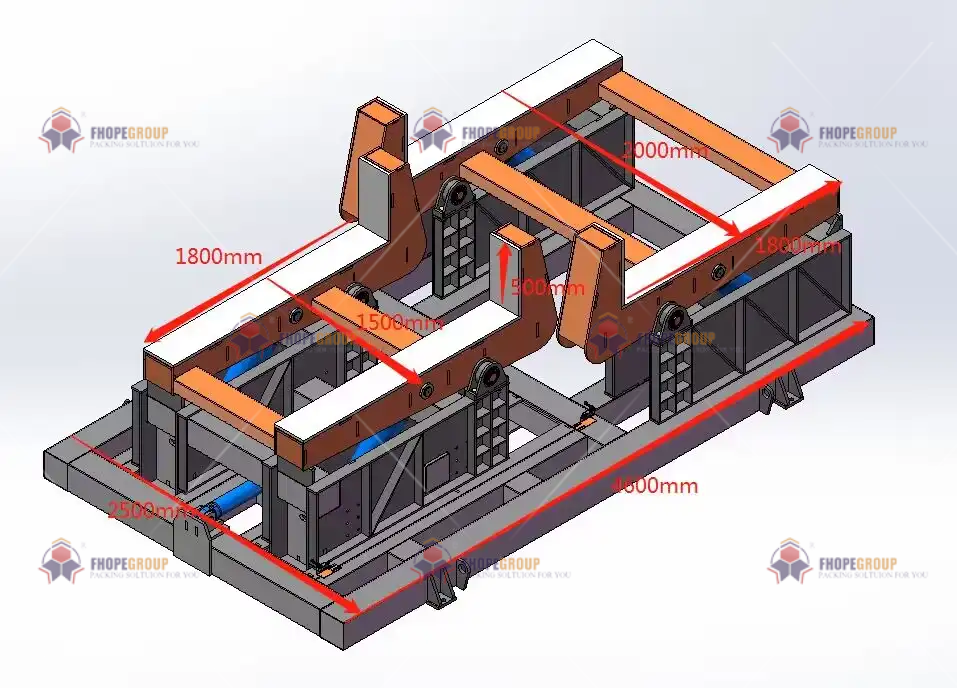

20-Ton Industrial Steel Sheet 180° Turning Machine - Detail 4

Click to enlarge

See It In Action

Watch How It Works

Discover how our automated packaging solutions optimize your production line efficiency. This video demonstrates the seamless operation designed for maximum protection.

High Throughput

Up to 60 coils per hour

Consistent Quality

Every wrap meets spec

Request A Quote

Industrial Case Study

20-Ton Industrial Steel Sheet
180° Turning Solution

Optimizing safety and throughput for a leading European industrial handling provider in heavy-duty metal processing.

Background

The Challenge: Precision Handling of Heavy-Duty Plates

In the heavy-duty metal processing industry, handling massive steel plates—reaching thicknesses of 300mm and weights of 20 tons—presents significant safety and efficiency challenges.

The client required a robust system capable of flipping horizontal metal sheets to facilitate double-sided milling and cutting operations. Traditional crane-based flipping was hazardous, time-consuming, and risked material damage.

Technical Requirements

Maximum Load 20 Tons
Thickness Range 10mm – 300mm
Width Range 1,000mm – 2,500mm
Length Range 1,000mm – 6,000mm

Innovation

Technical Solution & Architecture

Adaptive Width Adjustment

Machine utilizes a movable table design. The tables move forward/backward to align with the center of gravity, ensuring stable support for sheets from 1m to 2.5m in width.

"Double Table, Eight Arm"

Equipped with 8 heavy-duty reinforced arms across dual tables. This configuration distributes 20-ton pressure evenly, preventing plate deformation during rotation.

Workflow Integration

Optimized for magnet loading and horizontal cutting synergy. Directly feeds flipped plates into milling machines, reducing idle time by over 60%.

Technical Specifications

Equipment Type	180° Industrial Upender / Turnover Machine
Rated Capacity	20 Tons
Plate Range (L x W)	6,000mm x 2,500mm (Adjustable)
Drive System	Heavy-duty Hydraulic/Mechanical Synchronized

Outcomes

Safety-First Environment
with Significant Throughput Gain

"By implementing this machine, the facility eliminates manual flipping hazards and plate damage risks. Investment offers high ROI through reduced labor costs."

Professional Note

60% Reduction in
Idle Time

0% Material
Damage Rate
