Aluminum Jumbo Coil Stretch Wrapping Machine

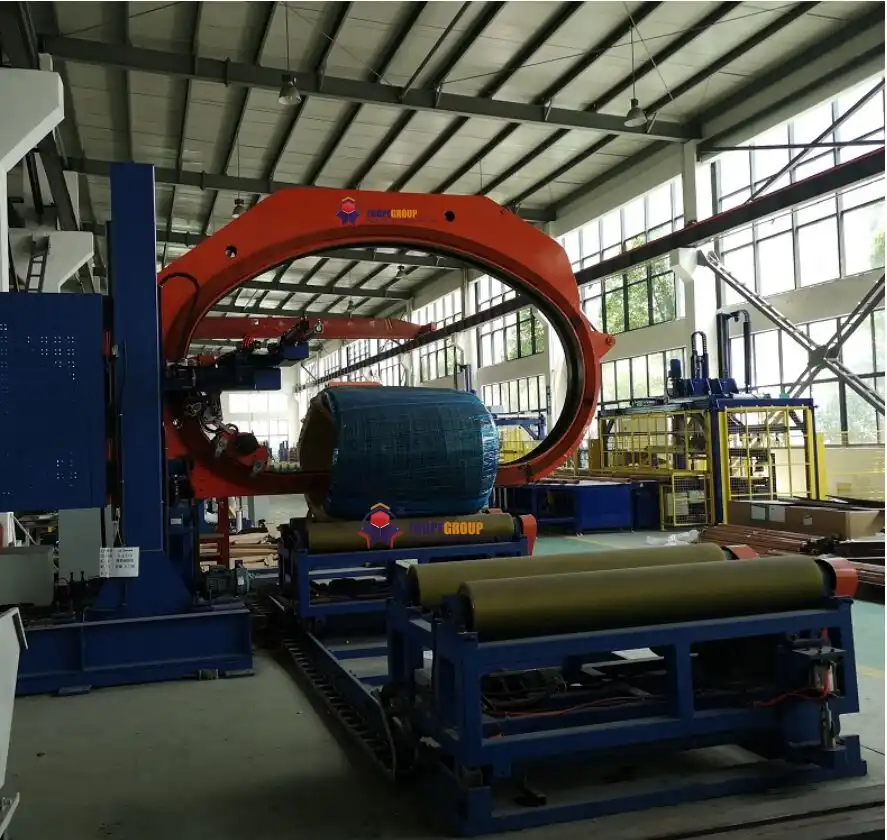

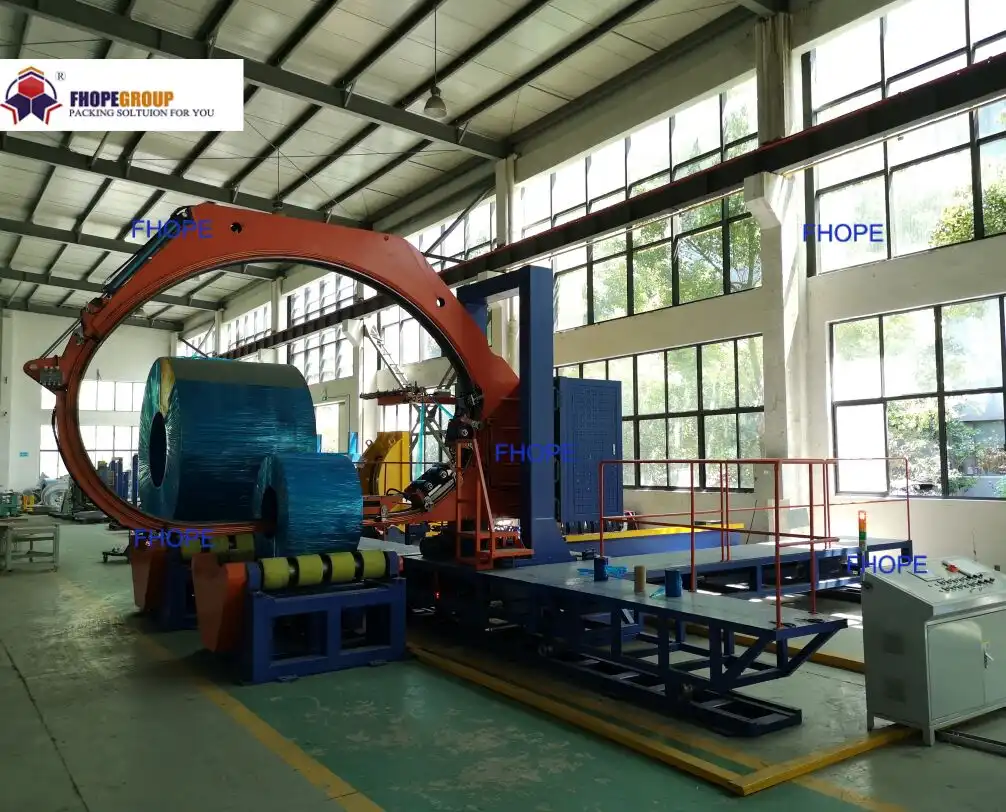

This aluminum jumbo coil stretch wrapper is an automatic packing system which composed ofblocker roller stations, guide rail, main stretch wrapper machine, trolley, hydraulic system, shuttle, packing material release storage station, U-type orbital, automatic mechanical hand, signal detection system, electric circuit system, electric cabinet and etc.

Aluminum master steel coil wrapper
Aluminum master steel coil wrapper

Aluminum Jumbo Coil Stretch Wrapper

Fully Automated Solution for Large Aluminum Coil Packaging

The FHOPE Aluminum Jumbo Coil Stretch Wrapper is a high-performance, fully automated packaging system engineered to handle large aluminum coils with precision and efficiency. Designed for integration into modern coil handling lines, this system provides reliable, high-speed wrapping to protect coil surfaces during storage and transportation.


coil stretch master wrapper

System Overview

This automatic packing system includes the following core modules:

  • Blocker Roller Stations – for secure coil positioning and buffering

  • Guide Rail System – ensures accurate movement and alignment

  • Main Stretch Wrapper Machine – core orbital wrapping mechanism

  • Motorized Trolley & Shuttle System – automated coil transport between stations

  • Hydraulic System – for positioning and lifting operations

  • U-Type Orbital Wrapping Arm – for high-tension film application

  • Packing Material Release & Storage Station – keeps film tension and feed stable

  • Automatic Mechanical Hand – for film clamping and cutting

  • Signal Detection System – for safety and operation verification

  • Electric Cabinet & Control Circuits – Siemens-based PLC system for intelligent automation

This setup allows seamless wrapping of aluminum coils up to jumbo sizes, minimizing manual intervention and reducing packaging time per unit.

How It Works – Operation Workflow

  1. Pre-Check & Initialization
    Ensure the machine is in standby mode with no fault indicators. The work area must be free of obstructions and potential hazards.

  2. Coil Loading
    Place the aluminum coil precisely at the center of the blocker roller station. Misalignment may affect wrapping precision or cause collisions during transport.

  3. Parameter Setting
    Access the touch-screen control panel to select predefined wrapping recipes or input custom parameters such as film tension, overlapping rate, and number of layers.

  4. Film Loading
    Confirm that the stretch film is sufficient and correctly installed. The film should be properly tensioned and secured in place for consistent wrapping.

  5. Station Selection & Automatic Orientation
    Select the desired blocker roller station (e.g., “Automation A”) under Auto Mode. The machine will self-navigate to the specified station using guided rail logic.

  6. Alignment & Verification
    After positioning, verify that the shuttle aligns with the coil center. Ensure unobstructed passage for the orbital arm to avoid impact with the coil or frame.

  7. Initiate Wrapping
    Step away from the operation zone. Press the “Start” button to initiate the wrapping cycle. The machine will follow the pre-set parameters autonomously.

  8. Orbital Wrapping Cycle
    The orbital wrapper wraps the coil with plastic stretch film in a uniform pattern, securing the product tightly while avoiding material waste.

  9. Film Cutting & Clamping
    Upon completion, the mechanical hand automatically cuts and clamps the film, ensuring a clean, secure finish.

  10. Station Rotation
    Confirm that the next coil and station are ready. Select the next blocker roller station and repeat the process for uninterrupted wrapping cycles.

Key Advantages

  • Automation-Driven Efficiency: Eliminates manual handling, reducing labor costs and safety risks.

  • Consistent Wrap Quality: Ensures uniform film tension and overlap, critical for protecting high-value aluminum surfaces.

  • Heavy-Duty Design: Built for high-load aluminum coils in industrial-scale production.

  • Safety First: Integrated sensors and real-time diagnostics reduce the risk of collision or misalignment.

  • Scalable Integration: Adaptable for various coil sizes and compatible with upstream/downstream logistics systems.


cold roll steel coil packing machine

Operation Workflow

  1. Pre-Check & Initialization

  2. Coil Loading

  3. Parameter Setting

  4. Film Loading

  5. Station Selection & Automatic Orientation

  6. Alignment & Verification

  7. Initiate Wrapping

  8. Orbital Wrapping Cycle

  9. Film Cutting & Clamping

  10. Station Rotation for Next Coil


Technical Parameters

Parameter Specification
Coil Outer Diameter (OD) 800 mm – 1800 mm
Coil Width 1000 mm – 2000 mm
Coil Weight 5 – 30 metric tons
Stretch Film Material Plastic film / stretch film
Film Width Range 150 mm – 250 mm
Packing Speed 10 coils per hour
Time per Coil Wrap 4.0 – 4.5 minutes
Number of Cradles 2 (1 for buffering, 1 for packing)
Control System Siemens PLC
Operation Modes Automatic & Manual
Electrical Components Integrated in a central electric cabinet
Signal Detection Full safety and object detection system
Shipping Container Requirement 2 × 40-foot containers
Installation Method Modular installation via drawings & videos
On-Site Support (optional) 2 engineers × 15 days
