FPSH-B Series: Board Shrink Wrap Machine


board packing machine & shrinking machine

FPSH-B100 board sealing and shrinking machine





FPSH-B100 is a automatic shrinking machine for profile, board, window, door...with one side sealing and full sides packaging,... which is with highly efficiency and nice packaging for saving labor and material cost.


Technical Features:


1.     It can be combined with an automatic production line for automatic shrink wrapping, which including feeding the packing material, sealing, material recover…

2.     Full sides shrinking packaging

3.     Adopts photo electricity for inducing the products for fix the position.

4.     Two feed-in modes, auto/manual can be choosing,

5.     Adopts PE or POF film on rolls, and the machine will seal other three sides automatically.

6.     According to different collocations for the machine and different products

7.     Constant temperature heat sealing and cutting system is suitable for PE. PVC. POF etc, industrial standard shrink films.

8.     The sealing width is adjustable for different products

9.     The front feed in systems speed is adjustable, combines a worktable at the end of the tunnel, makes whole machine highly automatic, it runs automatically without an operator comes true.

10.   Hi-speed hot air circulating shrink tunnel.

11.   Sealing system: permanently heated seal bar with easy-exchangeable sealing blade without odorous, temperature controlled and detected by PLC



Technical Date


1.Sealing part

Control: PLC

Structure Material: Carbon steel

Packing Objects:

Length: 800-4000mm

Width: 700-1200mm

Height: 20-300mm

Height of Working Table: app. 800mm

Conveyor speed: app. 4-9m/min

Packaging Type: Full packaging

Packing Material:  PE/POF/PVC film with reserve pore.

Sealing part power consumption: app.2.0KW

Power Supply: 380V

Air Supply: 6~8kgf/cm2


2. Shrinking part

Structure Material: Carbon Steel


Shrinking tunnel:4000mm

Shrinking Side: W 1200mm x 300mm

Heating Power Consumption: App.15Kw

Calorific: 4PCS

Cooling Fans: 1 Group

Drive Part: Frequency control Motor

Conveyor speed: app. 6m/min

Temperature: 100℃-220℃

Packing Material: PE/POF film with reserve pore.

Power Supply: 380V


 Board Shrinking Machine                                                                                           Board Wrapping machine

door packing machine

door wrapping machine












board packing machine & wrapping machine

board packing machine & shrinking machine

Board Stretch Wrapping Machine

It is a automatic orbital stretch wrapper which is able stretch wrapping the length board with paper, stretch film...It includes in feeding conveyor and out feeding conveyor with high speed wrapping station.

Automatic Board Shrinking Machine

It is a shrinking solution which including automatic sealing station and shrinking wrap tunnel with conveyor. The machine can be designed per different length and width. Also can be automatic feeding

board packing machine with shrinking tunnel automatic board packing line

 Automatic Board shrink wrapping machine

L type boarding feeding with sealing station and shrinking machine. Packing material can be PE, HDPE, PVC...It is a automatic shrink machine with control program

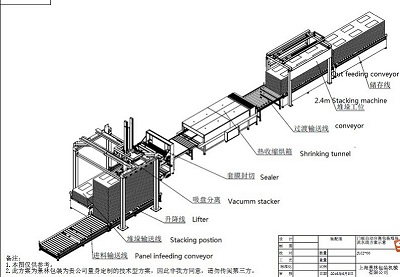

Automatic Board Packaging Line

This is a customize automatic board packaging solution, which is able stacking the board, shrink wrap the boards and stacking the board autoamtically.
