Bottle bundle shrink wrapping machine | bottle packing

SK-080A automatic sleeve type packing machine is a type of packaging equipment that is used to package single products without an under support. It can be easily connected to a production line and operates fully automatically, without the need for manual assistance. The machine is capable of feeding, wrapping, sealing, shrinking, and freezing products in various compositions, including 10 bottles

Automatic sleeve shrinking machine SK-080A

MORE PHOTOS

Automatic sleeve shrinking machine SK-080A-1 Automatic sleeve shrinking machine SK-080A-2 Automatic sleeve shrinking machine SK-080A-manufacturer Automatic sleeve shrinking machine SK-080A-for sale

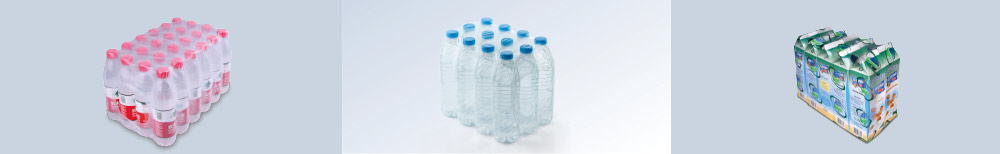

SK-080A automatic sleeve type packing machine is designed for single products without under support, easy to connect with production line and operate the feeding, wrapping, sealing, shrinking, freezing fully automatic without manual assistance. Various composing ways: 10 bottles(1*10)、(2*5)、9 bottles(3*3)、12bottles(3*4)、15bottles(3*5)、24bottles(4*6).......
1.SK-080A made based on world leading technology and workman craft, the machine is reliable and safe.
2.Adopt “Siemens PLC” and programmable controller, integrated the electrical, mechanical, and pneumatic components to one system.
3.The machine is able to pack products according to production requirement such as two lines, three lines, four lines... with or without under support. Only need to switch the rotating switch when changing the packing form.
4.Adopt worm gear reducer, no vibration during in-feeding and film feeding.
5.Used special sealer, the sealing is secure and not easy to open. No sticking to the sealer due to Teflon coating. Conveyor made of PE material, high anti-abrasion and high strength.
6.Automatic feeding fixture choosing according to the bottle shape.
7.When using colorful packing materials, adding the color coding system to achieve positioning function.
8.Mode designing, immediate exchange when bottle shapes change.
9.Conveyor can be designed to in-feed from the right side or left side according to the working place requirement.
10.SK-080A adopt double wind engine. Well distribute the heat to every corner. Make the shrinked package much more nice.
11.Silicon rubber covered on the rollers, extend the work life of conveyor. We also can switch the material to other types according to customer’s special requirement.
12.Conveying speed is manipulated by frequency converters, no restriction on regulating.
13.Strong wind cooling system, cool down the products instantly after heat shrinking.
14.Optional to add roller table next to the exit of shrink tunnel, prevent falling to floor.

Model SK-080A
Sealing type sleeve sealing
Power supply 380V/50-60Hz/3phase
Max product size 420(L) x 300(W) x 300(H)
Packing capacity 8-18 packs per minute
Film type polyethylene (PE) film
Max film size 600(width) x 280mm (outer diameter)
Power consumption max. 20.5kw

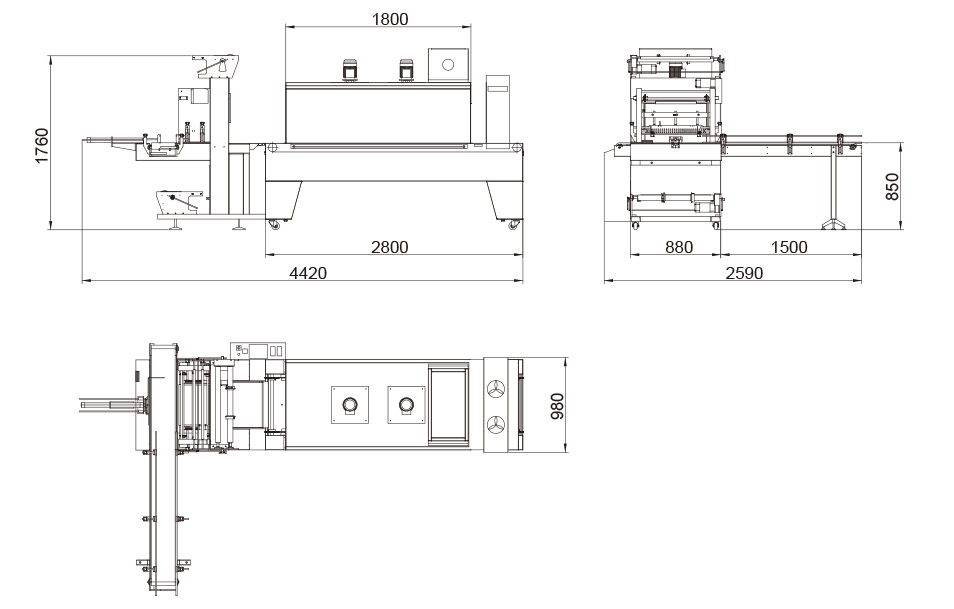

Tunnel oven size 1800mm(L), entrance 600(W) x 400(H) mm
Tunnel conveyor speed variable, controlled by frequency converter
Tunnel conveyor chains with silicon coated rods
Working height 850-900mm
Air pressure ≤0.5MPa(5 bar)
Sealing system Durable“U”shape alloyed sealing knife and saw teeth cutting knife with anti-stick Teflon coats
Operating panel Siemens colorful touch screen, PLC, omron temperature controller
Machine material carbon steel
Weight 1050kg
