MO-350 is an economical and full-auto sealing&packaging machine independently developed by our company, which is widely used in the assembly process of mass production and packaging. Automatic feeding&conveying&bagging&sealing&shrinkage in one time with high efficiency, and be suitable for products with different heights and width.
Feature：

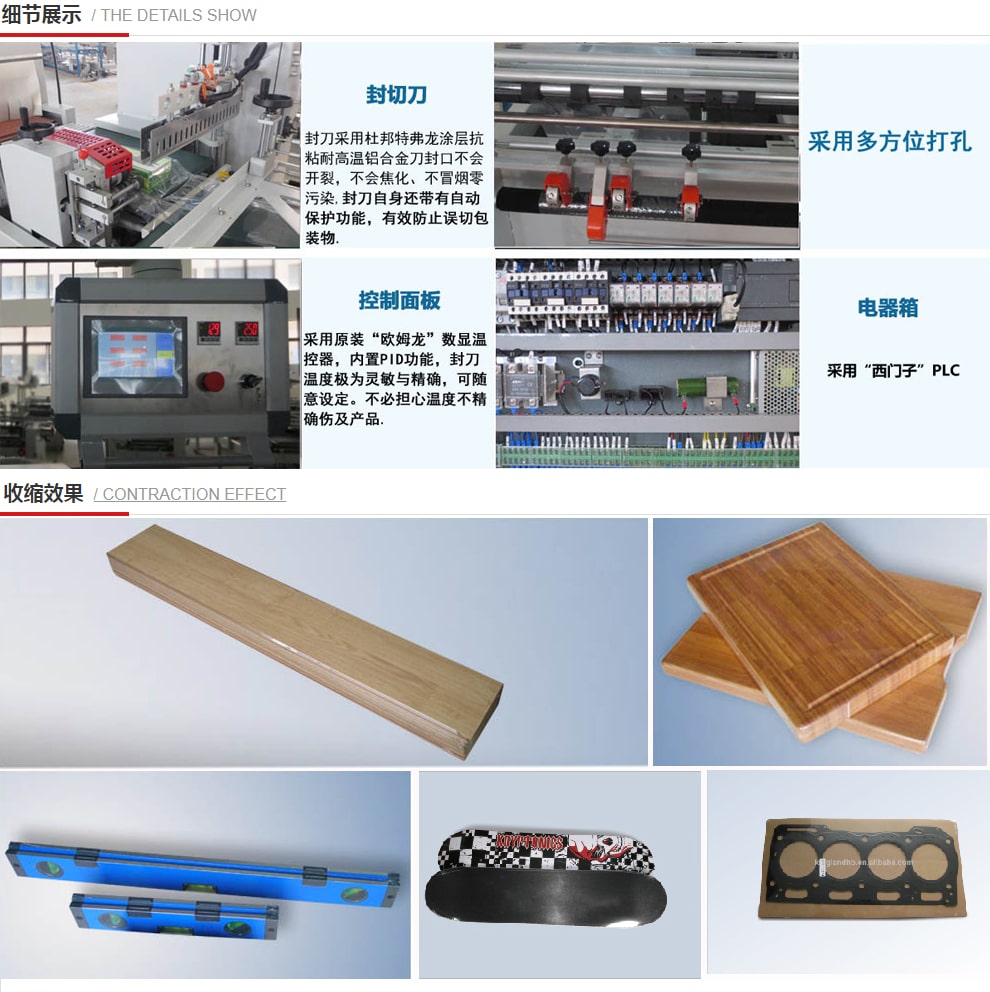

1.The sealing part of transverse cutter is driven by vertical type, while the longitudinal cutter is sealed by constant temperature side cutter.The sealing line is straight and strong, to achieve the perfect sealing effect.
2.The thermostatic heating sealing and cutting system can be used for sealing and cutting various industrial standard shrink films such as POF. For different packaging specifications,only need hand wheel to adjust, increase reliability, much easier to operate.
3.The longitudinal sealing knife can work sustainably and product length not limited.
4.PLC programmable controller,sealing and cutting system can work continuously and smoothly without replacement, and maintenance operation simple.
5.Feeding length is determined by electric eye detection and timer, which can accurately control the length of the film and make the contraction effect easier to control.
6.Add horizontal and vertical electric eyes. For thin or small packaging, can be easily sealing and packaging.
7.Automatic take-up of scrap,single motor control, will not too loose or too tight and crack, waste easy to remove.
8.According to customer needs, can add automatic blowing function.
9.According to customer needs, can add front feeding power conveyor and out-feeding no power storage stacking.
Technical Specification: MO-350
|
Power supply |
380V/50-60Hz/3phase |
|
Sealing height |
≤200 mm |
|
Sealing width |
≤350 mm |
|
Product size |
width+height≤400 mm |
|
Product length |
infinite |
|
Packing capacity |
depends on product length |
|
Film type |
center-folded polyolefin (POF) film or polyethylene(PE)film |
|
Max film size |
580mm(width) x 280mm(outer diameter) |
|
Power consumption |
10.5kW |
|
Tunnel oven size |
depends on product length |
|
Tunnel conveyor speed |
variable |
|
Tunnel conveyor |
chains with rotating silicon coated rods |
|
Working height |
780-820 mm |
|
Air pressure |
≤0.5MPa |
|
Sealing system |
Special durable alloyed sealing knife with anti-stick Teflon coats |
|
Operating panel |
Siemens colorful touch screen, PLC, Omron temperature controller |
|
Weight |
600kg |
