Application:
Spring water, beverage, bear with pallet or single carton package.

Model SK-080B
Sealing type sleeve sealing
Power supply 380V/50-60Hz/3phase
Max product size 420(L) x 350(W) x 300(H)mm
Packing capacity 8-18 packs per minute
Film type polyethylene (PE) film
Max film size 600(width) x 280mm (outer diameter)
Power consumption max. 20.5kw
Tunnel oven size entrance 600(W) x 400(H) mm
Tunnel conveyor speed variable, controlled by frequency converter
Tunnel conveyor chains with silicon coated rods
Working height 850-900mm
Air pressure ≤0.5MPa(5 bar)
Sealing system Durable“U”shape alloyed sealing knife and saw teeth cutting knife with anti-stick Teflon coats
Operating panel Siemens colorful touch screen, PLC, omron temperature controller
Machine material carbon steel
Weight 1000kg

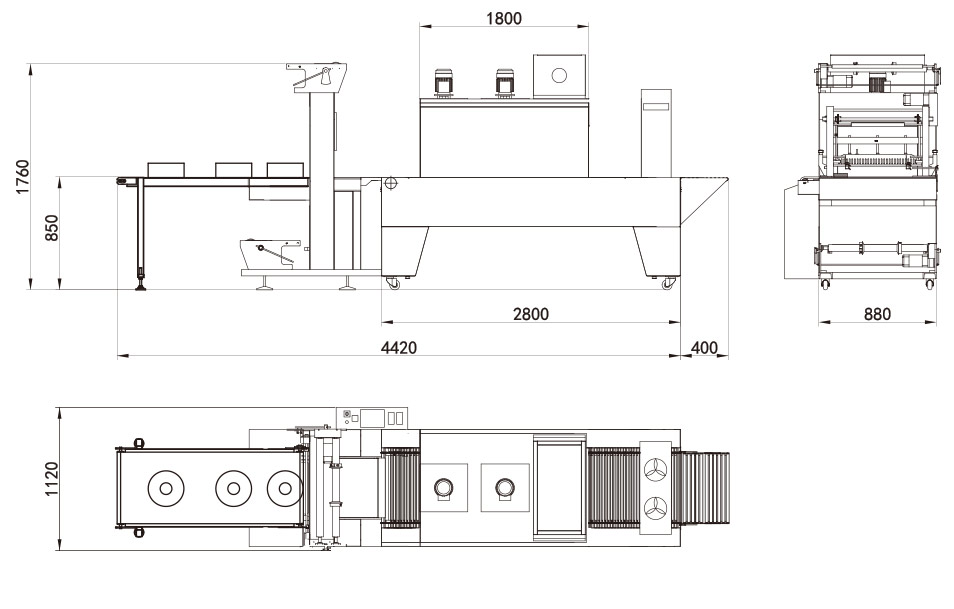

Automatic sleeve shrinking machine SK-080B

Automatic sleeve shrinking machine SK-080B
