Turnkey Solution: Fully Automated Coil Slitting and Packing Line

Optimize your service center with FHOPE’s fully automated coil slitting and packing lines. This high-capacity system integrates precision slitting with robotic strapping and wrapping, ensuring seamless transition from master coils to secured, palletized products with minimal manual intervention.

Get Free Quote Watch Demo

CE Certified

ISO 9001

2 Year Warranty

Turnkey Solution: Fully Automated Coil Slitting and Packing Line

98%

Efficiency Rate

2 Year

Full Warranty

Turnkey Solution: Fully Automated Coil Slitting and Packing Line

Turnkey Integration: Slitting & Packing Excellence

In the Industry 4.0 era, a turnkey solution that unifies slitting and packing lines provides the necessary information architecture to optimize OEE (Overall Equipment Effectiveness). By bridging cutting processes with automated logistics, FHOPE ensures a seamless data flow from the production floor to the ERP system.

1. High-Precision Slitting Module

Engineered for high-velocity cutting, this module converts master coils into precise strips with minimal tolerance. It features automated handling to bridge the gap between recoiling and downstream packaging.

Processing Velocity: Up to 200 m/min for maximum throughput.
Automated Handling: Integrated loading/unloading reduces cycle intervals.
Metrology Systems: Real-time strip dimension monitoring for QA compliance.

Technical Specifications

Coil Diameter Range	500 mm – 1600 mm
Strip Width Range	20 mm – 1600 mm
Maximum Coil Weight	Up to 10 Tons
Blade Material	High-Speed Steel (HSS)
Control Architecture	PLC with Intuitive HMI

Request Technical Drawings

2. Automated Packing & Logistics Module

Designed for the secure encapsulation of slit coils, this module ensures product integrity during transit. It is fully synchronized with the slitting line via Smart Connect protocols.

Throughput: Capacities up to 40 coils per hour.
ERP Integration: Full data handshaking with slitting line and ERP systems.
Digital Labeling: Online printer for real-time information application.
Turntable Stacking: Flexible sorting based on order numbers or widths.

Technical Specifications

Coil Diameter Range	600 mm – 1800 mm
Maximum Load	Up to 5 Tons per coil
Strapping Frequency	Up to 30 straps per minute
Palletizing Height	Max. 1200 mm
Interfacing	ProfiNet / IIoT Ready

Get a Turnkey Quote

Digital Twin & IIoT Capabilities

FHOPE turnkey solutions leverage Digital Twin technology to provide real-time monitoring and predictive maintenance. This holistic oversight from production to sales ensures that your facility adheres to the highest standards of data security and operational efficiency. By integrating slitting and packing into a single turnkey solution, companies reduce downtime, optimize resource utilization, and remain competitive in the Industry 4.0 market.

FHOPE: Your Global Partner for Integrated Coil Processing & Packaging Solutions.

Integrated Coil Slitting and Packing Line

This state-of-the-art turnkey solution bridges the gap between slitting production and logistics-ready palletization. Engineered for 24/7 industrial environments, the system features a seamless transition managed by Siemens S7-1500F fail-safe PLCs via ProfiNet. To prioritize surface integrity, all contact points utilize PU-coated rollers and non-marring vacuum or magnetic handling modules.

Technical Parameters Overview

Category	Key Parameter	Specifications (Reference Values)
Production Capacity
Speed	Packing Speed (Slit)	20 – 40 coils / hour
Speed	Packing Speed (Master)	1 – 8 coils / hour
Coil Dimensions
Dimensions	Outer Diameter (OD)	500 mm – 2,100 mm
Dimensions	Inner Diameter (ID)	300 mm / 508 mm / 610 mm
Dimensions	Strip/Coil Width	8 mm – 1,900 mm
Weight & Automation
Weight	Single Coil Weight	100 kg – 25,000 kg (Master up to 33T)
Strapping	Tension	2,000 N – 22,000 N (Adjustable)
Control	PLC Series	Siemens S7-1200 / 1500F Fail-safe
Data	Communication	ProfiNet / TCP-IP (10 Gbps backbone)

Investment & Budgetary Planning (EXW)

Standard Slit Coil Line

$361,168 — $381,168 USD

1–5 Tonne Capacity. Includes PET strapping, orbital wrapping, and standard stacking.

Economic / Lightweight Line

Approx. $171,168 USD

30–300kg Capacity. Basic turnstile, down-ender, and simple palletizing.

Heavy-Duty Custom Line

$450,000 — $550,000+ USD

11–25+ Tonnes. Features Titan welding heads and gantry vacuum stackers.

Modular Component References

Master Coil Orbit Wrapper: ~$171,816
Titan VS12/VS31 Strapping Station: $115,611 — $128,198
Automatic Magnet/Vacuum Stacker: $54,468 — $91,366
Installation & Commissioning: $16,811 — $24,811

Request Custom System Engineering >

Visual Details

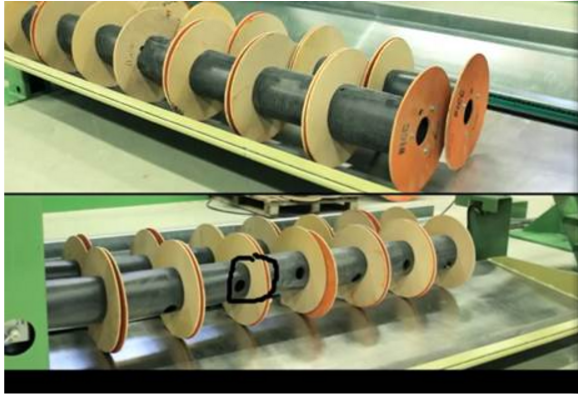

Turnkey Solution: Fully Automated Coil Slitting and Packing Line - Detail 1

Click to enlarge

Turnkey Solution: Fully Automated Coil Slitting and Packing Line - Detail 2

Click to enlarge

Turnkey Solution: Fully Automated Coil Slitting and Packing Line - Detail 3

Click to enlarge

Turnkey Solution: Fully Automated Coil Slitting and Packing Line - Detail 4

Click to enlarge

See It In Action

Watch How It Works

Discover how our automated packaging solutions optimize your production line efficiency. This video demonstrates the seamless operation designed for maximum protection.

High Throughput

Up to 60 coils per hour

Consistent Quality

Every wrap meets spec
