Automatic wire coil compactor

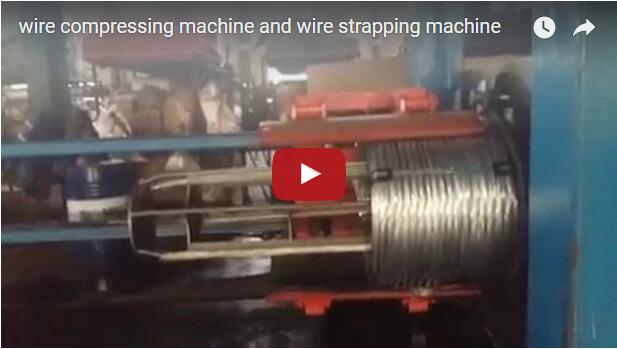

Automatic wire coil compactor  • This Compacting machine has frames, electric cabinet, and hydraulic installation. This machine will be for compacting the wire coil and strap it by manually tool.  Automatic wire coil compactorThe Manually Strapping Machine performs all the straps in different strapping positions. The wire coil along with the basket should be stay in table and the compactor system will compacting the wire coil on spool. It is al solution adjustable to accommodate materials by inverters. It is the most efficiency equipment for improving your wire coil packagingwhich meets the handling and stacking requirement for higher packaging efficiency with minimal space and saving labor cost in wire handling.The operator should place a basket along with its wire coil on the conveyor and conveyor move the coil into compacting station. The basket along with the coil should be displaced to the position of the strapping table supplied by Fhopeapck.


   FHOPE provide semiautowire coil compactor and strapping machine for automatic handling the wire coil with basket online.

 1. Application: the equipment is composed of compacting device, hydraulic pump station, conveyor &etc, it’s used for vertical type wire coil compacting.

 2. Operation:
  a. conveying the wire with rack to the compacting position.
  b. conveyer down for wire rack placing the solid compaction position.
c. automatic compacting.
d. conveyor raising and move the coil to next station.
3. Main technical parameters:
  Object: Steel wire coils
  Coil outer diameter: 600-1400mm ,
  Coil Inner diameter: 400-1200mm ,
  Coil Width: 300-1400mm (approx),
  Max.compacting range: 800mm
  Max.compacting pressure:20T
  Power voltage: 3 phase 5wire, AC380, 50Hz

 4. Main performance parameters

No. Item Requirement Definition and conditions
1 Single compacting time About 10-20sec ---
2 Max compacting pressure 20T ---
3 Comprehensive reliability ≥99.9% ---
4 Failure frequency in testing ≤ 1 ---
5 Equipment noise ≤85 decibel ---


 Technical specifications&performance:
We are responsible for the whole equipment design, the equipment integrity, and the completeness& accuracy of all the documents.
All of the design are based on Metric standard and comply with the existing ISO standards.All bearings are adopted according to International standards.
1)        Solid structure, firm and durable.
2)        Special designing for compacting wire coil with rack
3)        Soft start and stop.
4)        Compacting driven by hydraulic.
5)        Special transmission mechanism adopted, safe and stable.
6)        Conveyor for loading and unloading
7)        Multiple limit protection makes the machine more safe.
8)        The machine stops automatically.
9)        Obligating position for manually strapping.
10)    Two way back pressure technical, ensure smooth transition during shifting of gravity.
