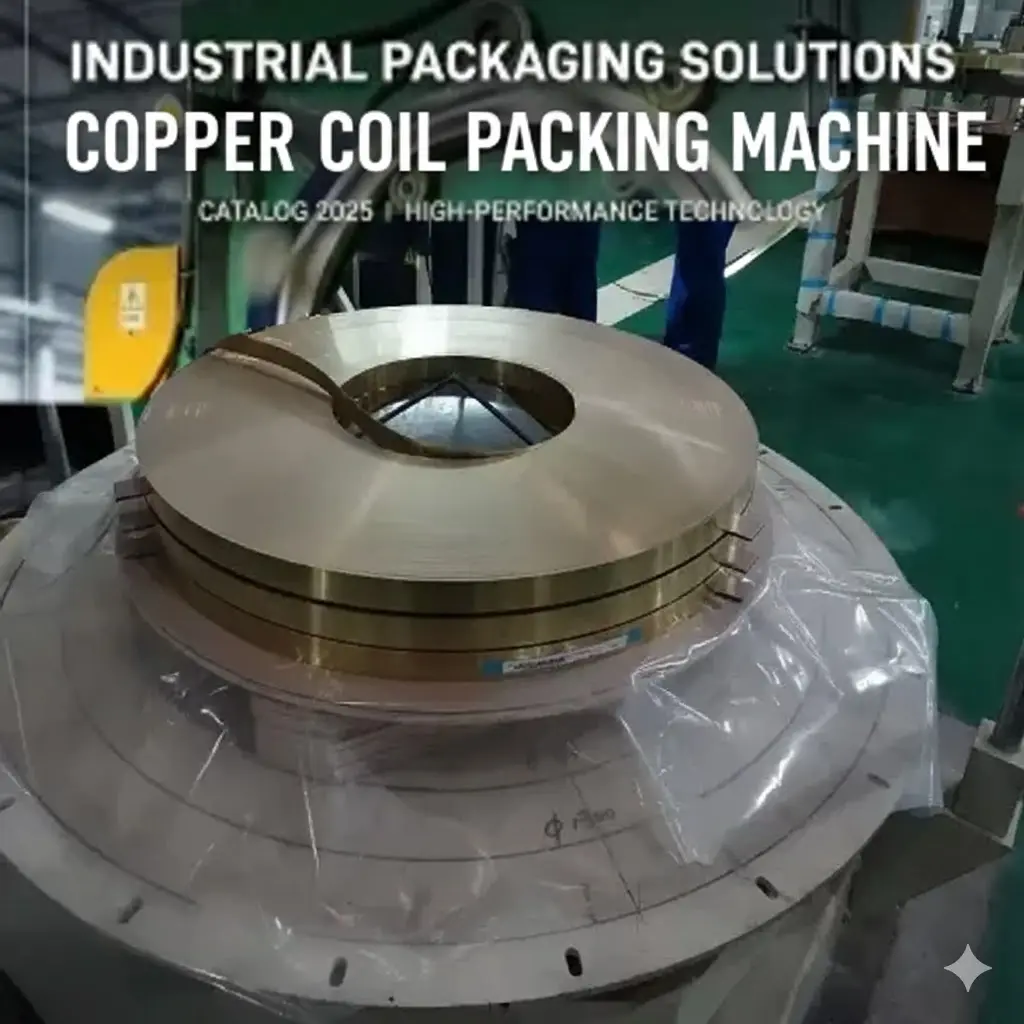

Automatic copper coil packing machine | copper wrapper

FPC Copper coil wrapper FPC400 FPC series copper coil wrapper is mainly used to copper packaging. It also named copper wire wrapping machinery, copper coil packing machinery, cable coil wrapping machinery, horizontal steel coil packing machine... which is with highly efficiency and nice packaging for saving labor and material It can save labor cost,save money,save time...

Get Free Quote Watch Demo

CE Certified

ISO 9001

2 Year Warranty

98%

Efficiency Rate

2 Year

Full Warranty

FPC-400 Automatic coil wrapper

Visual Details

Click to enlarge

FPC-400 Automatic coil wrapper - Detail 2

Click to enlarge

FPC-400 Automatic coil wrapper - Detail 3

Click to enlarge

FPC-400 Automatic coil wrapper - Detail 4

Click to enlarge

FPW-800 Specs

Optimized Machine Configuration

PLC & HMI Control System

Centralized operation via an advanced PLC and intuitive HMI touchscreen. Operators can easily set packing parameters, view status diagnostics, and manage wrapping recipes.

Control Panel

Dual Safety Protection

Maximum operator security featuring Safety Light Beams to detect intrusion during cycles, and Safety Power Locks that mechanically lock cabinet doors while the machine is energized.

Interlock System

Motors & Rollers

Powered by high-torque Gear Motors coupled with durable PU Friction Rollers. This combination ensures consistent ring rotation and long-lasting wear resistance.

Inverters & Sensors

Frequency Inverters provide soft start/stop control to protect coils. Precision Sensors automatically detect packing position and reset the ring home position.

See It In Action

Watch How It Works

Discover how our automated packaging solutions optimize your production line efficiency. This video demonstrates the seamless operation designed for maximum protection.

High Throughput

Up to 60 coils per hour

Consistent Quality

Every wrap meets spec

Request A Quote

AUTOMATIC COPPER COIL PACKING MACHINE

Description:

FPC-400 is an automatic coils wrapping line for copper material coils. It is designed to improve the packaging effectiveness. People also call the same type machine different names as follows: copper wire wrapping machine; copper coil packing machine; cable coil wrapping machine; horizontal steel coil packing machine and so on.
Our team is specialized in designing it, and we have very rich relevant experience to provide the best system of packaging production line. Fhope will try our best to provide customers with the best solution to solve any problems in the packaging process.

Features:

1. Horizontal wrapping method .

2. PLC & HMI for operation control

3. Conveyor for moving the coil.

4. Online operation and off line operation.

5. Automatically alarm if fault occurs, the error will be displayed on the panel automatically during the red light flashes..

6. PLC control system operation, simple input related product data.

7. Special tension control design, effectively adjust the tension of the object contact surface.

8. Friction wheel cover made of anti-wear polyurethane material, and sealing is designed with the overall mold structure.

10. Rollers are all made of wear-resistant rubber material.

11. Synchronous wrapping be feasible to realize the simultaneous packing of two packaging materials.

Technical parameter：

Object weight	20-3000kg
Package width	10-400mm
Package OD	700-1600mm
Package ID	400-800mm
OD-ID	<800mm
Roller Speed	2-4m/min
Wrapping speed	25-60sec/pcs
Rotating speed	10-100r/min
Overlap scope	10%-80%
Power voltage	380v/50/60Hz/3ph
Air supply	5-8kgf/m2
Packing material	woven belt \| Paper ID:50/76mm OD:150-450mm Width:90-120mm ID:50mm OD:100-150mm Width:90-120mm
Working mode	Automatically
