Automatic Strapping & Packing Line for Copper

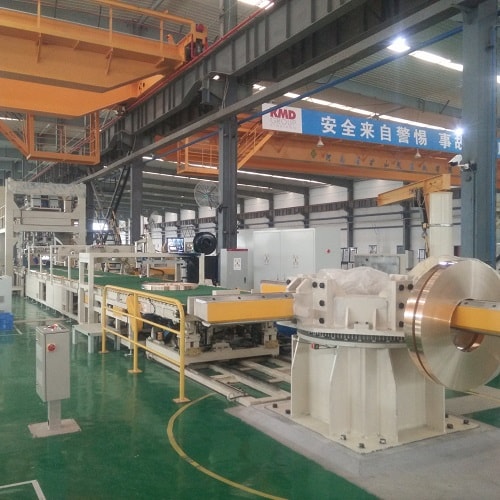

Introducing the Automated Strapping and Packing Line for Copper

Our specialized line is purpose-built for the packaging of a variety of materials including stainless steel, copper, and aluminum coils. The system is composed of several key components such as a turnstile, coil separator, weighing device, strapping machine, stacking unit, and a conveyor line.

This line is particularly efficient for the segregation, strapping, stacking, and weighing of copper coils with widths spanning from 10mm to 300mm.

The entire machinery is regulated by a supervisory control system, enabling manual operation of each component as required.

The machine comes equipped with a hydraulic press station, with the user providing power and air supply.

The technical specifications of the coil packing line include a coil weight range of 100-3000kg, and a coil width accommodation of 30-300mm.

The outer diameter of the coil can vary from 600-1500mm, with an inner diameter of 508mm. The roller speed is set at 2-4m/min with a wrapping speed of 20-60sec/pcs. The rotation speed ranges from 20-100r/min with an overlap scope of 20%-80%. The machine operates on a power voltage of 380v/60Hz with a power output of approximately 3.6kw. The air supply requirement is 4-6kgf/m2.

The packing material utilized is a PP belt with ID:50mm, OD:100-500mm, and Width:100mm.

The Automated Strapping and Packing Line for Copper offers an efficient, reliable packaging process, minimizing manual labor and enhancing workplace security.

Its precision and consistency in packaging preserve the coils' condition, diminishing the risk of damage during handling and transportation. This line is an all-encompassing solution for businesses aiming to optimize their coil packaging operations.
