Optimizing Slit Coil Packaging: A Look at Cost-Effective Vertical Wrapping Systems
The handling and packaging of slit metal coils present unique challenges within the metals processing and distribution supply chain. Ensuring product integrity, preventing damage (particularly to vulnerable edges), and maintaining operational efficiency are paramount. While fully automated lines offer high throughput, cost-effective solutions are crucial for many operations. This article explores an economic vertical steel slitting coil packaging line designed to provide essential automation for coil protection and handling.
The Critical Need for Specialized Slit Coil Packaging
Slit coils, resulting from the division of master coils into narrower widths, are susceptible to various forms of damage during handling, storage, and transportation. Industry reports and quality control studies frequently highlight issues such as:
- Edge Damage: Impacts, nicks, or burrs on slit edges can render coils unusable for downstream processes, leading to scrap and financial loss.
- Corrosion: Exposure to moisture and atmospheric contaminants can cause rust and staining, particularly on ferrous materials.
- Coil Instability: Improperly secured coils can telescope or unwind, posing safety risks and causing material damage.
- Handling Inefficiencies: Manual packaging methods are labor-intensive, slow, and increase the risk of worker injury.
Effective packaging solutions, therefore, must address these concerns by providing robust protection and streamlining the handling process.
Introducing an Economic Vertical Slitting Coil Packing Solution
The system featured provides a semi-automated approach focusing on the critical wrapping stage, balancing investment cost with significant improvements over manual methods. It serves as an accessible entry point for operations seeking to enhance their packaging capabilities without the capital expenditure of fully integrated, high-speed lines.
Key Operational Features and Workflow
This type of economic packing line typically involves the following stages:
- Coil Loading: Slit coils are generally loaded via crane or C-hook onto a coil car or directly onto the infeed conveyor section of the packing line. V-saddles or supportive structures ensure proper coil orientation.
- Conveyor Transport: Powered roller conveyors move the coil into the packaging station.

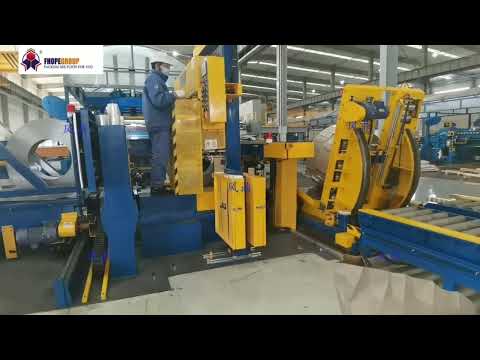

- Semi-Automated Wrapping Station: This is the core of the system.
- Coil Elevation: Integrated supportive rollers lift the coil slightly from the main conveyor, allowing clearance for the wrapping shuttle.
- Positioning: The operator typically jogs the conveyor or uses manual stops to precisely position the coil within the wrapping ring's optimal zone.
- Orbital Wrapping: A rotating ring or shuttle dispenses stretch film (commonly LLDPE - Linear Low-Density Polyethylene) orbitally through the eye of the coil and around its outer circumference. Technology similar to that described in patents concerning orbital wrapping apparatus (e.g., within USPTO Class B65B 11/00) is employed.
- Adjustable Tension & Overlap: The system allows for adjustable film tension control, critical for securing the coil tightly without damaging edges. Film overlap can also be controlled to ensure complete coverage.
- Strapping Integration (Optional/Downstream): While described as a packing line, the primary focus here is often wrapping. Strapping (circumferential or through-the-eye using PET or steel strapping) might be a manual or separate semi-automated step downstream to further secure the coil and packaging materials.
- Discharge: The wrapped coil is lowered back onto the conveyor and transported to an exit station for removal, typically by forklift or crane.
Technical Parameters Overview
While specific configurations vary, typical parameters for such economic lines include:
- Coil Outside Diameter (OD): 700 - 1600 mm (approx. 27" - 63")
- Coil Inside Diameter (ID): 508 mm / 610 mm (approx. 20" / 24")
- Coil Width: 30 - 500 mm (approx. 1.2" - 20")
- Maximum Coil Weight: 500 kg - 5000 kg (approx. 1100 - 11000 lbs)
- Packing Material: LLDPE Stretch Film (potentially VCI - Volatile Corrosion Inhibitor film)
- Wrapping Speed: Adjustable, often around 2-4 m/sec ring speed.
- Typical Cycle Time: 60 - 180 seconds per coil (depends heavily on coil dimensions and number of wraps required)
- Control System: PLC (Programmable Logic Controller) with HMI (Human-Machine Interface) for parameter setting and operation.
Benefits Beyond Cost-Effectiveness
Investing in an economic slitting coil packing line offers several advantages:
- Enhanced Product Protection: Consistent, tightly wrapped packaging significantly reduces the risk of edge damage and shields coils from environmental factors like dust and moisture. Use of VCI films can offer added corrosion protection, a topic frequently discussed in metal preservation research.
- Improved Operational Efficiency: Automating the wrapping process drastically reduces the time and labor required compared to manual wrapping, addressing bottlenecks in the production flow.
- Labor Optimization: Frees up personnel from strenuous and repetitive manual wrapping tasks, allowing them to be allocated to more value-added activities.
- Increased Safety: Minimizes direct manual handling of coils during the wrapping process, reducing potential ergonomic injuries.
- Professional Package Appearance: Provides a consistent, secure, and professional look for finished products.
Material Considerations
The choice of packaging materials impacts performance. Standard LLDPE stretch film provides containment and stability. For corrosion-sensitive metals, incorporating VCI-impregnated stretch film delivers active corrosion protection during transit and storage, a technology validated in numerous material science studies.
Conclusion
The Economic Vertical Slitting Coil Packing Line represents a pragmatic step towards automation for many metal service centers and processors. By focusing automation on the critical wrapping function, it delivers substantial improvements in product protection, operational speed, and safety compared to manual methods. Its user-friendly interface and adjustable parameters provide flexibility for handling various coil sizes. While not offering the full hands-off capability of high-end systems, this solution provides a reliable, efficient, and accessible pathway to better packaging practices, safeguarding valuable slit coil products throughout the supply chain.
