The Best Pallet Flipping Machine for Different Industry Applications: A Detailed Comparison

The Best Pallet Flipping Machine for Different Industry Applications: A Detailed Comparison

While the core function—inverting a palletized load—appears straightforward, the underlying technology and its integration into complex supply chains offer significant operational advantages. This analysis delves into the engineering principles, comparative performance data, and specific industry applications of leading pallet flipping machines, highlighting their role as essential components in contemporary automated handling systems.

[Claim] Implementing the right pallet flipping machine is a strategic investment in operational excellence, yielding measurable improvements in throughput, safety compliance, and overall system efficiency.

1. Operational Efficiency Gains Through Pallet Inversion Technology

1.1 Enhancing Workflow Throughput

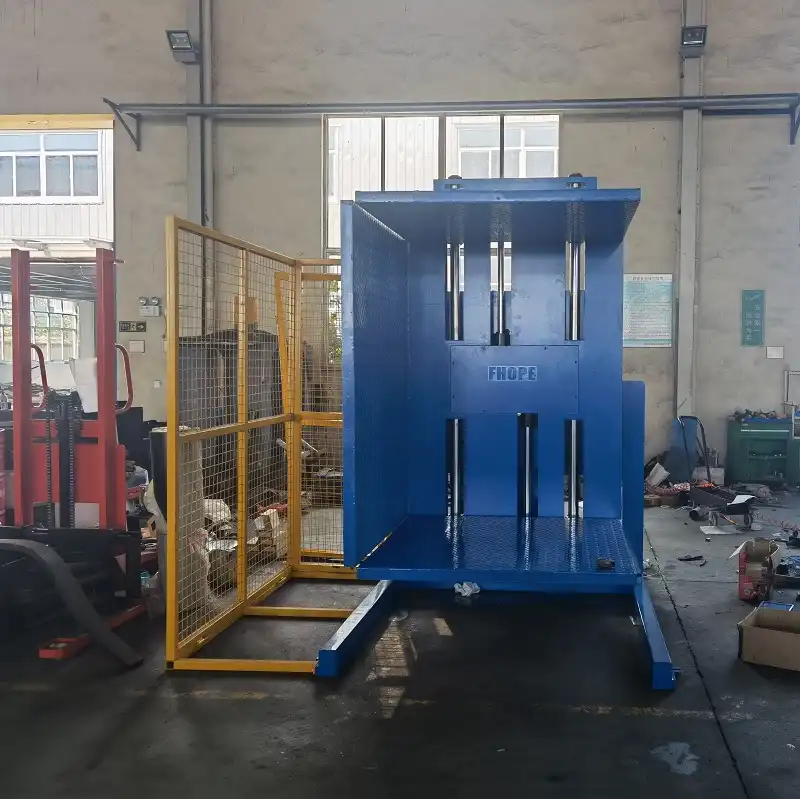

A primary benefit of automated pallet flipping machines is the significant acceleration of repetitive handling tasks. Compared to manual methods or less sophisticated equipment, these machines execute pallet inversion or exchange cycles with high precision and speed, often completing a cycle in 30-60 seconds. Research indicates that integrating such automation can increase throughput in specific process nodes by up to 40%. For instance, in distribution centers requiring pallet exchange from wood to plastic for hygiene zones, automated inverters drastically reduce bottlenecks and minimize product transit time.

1.2 Improving Safety and Reducing Ergonomic Risks

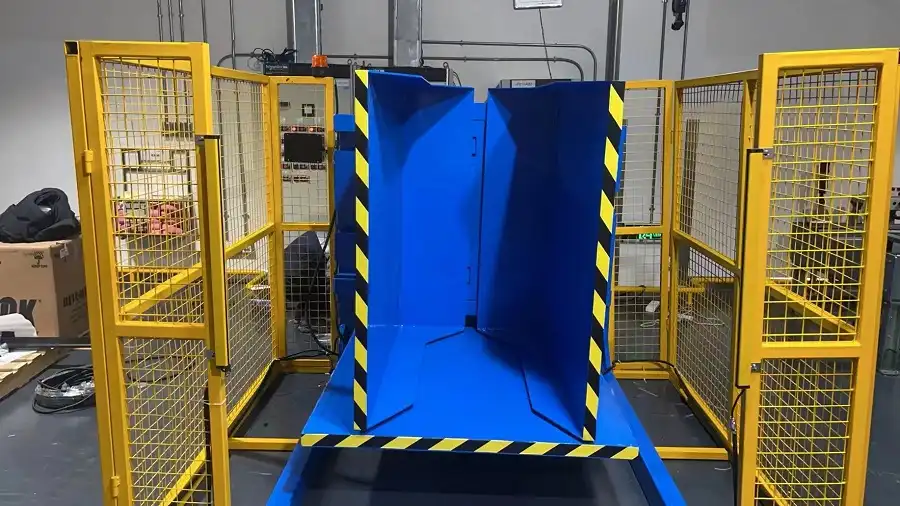

Manual handling of heavy palletized loads poses significant ergonomic risks and potential for injury, contributing to workforce downtime and compensation costs. Pallet inverters eliminate the need for manual lifting and re-stacking. Advanced systems incorporate safety features compliant with standards like ANSI/ITSDF B56.1, including interlocked guarding, light curtains, and pressure-sensitive clamping systems (similar to principles outlined in patents like US Patent 7,XXX,XXX B2 focusing on secure load handling). These features prevent load instability during rotation and ensure operator safety.

Safety Feature	Mechanism/Principle	Benefit	Typical Application
Hydraulic/Electric Clamping	Adjustable pressure control	Secures load variability, prevents shifting	Handling fragile or unstable goods
Interlocked Guarding	Physical barriers with sensors	Prevents access during operation cycle	All industrial environments
Emergency Stop Circuits	Accessible stop buttons, safety relays	Immediate cessation of movement	Mandatory safety integration
Rotation Speed Control	Variable frequency drives (VFDs)	Smooth acceleration/deceleration, load stability	Handling liquids or sensitive products

1.3 Machine Versatility for Diverse Industrial Requirements

Pallet flipping technology is not monolithic; designs vary significantly to meet specific industry demands. Pharmaceutical and food/beverage applications often mandate stainless steel construction (e.g., SS304/SS316L) and washdown capabilities (IP65/IP67 ratings) to comply with GMP and FDA standards. Conversely, logistics and manufacturing sectors might prioritize higher load capacities (1500kg - 2500kg+), robust structural steel frames, and integration with automated guided vehicles (AGVs) or conveyor systems.

1.4 Advanced Control Systems for Precision and Integration

Modern pallet inverters utilize sophisticated Programmable Logic Controller (PLC) based systems (e.g., Siemens S7, Allen-Bradley ControlLogix) coupled with intuitive Human-Machine Interfaces (HMIs). These allow operators to precisely control parameters such as clamping pressure, rotation angle (90°, 180°, custom), and rotation speed. Furthermore, these systems facilitate integration into plant-wide SCADA or Manufacturing Execution Systems (MES) for data logging, performance monitoring, and remote diagnostics, aligning with Industry 4.0 principles.

• Fact: Integration via standard protocols like EtherNet/IP or PROFINET allows seamless communication with other automated equipment.
• Misconception: Operating advanced pallet inverters requires extensive specialized programming skills for routine tasks. (Modern HMIs simplify standard operations).

2. Key Design Considerations for Pallet Inverter Selection

2.1 Load Capacity, Pallet Compatibility, and Cycle Time

Defining the required load capacity (considering both static and dynamic forces during rotation) is fundamental. Standard capacities typically range from 1000kg to over 2500kg. Equally important is compatibility with various pallet types (e.g., GMA, CHEP, Euro pallets, plastic pallets, slip sheets) and sizes. The required cycle time (total time for loading, inversion, and unloading) directly impacts throughput and must align with upstream and downstream process speeds. Typical cycle times range from 30 to 90 seconds, influenced by load weight, rotation angle, and automation level.

2.2 Control Architecture and Automation Level

The level of automation impacts both efficiency and cost. Options range from semi-automatic systems requiring operator initiation to fully automated inline systems integrated with conveyors or AGVs. Control systems should offer flexibility:

Control Feature	Description	Benefit	Target Application
PLC Control (e.g., Siemens, Allen-Bradley)	Industry-standard programmable logic controllers	Reliability, scalability, integration capability	Most industrial applications
Touchscreen HMI	Graphical user interface	Ease of operation, diagnostics, parameter setting	Systems requiring operator interaction
Variable Speed Control	VFDs for rotation motors	Smooth motion, reduced product stress	Handling sensitive or liquid loads
Remote I/O Capabilities	Allows connection to external sensors/actuators	Facilitates integration with conveyors, safety systems	Automated production lines

2.3 Construction Materials, Durability, and Maintenance

The operational environment dictates material selection. Heavy industrial settings demand robust structural steel construction with durable powder coat finishes. Food, beverage, and pharmaceutical applications require stainless steel (SS304 or SS316L) for corrosion resistance and hygiene. Key design considerations for longevity include heavy-duty bearings, robust hydraulic or electro-mechanical drive systems, and ease of access for routine maintenance (lubrication, inspection). Evaluating Mean Time Between Failures (MTBF) and Mean Time To Repair (MTTR) data from manufacturers can inform reliability expectations.

2.4 Analyzing Total Cost of Ownership (TCO) and ROI

Beyond the initial purchase price, a comprehensive TCO analysis is crucial. This includes installation costs, commissioning, operator training, energy consumption, preventative maintenance schedules, spare parts availability and cost, and potential downtime impact. Return on Investment (ROI) calculations should factor in quantifiable benefits such as labor cost reduction, increased throughput, reduced product damage rates, and improved safety records (lower insurance premiums or compensation claims). Payback periods for pallet inverters often range from 12 to 36 months, depending on utilization intensity and labor savings.

Cost Component	Factors to Consider	Impact on TCO
Initial Investment	Machine price, options, customization	High initial outlay, potential for long-term savings
Installation & Integration	Site prep, electrical, mechanical, software integration	Variable, potentially significant
Operational Costs	Energy consumption, consumables (hydraulic fluid)	Ongoing, generally moderate
Maintenance Costs	Preventative maintenance, spare parts, labor	Ongoing, dependent on design robustness & usage
Labor Savings	Reduction in manual handling personnel	Major ROI driver
Damage Reduction	Lower rates of product/pallet damage	Significant savings potential

2.5 Key Technical Statements

• Fact: Designs incorporating hydraulic systems often offer higher clamping forces suitable for heavy or unstable loads, while electro-mechanical systems can provide precise control and eliminate potential fluid leaks.
• Misconception: Higher load capacity always equates to a slower cycle time. (Advanced drive and control systems can optimize speed even for heavy loads).

3. Industry-Specific Pallet Inverter Solutions and Technologies

3.1 Food & Beverage: Hygiene and Compliance Focus

The food and beverage sector requires equipment meeting stringent hygiene standards (e.g., FSMA, HACCP). Pallet inverters for this industry typically feature:

• Construction: Stainless steel (SS304/316L) contact and non-contact surfaces.
• Design: Crevice-free designs, sloped surfaces for drainage, sealed bearings.
• Washdown Capability: IP65, IP67, or IP69K ratings for high-pressure cleaning.
• Pallet Types: Handling plastic hygiene pallets, compatibility with captive pallet systems.

Model Type	Typical Capacity (kg)	Key Hygiene Feature	Estimated Price Tier
Stainless Steel Washdown Inverter	1200 - 1500	Full SS304/316L, IP67 rating	$$$$
Hybrid (SS Contact Parts)	1000 - 1500	Stainless steel clamping surfaces, powder-coated frame	$$$

3.2 Manufacturing & Logistics: Durability and Throughput

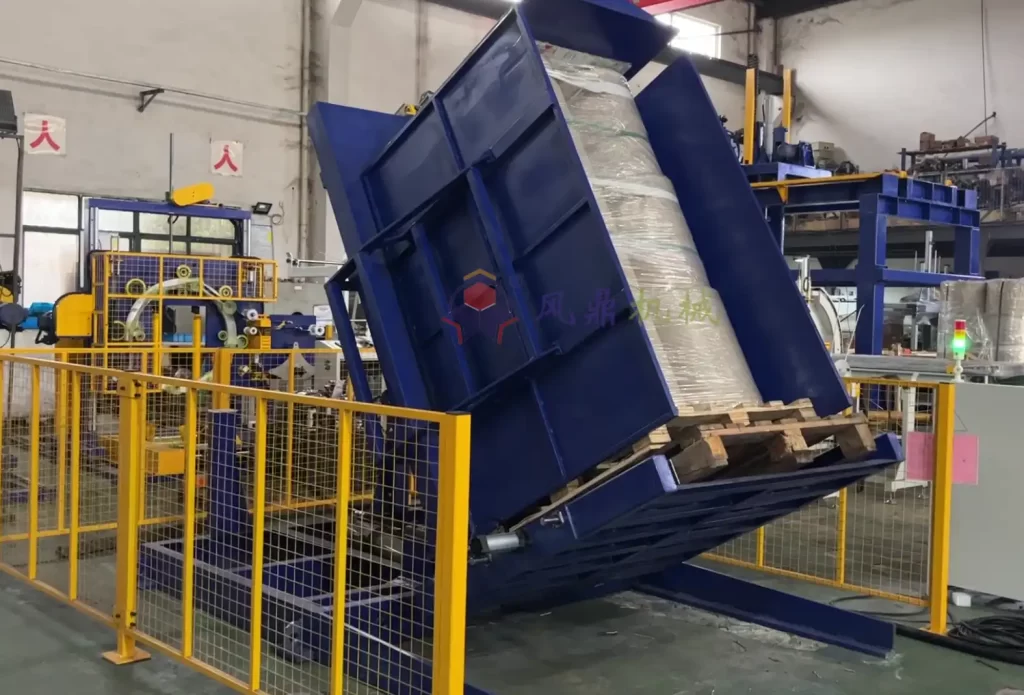

Heavy manufacturing (automotive, metals) and high-volume logistics demand robust, high-capacity, and fast pallet inversion solutions. Key characteristics include:

• Construction: Heavy-gauge structural steel frames.
• Capacity: 1500kg, 2000kg, 2500kg, and higher capacities are common.
• Speed: Optimized cycle times (30-45 seconds) for high throughput.
• Integration: Designed for forklift loading/unloading, or seamless integration with conveyors and AGV/AMR systems.
• Drive Systems: Robust hydraulic or high-torque electro-mechanical drives.

Model Type	Typical Capacity (kg)	Typical Cycle Time (sec)	Estimated Price Tier
Heavy-Duty Industrial Inverter	2000 - 3000+	35-50	$$$ - $$$$
High-Speed Conveyor-Fed Inverter	1500 - 2000	30-40	$$$$$

3.3 Pharmaceuticals & Chemicals: Precision, Safety, and Validation

Pharmaceutical manufacturing requires precision, contamination control, and often, equipment validation (IQ/OQ/PQ). Chemical industries may need specific safety features for handling hazardous materials.

• Materials: Stainless steel construction, potentially cleanroom compatible (ISO class ratings).
• Controls: Precise clamping pressure control, gentle handling cycles.
• Safety: Options for explosion-proof (ATEX) components in hazardous environments.
• Documentation: Availability of comprehensive validation documentation packages.

3.4 Customization Capabilities and Modular Design

Many applications require tailored solutions beyond standard models. Leading manufacturers offer customization options:

Customization Area	Description	Benefit	Example Application
Adjustable Clamping Range	Accommodates varying load heights/widths	Flexibility for diverse product lines	Third-party logistics (3PL) providers
Specific Rotation Angles	e.g., 90° for inspection/layer picking, 180° for full inversion	Matches specific process requirements	Order fulfillment, quality control
Loading Configurations	Floor-level loading, ramp loading, conveyor integration	Adapts to existing facility layout and material flow	Retrofitting into existing lines
Specialized Pallet Handling	Adapters for drums, coils, non-standard pallets	Handles unique load types	Chemical processing, paper mills

3.5 Key Technical Statements

• Fact: Modular pallet inverter designs allow for easier upgrades or modifications, such as adding automated loading/unloading modules later.
• Misconception: Stainless steel construction inherently guarantees suitability for all cleanroom environments without considering design details and surface finishes.

4. Strategic Selection Process for Optimal Pallet Inverter Implementation

4.1 Comprehensive Assessment of Operational Requirements

A successful implementation begins with a detailed analysis of the specific application. Key parameters include:

• Load Characteristics: Weight range (min/max), dimensions (L x W x H), stability, fragility, type (boxes, bags, drums, etc.).
• Pallet Specifications: Types (wood, plastic, metal, CHEP, GMA, EURO), sizes, condition (new, damaged).
• Throughput Needs: Required pallets per hour/shift, peak demand periods.
• Process Flow: Integration points, loading method (forklift, pallet jack, conveyor), unloading method.
• Environmental Conditions: Temperature (ambient, cold storage, freezer), humidity, cleanliness requirements (washdown, cleanroom), hazardous zones (ATEX).

4.2 Balancing Initial Cost Against Long-Term Value (TCO)

While budget constraints are real, focusing solely on upfront cost can be shortsighted. Evaluate the Total Cost of Ownership (TCO), considering factors outlined previously (installation, energy, maintenance, etc.). Advanced features like higher automation levels or superior build quality might increase initial outlay but yield faster ROI through greater efficiency, reliability, and lower lifetime operating costs.

Feature Level	Typical Cost Impact	Potential TCO Benefit
Basic Semi-Automatic	Lowest Initial Cost	Lower labor savings, potentially higher TCO if throughput is limited
Fully Automated (Conveyor Integrated)	Highest Initial Cost	Maximum throughput, minimal labor, potentially lowest TCO in high-volume scenarios
Stainless Steel Construction	+30-60% vs. Steel	Essential for compliance in specific industries, avoids costly retrofits/replacements
Advanced Safety Package	+10-20%	Reduced risk of accidents, potential insurance savings, compliance assurance

4.3 Vendor Evaluation: Technical Support, Reliability, and Service

Partnering with a reputable manufacturer or supplier is critical. Evaluate vendors based on:

• Technical Expertise: Demonstrated understanding of your application and industry.
• Proven Reliability: Track record, customer references, MTBF data.
• After-Sales Support: Availability of technical support, field service network.
• Spare Parts Availability: Lead times and cost for critical components.
• Warranty Terms: Coverage duration and scope.
• Training: Provision of operator and maintenance training.

4.4 Considering Future Scalability and Adaptability

Business needs evolve. Select a machine with potential for future adaptation. Consider:

• Modular Design: Can automation levels be upgraded (e.g., adding conveyors later)?
• Control System Flexibility: Can the PLC program be easily modified for new tasks or integration?
• Capacity Headroom: Does the chosen capacity allow for potential future increases in load weight?
• Adjustability: Can clamping ranges or other parameters be adjusted if product or pallet types change?

4.5 Key Technical Statements

• Fact: Conducting a Factory Acceptance Test (FAT) at the manufacturer's site before shipment can verify performance and identify potential issues early.
• Misconception: All pallet inverters from different manufacturers offering the same load capacity provide equivalent performance and reliability. (Design details, component quality, and control logic vary significantly).

Conclusion: Strategic Implementation of Pallet Inversion Technology

The selection and implementation of a pallet flipping machine or inverter is a significant engineering and operational decision. A data-driven approach, focusing on detailed application requirements, TCO analysis, vendor capabilities, and future scalability, is essential for maximizing return on investment. By carefully matching the machine's technical specifications—load capacity, cycle time, construction materials, control systems, and safety features—to the specific demands of the industrial environment, businesses can leverage this technology to achieve substantial improvements in productivity, enhance workplace safety, reduce operational costs, and maintain product quality throughout the handling process. The right pallet inverter is more than just equipment; it's a cornerstone of optimized, modern material handling strategy.

[Claim] Strategic deployment of appropriate pallet flipping technology translates operational challenges into quantifiable gains in efficiency, safety, and competitive advantage across diverse industrial sectors.
