Advancing Coil Packaging: The FHOPE Automatic Coil Wrapping Machine with Movable Wrapping Station
Handling heavy industrial coils, particularly steel, aluminum, or copper, presents unique challenges in logistics and packaging. Ensuring product integrity while maintaining operational efficiency and worker safety requires specialized equipment. The FHOPE automatic coil wrapping machine introduces a significant design innovation: a movable wrapping station, engineered specifically to streamline the loading process for heavy coils and enhance overall safety.
1. Design Philosophy: Addressing Loading Challenges
The core innovation of this machine lies in its traversing wrapping station. Traditional stationary wrapping rings often create accessibility issues when loading large, heavy coils via overhead cranes. Misalignment or minor operational errors during loading can lead to costly damage to the wrapping ring or the coil itself.
- Movable Station Mechanism: The wrapping station is designed to move forward and backward on robust linear guides, driven by a dedicated motor system. This allows the station to retract fully, creating an unobstructed, larger loading zone.
- Safety Enhancement: By moving the wrapping mechanism out of the way, the risk of collision between the crane-handled coil and the machine's critical components is significantly minimized. This design prioritizes safety during the potentially hazardous loading phase.
- Operational Efficiency: Easier and safer loading translates to reduced cycle time interruptions and minimizes potential equipment downtime due to damage.

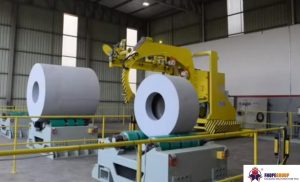

master steel coil stretch wrapping machine for steel wire rod and coil 2. Structural Engineering and Key Components
Built for demanding industrial environments, the machine's structure and components are selected for durability and performance.
- Frame Construction: A heavy-duty, welded steel frame provides the rigidity needed to support coils up to 5000kg and withstand the dynamic forces of the wrapping process.
- Wrapping Ring: The ring mechanism, typically constructed from high-strength alloys, houses the film carriage and drive system. Precise engineering ensures smooth rotation and consistent film application.
- Film Carriage System: Equipped with adjustable tension control, the carriage ensures optimal stretch and application of various packaging films (PE, PVC, stretch film, VCI paper). Options for dual-material wrapping allow for tailored protection layers (e.g., stretch film plus VCI paper).
- Conveyor System: Integrated roller or chain conveyors facilitate the automated movement of coils into and out of the wrapping station.
- Control System: A Programmable Logic Controller (PLC), often from recognized brands like Siemens or Allen-Bradley, manages all machine operations. A Human-Machine Interface (HMI) touch screen provides intuitive control over parameters like rotation speed, wrapping overlap, film tension, and station movement.
3. Performance Data and Technical Specifications
Quantitative data underscores the machine's capabilities and suitability for high-volume operations.
Parameter Comparison:
| Feature | Specification | Benefit |
|---|---|---|
| Max. Coil Weight | 5000 kg | Handles heavy industrial coils |
| Coil Outer Diameter (OD) | Varies (Specify range, e.g., 800-2000 mm) | Accommodates diverse product sizes |
| Coil Inner Diameter (ID) | Varies (Specify range, e.g., 500-800 mm) | Flexibility for different coil cores |
| Coil Width | Varies (Specify range, e.g., 300-1000 mm) | Wraps both narrow and wide coils |
| Ring Speed | Adjustable (e.g., up to 90 RPM) | Balances speed and wrap quality |
| Wrapping Efficiency | Up to 20 coils/hour (approx.) | High throughput for demanding lines |
| Packing Material | Stretch Film, PE, PVC, Paper, VCI | Versatile protection options |
| Material Overlap | Adjustable (e.g., 10%-90%) | Customizable wrap tightness & coverage |
| Control System | PLC + HMI Touch Screen | Precise control & easy operation |
| Power Supply | 480V, 60Hz, 3-Phase (or per spec) | Standard industrial power compatibility |
| Power Consumption | Approx. 2.2 kW | Energy efficient operation |
| Noise Level | < 70 dB | Contributes to a better work environment |
| Machine Dimensions (LWH) | ~2700 x 1900 x 2000 mm | Optimized footprint |
| Compliance | CE, ISO9001 | Meets international safety & quality standards |
4. Operational Workflow and User Experience
From a user perspective, the machine is designed for streamlined integration into existing production lines.
- Loading: The operator initiates the station retraction via the HMI. The crane operator then lowers the coil onto the input conveyor or directly into the cleared wrapping zone.
- Wrapping Cycle: Once the coil is positioned, the wrapping station moves back into place. The operator selects the desired wrapping program on the HMI, and the automated cycle begins. The machine applies the film according to pre-set parameters, cuts the film automatically, and secures the tail.
- Unloading: Upon cycle completion, the wrapped coil is automatically conveyed out of the station or prepared for crane removal.
- Safety Features: Beyond the movable station, standard safety features include emergency stop buttons, safety interlocks on access doors/gates, and potentially light curtains around hazardous areas, ensuring operator protection.

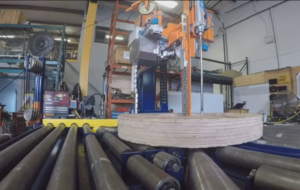

automatic steel coil strapping machine for slit coil 5. Conclusion: A Robust Solution for Modern Coil Packaging
The FHOPE automatic coil wrapping machine with a movable wrapping station represents a targeted engineering solution to a common industry pain point. By separating the loading zone from the wrapping mechanism temporarily, it enhances safety, protects equipment integrity, and supports efficient material flow. Its robust construction, compatibility with various materials, and PLC-based control make it a valuable asset for industries handling heavy coils, aligning with the need for reliable, automated, and safe packaging solutions. The design reflects a practical understanding of real-world operational challenges in the metals and heavy manufacturing sectors.
