Executive summary The FPH-500W wraps flexible rubber and hydraulic hose coils weighing 20–200 kg, utilizing manual front loading and surface-protecting guide rollers. The FPS-400 packs heavy slit steel, wire, and strip coils weighing 100–2,000 kg, featuring a structural top-opening ring frame configured for direct overhead crane or forklift loading.
- FPH-500W — Specialized for elastomeric, plastic, and multi-spiral wire hydraulic hose coils weighing 20–200 kg, engineered to prevent core collapse and outer deformation during high-speed wrapping.
- FPS-400 — Engineered for structural steel, slit coils, copper strips, and wire packs weighing 100–2,000 kg, featuring a segmented, top-opening ring arch that allows overhead gantry cranes, hoists with C-hooks, or fork attachments to lower heavy bundles straight into the packing station.
Because the packaging material traverses both faces and the inner and outer diameters simultaneously in a single pass, surface coverage is continuous. Each revolution of the ring advances the wrapping material along the coil periphery by a distance governed by the ratio of ring rotational speed to roller index speed:
Advance Pitch = Tape Width × (1 – Overlap Ratio)
Variable-frequency drives (VFDs) provide precise electronic synchronization, allowing operators to adjust material overlap continuously between 10% and 90% to meet storage and shipping specifications.
Same principle, different loads
Shared Dimensional Envelope vs. Payload Boundary
While both machines can accommodate coils sharing an outer diameter of 600–1,400 mm and a width of 150–400 mm, total package mass dictates the machine chassis selection.
| Selection Boundary Factor | FPH-500W (Hose / Flexible) | FPS-400 (Steel / Rigid) |
|---|---|---|
| Payload Capacity Envelope | 20–200 kg (Structural limit) | 100–2,000 kg (Heavy structural frame) |
| Coil Inner Diameter (ID) | 300–800 mm | 508 / 610 mm (Standard mill mandrels) |
| Coil Outer Diameter (OD) | 600–1,400 mm | 800–1,400 mm (Base range) |
| Coil Face Width Range | 150–400 mm | 100–400 mm |
| Cradle Roller Architecture | Centering rollers for flexible coils | Heavy-duty cradle rollers for rigid coils |
| Primary Structural Gate | Annular ring with front loading | Top-opening arch with interlocked pins |
| Installed Drive Power | 3.5 kW | 4.0 kW |
| Cycle Wrapping Speed | 28–40 s/pcs | Set by layer count and coil geometry, confirmed per project |
| Pneumatic Requirement | Optional auxiliary line | 5–7 kgf/cm² (0.5–0.7 MPa) shop air required |
Hose coil needs
A hose pipe wrapping machine handles medium-weight, resilient products that require delicate tension management and positive external stabilization:
- Anti-Deformation Support: Bottom support rollers with adjustable centre distance spread the load and limit ovalisation or pinching of soft rubber carcasses.
- Adjustable Lateral Restraint Rollers: Ergonomically adjusted vertical guide rollers stabilize tall, narrow hose coils and stop axial tipping during high acceleration.
- Tension-Regulated Payoff Brake: A friction brake with adjustable pre-load holds a stable wrapping tension, preventing collapse of corrugated walls or non-reinforced conduits; the tension setting is calibrated on the first coil of each product family.
- Dual Operating Modes: Switchable manual jog mode for coil staging and fully automatic wrapping cycles controlled via a unified push-button operator pedestal.
- Adjustable Friction Drive: A friction wheel drives the main orbital ring, with spring tension adjustment to limit rotational slip during rapid stops.
Typical wrap media include stretch film (PE), high-density polyethylene (HDPE) film, and woven polypropylene tape, creating a sealed barrier against moisture, UV degradation, and workshop particulates.
Steel coil needs

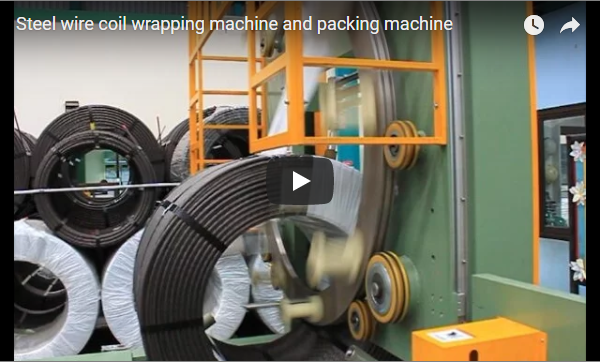

A steel coil packing machine must endure severe dynamic impact loads, sharp slit edges, and continuous industrial operation:
- Top-Opening Ring Architecture: The upper arch of the orbital ring unlocks and tilts open via a pneumatic cylinder. This clear opening allows overhead crane C-hooks or wire rope slings to place coils of up to 2,000 kg directly onto the cradle rollers without machine frame collisions.
- Ring Lock Pins: Mechanical interlocks secure the closed ring before rotation begins, so the ring joint stays closed at the machine’s maximum ring speed of 100 r/min.
- Heavy-Duty Rollers: Thick-wall steel rollers with a protective lining resist contact stress and protect the coil edge from burrs and micro-scratching; the lining grade is specified per coil surface.
- Integrated PLC and HMI Automation: A PLC with an operator touchscreen sets wrap sequences, reinforced tail-end overwraps and motor diagnostics.
- Pneumatic Utility: Operates on a standard factory air supply of 5–7 kgf/cm² (0.5–0.7 MPa) to power ring opening cylinders and safety clamp assemblies.
At a glance
| Engineering Aspect | Hose Pipe Coil Wrapper (FPH-500W) | Steel Coil Packing Machine (FPS-400) |
|---|---|---|
| Payload Profile | Flexible, lightweight hose / pipe (20–200 kg) | Dense, rigid carbon / stainless steel (100–2,000 kg) |
| Material Loading | Manual front insertion / workstation hoist | Overhead crane, hoist with C-hook, or counterbalanced truck |
| Structural Frame | Enclosed annular ring with front access | Hinged top-opening ring arch with safety interlock pins |
| Coil Centering | Adjustable nylon / PU vertical lateral guide rollers | Solid, heavy-gauge steel cradle rollers with heavy PU lining |
| Tension Range | Low to medium, to avoid coil collapse | Medium to high, for tight containment |
| Control System | Relay logic / VFD manual-auto console | Industrial PLC with colour HMI |
Data
| Technical Parameter | FPH-500W (Hose / Pipe) | FPS-400 (Steel / Slit Coil) |
|---|---|---|
| Coil Inner Diameter (ID) | 300–800 mm | 508 / 610 mm (Standard Mandrel Sizes) |
| Coil Outer Diameter (OD) | 600–1,400 mm | 800–1,400 mm |
| Coil Width / Height | 150–400 mm | 100–400 mm |
| Maximum Load Capacity | 200 kg | 2,000 kg |
| Single Cycle Time | 28–40 s/pcs (geometry dependent) | Set by layer count and coil geometry, confirmed per project |
| Ring Rotation Speed | Up to 100 r/min (inverter controlled) | Confirmed per project |
| Overlap Ratio Range | 10%–90% (linear pitch synced) | 10%–90% (linear pitch synced) |
| Installed Power | 3.5 kW, 380V, 60Hz, 3-Phase | 4.0 kW, 380V, 50Hz, 3-Phase |
| Pneumatic Supply Requirement | Not required for the standard cycle | 5–7 kgf/cm² (filtered, dry clean air) |
| Consumable Roll Sizing | Quoted per project against the hose coil geometry | PVC / LLDPE / PE / Paper / HDPE: ID 50 mm, OD 100–450 mm, W 100–150 mm |
Packaging Media Sizing Boundaries and Line Autonomy
The material carriage capacity directly impacts shop-floor changeover intervals:
- FPS-400 Large-Diameter Payoff: Accommodates film, paper, or woven rolls with an outer diameter up to 450 mm and widths of 100–150 mm. A 450 mm OD master roll holds substantially more linear packaging media than standard shop rolls, significantly cutting operator changeover intervals on high-tonnage production lines.
- FPH-500W Compact Payoff: The payoff carriage takes a compact film roll matched to the hose coil width, so the lighter shuttle keeps rotational inertia low and acceleration smooth without jerking flexible hoses; roll size is quoted per project.
- Inventory Isolation: Do not stage hose-line film rolls on the FPS-400 line, nor the large 450 mm OD / 150 mm wide rolls on the hose carriage — the tension arms and clearance envelopes are matched to each machine’s own roll geometry.
Worked example: same size, different coil
Coil Cross-Sectional Area = (π / 4) × (OD² – ID²) Area = (3.1416 / 4) × (0.80² – 0.508²) ≈ 0.300 m² Total Volume = Area × Width = 0.300 m² × 0.30 m ≈ 0.090 m³
Case A: Rubber Hose Coil (Packaged on FPH-500W)
- Typical Pack Weight: ~60 kg for the example coil, taken as a stated project figure for this comparison.
- Chassis & Loading Route: Manual roll-in or jib hoist from the front opening into the annular ring.
- Machine Alignment: 60 kg sits safely within the 20–200 kg capacity of the FPH-500W.
- Kinematic Run: Using 90 mm wide tape at a set 50% overlap, the linear advance pitch along the OD is 45 mm. The 3.5 kW drive system completes the wrapping cycle in 28–40 s/pcs at ring speeds up to 100 r/min without compressing the elastomeric walls.
Case B: Slit Steel Strip Coil (Packaged on FPS-400)
- Typical Steel Pack Weight: ≈707 kg derived from the cross-section above and solid steel at 7,850 kg/m³ (0.090 m³ × 7,850 kg/m³); a real slit coil with tighter coiling lands in the same 700–800 kg band.
- Chassis & Loading Route: Direct top-down drop using an overhead shop crane and C-hook.
- Machine Alignment: At roughly 700–800 kg the coil far exceeds the FPH-500W frame limit of 200 kg and would overload light centering rollers, so it routes exclusively to the FPS-400 (rated for 100–2,000 kg).
- Kinematic Run: Powered by the 4.0 kW drive unit with 5–7 kgf/cm² pneumatic lock verification, the machine utilizes a 150 mm wide LLDPE film roll. At 50% overlap, advance pitch increases to 75 mm, providing rapid containment and structural coil stabilization.
Selection checklist
Provide the following production and material details to determine the appropriate system configuration:
- Core Coil Dimensions: Minimum and maximum ID (Ø, mm), OD (Ø, mm), and Width (mm).
- Total Mass Bounds: Minimum and maximum weight per unit (kg).
- Cross-Sectional Rigidity: Rigid steel strip, wire bundle, soft rubber hose, or crush-sensitive plastic tube.
- Handling Logistics: Loading via overhead factory crane, jib hoist, counterbalanced forklift, or manual transfer.
- Protective Media Specifications: LLDPE stretch film (thickness 20–35 µm), VCI anti-corrosion crepe paper, or woven PP tape.
- Production Target: Coils per hour, shift duration, and upstream cut-to-length line synchronization.
- Utility Standards: Available shop air pressure (kgf/cm² or MPa) and electrical grid configuration (Voltage, Frequency, Phase).
Safety: EN 415-10 and ISO 12100
Both machines comply with EN 415-10 (Safety of Packaging Machines: General Requirements) and are verified by formal risk assessments in accordance with ISO 12100:2010.
- Perimeter Safeguarding: The high-speed rotating orbital ring is enclosed inside high-visibility steel mesh guards. Breaking the optical plane during an active cycle triggers an immediate safe stop.
- Pneumatic Interlock Validation: On the top-opening FPS-400, electrical safety gate switches verify that the locking pins are mechanically seated before the drive inverter can energize the main motor.
- Emergency Interventions: Ergonomic, red mushroom-head emergency stop buttons with positive detent are located on both the main frame and the remote operator pendant.
Engineering FAQ
Q: Can the FPH-500W hose wrapper be used for light steel coils? A: Yes, provided the steel coil does not exceed the structural limit of 200 kg and its outer diameter remains within 1,400 mm. However, sharp slit burrs may quickly groove the light-duty polyurethane rollers, so hardened high-durometer PU roll options are recommended.
Q: How does the top-opening frame on the FPS-400 maintain alignment? A: The opening upper section features precision-ground locating pins and dual heavy-duty pneumatic clamp jaws. When lowered, proximity sensors verify mechanical closure before enabling the safety circuit, preventing ring binding or drive misalignment.
Q: Why is film overlap higher on the coil inner diameter? A: This is an inherent property of toroidal wrapping geometry. Because the inner circumference (π × ID) is significantly shorter than the outer circumference (π × OD), an advance pitch set for 50% overlap at the outer perimeter naturally converges inside the bore, creating a thicker, multi-layer protective barrier against internal moisture and abrasion.
Q: Can these machines apply dual-layer materials in a single step? A: Yes. An optional dual-material carriage allows simultaneous application of VCI anti-rust paper and protective outer stretch film in a single automated cycle.
Next step
- Submit Coil Dimensions: Send your minimum/maximum ID, OD, width, and package weights to info@fhopepack.com.
- Engineering Review: Our packaging team confirms the correct machine frame size, roll width, and roller configuration.
- Formal Proposal: Receive an itemized engineering layout, functional specification, and price quotation within 24–48 hours.
