Vertical Pallet Strapping Machine: Engineering and Design Overview

The Vertical Pallet Strapping Machine is an engineered system designed for the application of vertical straps to palletized goods, enhancing load stability for handling and transit. Its design focuses on adaptability to diverse product dimensions, operational efficiency, and the integration of reliable industrial-grade components.

Key Technical Features

The machine incorporates several key engineering features to ensure consistent performance and cargo integrity:

• Flexible Strapping Height Adjustment: Enables strap application at any required vertical position, accommodating a wide range of cargo heights and thereby optimizing production line throughput.
• Lance Passage Monitoring System: Includes an integrated detection system for the strap lance pathway, designed to prevent accidental damage to the lance mechanism during the strapping cycle.

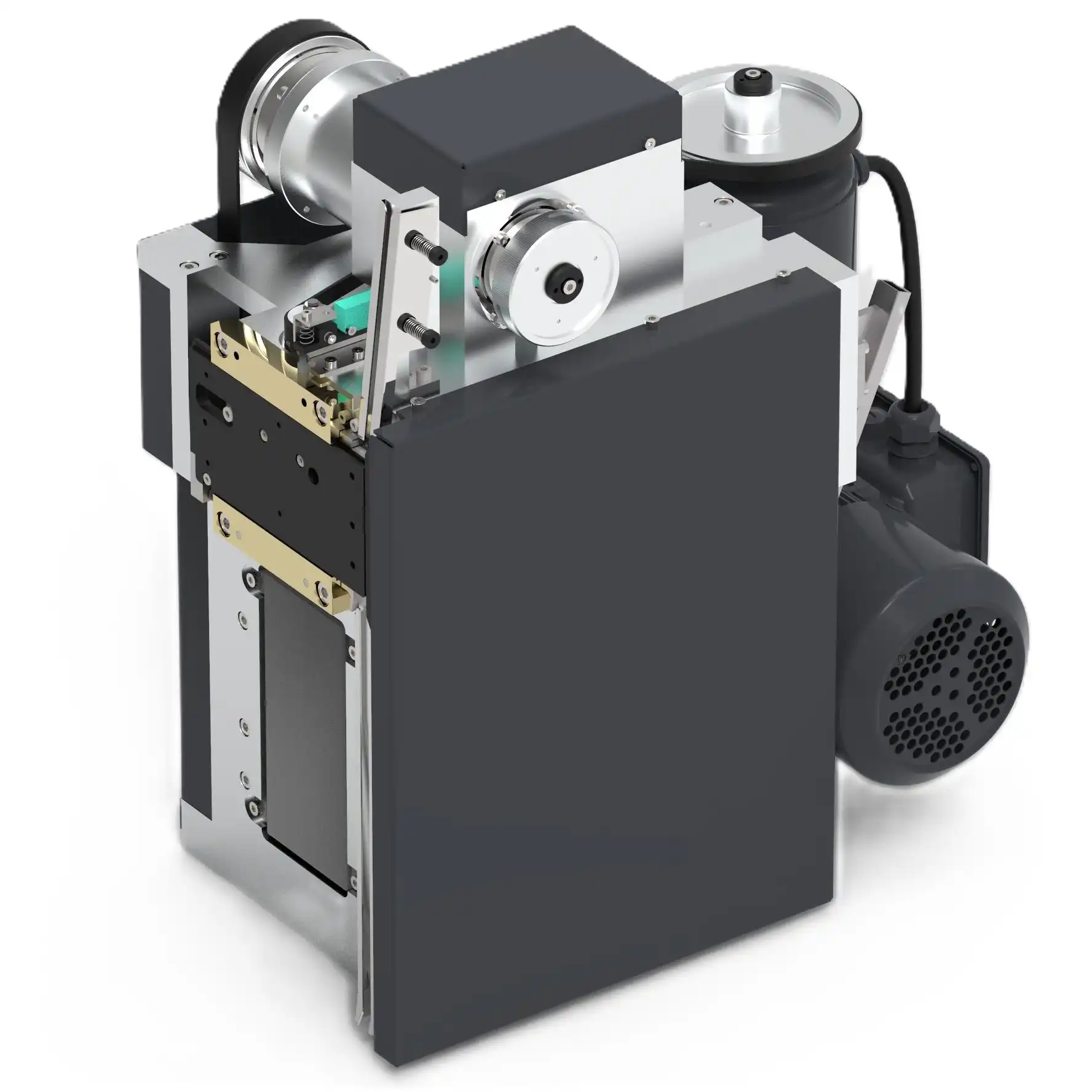

• Floating Strapping Head Design: The strapping head utilizes a floating mechanism to ensure the application of uniform tension consistently across all sides of the palletized load.
• Mechanical Strap Dispenser Unit: Features a robust, mechanically operated strap reel dispenser, engineered for simplicity and dependable strap feeding in continuous operation.
• Human-Machine Interface (HMI) Control: Machine operations and parameter adjustments are managed via an intuitive Human-Machine Interface (HMI), facilitating straightforward setup and ease of use.
• Optional Horizontal Edge Protection System: An optional mechanism for the application of horizontal edge protectors can be integrated, providing enhanced protection for the corners and edges of palletized goods.

Main Technical Specifications

Principal Component Configuration

The machine is constructed utilizing components from recognized industrial suppliers to ensure performance and service life:

This Vertical Pallet Strapping Machine is intended for industrial operations seeking an effective and reliable solution for securing palletized loads. The detailed specifications and features highlight its capability to adapt to various packaging requirements and contribute to overall operational efficiency and load security.
