Program Controls
Controller: PLC system
Tension control: Pre-stretch controller
Operator interface: Separate buttons/Display
Wrap settings: Re-wrap function, overwrap and overlap adjustments
Wrap counters: Independent top, middle and bottom
Cycle counters: Total cycle counter and resettable Counter
Emergency stop: Red mushroom head
Electrical disconnect: Lockable
Electrical enclosure: European approved

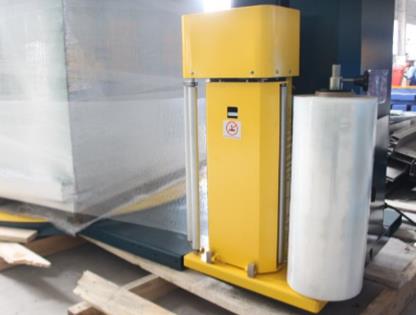

Film Delivery System
Stretch Film (LLDPE):
Thickness: 0.025mm ,
Width: 500mm
Length : 500m-1500m,
Weight: 15kg/Roll
Film capacity: 500mm width x 76mm dia.
Stretch type: pre-stretch series
Pre-stretch level: 250% (optional 100% to 300%)
Load height sensor: photocell sensor
Force -control: variable
Film threading: Fhope design, W film threading pattern.
Turntable
Bearing type: ring gear
Start & stop mode: soft start & stop
Diameter: 1500mm
Maximum rotating diameter: 2000mm
Maximum load weight: 1800kg
Turntable height: 80mm
Turntable plate thickness: 10mm
Structure

Tension control: Pre-stretch controller
Operator interface: Separate buttons/Display
Wrap settings: Re-wrap function, overwrap and overlap adjustments
Wrap counters: Independent top, middle and bottom
Cycle counters: Total cycle counter and resettable Counter
Emergency stop: Red mushroom head
Electrical disconnect: Lockable
Electrical enclosure: European approved
Specification
Item\data | M-type |
Size of the product to be wrapped(adjustable) | |
MAX load size(L*W*H) | 1500mm*1500mm |
Min load size(L*W*H) | 500 * 500 * 500 mm |
Max load height | 1800mm |
Max weight | 2000kg |
Machine Specification | |
Turntable rotation speed | 13r/min(adjustable) |
Turntable diameter | 2000mm |
Turntable height | 100mm |
Carriage Up/down speed |
adjustable |
Power supply voltage (adjustable) |
Standard 220 Volt 1 Ph-50 Hz |
Tower motor power | 0.4w |
Pre-stretch motor power | 0.35w |
Turntable motor power | 0.75w |
Packing efficiency | 20-40 loads/hour |
Forklifting | front & rear |
Machine weight | 650kg |
PLC control | ▲ |
Film sealer | ▲ |
HMI | / |
Pre-stretch | ▲ |
Stretch Film Roll detail | |
External diameter | 150-250mm |
Internal diameter | 76 |
Film roll height | 500m |
Film thickness | 0.025mm |
1.“▲”means “Yes”, “ /”means “No”
2. Standard machine configuration listed above. Please contact your sales representative for other available configuration.
Performance Features
More Convenient
- Packaging method: bottom, middle and top packaging layer can be set from 0-99 winds.
- Turntable speed adjusted by inverter freely.
- Wrapping circle counters: Independent top and bottom.
- Film carriage speed can be adjusted by inverter.
- Wrap settings: re-wrap function, overwrap and overlap adjustment
- Front and rear portable forklift
- Top press, pre-stretch and access ramp for your consideration
- Availiable customized service on extended height and turntable size
Safer
- Safety stop: Red mushroom head.
- Turntable plate thickness: 10mm is much more rigid t oensure anti-deformation performance when load heavy goods.
- Easy film loading carriage with lock door control for guaranteed locking.
- Film loading safety shut-off switch automatically shuts down power during stretch film loading by operator.
More Effective
- Up to 40-45 loads per hour
- Eliminate a large amount of manual operation
- Adjustable film tension
- Quick and easy film replacement
- Easy turntable alignment at end of cycle
More Reliable
- Reinforced & rugged structure in tower and turntable.
- Heavy-Duty structural steel tubing and frame.
- Guaranteed for life Pre-stretch rollers with 250% (100%-300%) pre-stretch ratio
- 1 year Warranty & lifelong maintenance and lifetime technical support
