Automatic wire cable coiling and wrapping machine

An automatic cable coiling and wrapping machine is a specialized handling equipment that is used to shape and secure cables into coils or packages for storage, transportation, or other purposes. These machines may be available in online or offline versions, with the online version typically being used in conjunction with a cable manufacturing process and the offline version being used to package c

Get Free Quote Watch Demo

CE Certified

ISO 9001

2 Year Warranty

Cable Automatic Coiling and Wrapping Machine

98%

Efficiency Rate

2 Year

Full Warranty

Cable Automatic Coiling and Wrapping Machine

Visual Details

Click to enlarge

Cable Automatic Coiling and Wrapping Machine - Detail 2

Click to enlarge

Cable Automatic Coiling and Wrapping Machine - Detail 3

Click to enlarge

Cable Automatic Coiling and Wrapping Machine - Detail 4

Click to enlarge

See It In Action

Watch How It Works

Discover how our automated packaging solutions optimize your production line efficiency. This video demonstrates the seamless operation designed for maximum protection.

High Throughput

Up to 60 coils per hour

Consistent Quality

Every wrap meets spec

Request A Quote

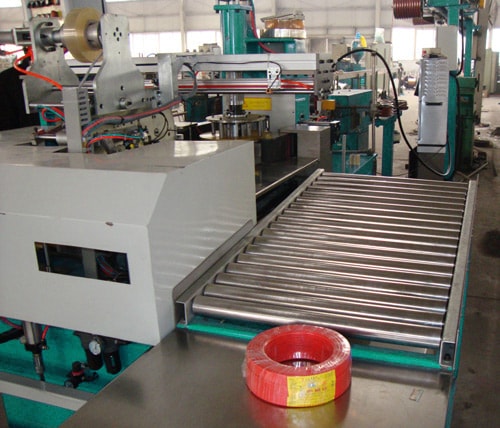

Automatic Cable Coiling and Wrapping Machine

Description:
The automatic cable coiling and wrapping machine can be online / offline cable packaging. All conform to CE guidelines and have been designed using the latest technology and design criteria for industrial use. Realize full automation of automatic coiling, conveying and wrapping packing with PVC film.

Automatic coiling machine
Automatic calculating the cable length, coil making and cutting. And then hold the cable coil to move it to the next procession station automatically.

Features:
1. PLC & HMI control program are used for automatic operation.
2. Parameters can be set on the control program with English.
3. Coiling OD cab be adjustable.
4. Cable cutting length can be adjusted as setting.
5. Two protective guards to fix and move the coiled cable.
6. Automatic error detection function, it will alarm when trouble occurs.
7. Detecting the cable position automatic by sensor.
8. Pressing device making the cable coil fixed and stable.
9. Tension control for avoiding deforming in coiling.
10. Tension control are included in the packing line.
11. It is necessary to replace different coil reels according to different inner diameter.
Technical Parameters:

Coil size	ID: 140-200mm OD: 240-460mm Height : 60-100mm Weight: 50kg（max）
Single cable diameter	3-15mm
Coiling speed	2-2.5 coil/min
Air supply	6bar
Coil feed style mode	Hold coil type
Meter counter	0.01m-100m
Power voltage	AC 380V, 50HZ, 3 phase

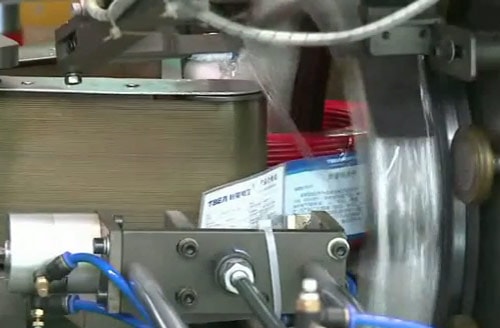

Automatic wrapping machine:
Cable Wrapping packing with PP/PE/PVC/stretch film and so on. The wrapped package is well-protected, sealed and make items tidy.

Automatic label attached:

Features:
1.Friction between driving wheels and ring is adjustable.
2.Speed of the ring is adjustable by inverter.
3.Soft start and start.
4.Wrapping position reset.
5.Packing material tension could be adjusted.
6.Electric loop control :adopt Mitsubishi micro-computer programme controller(PLC)
7.Operation panel:Graphic operator Interface
8.Meter and switch on operation panel:touch screen, speed button, emergent switch.

Technical Data:
Packing material:PVC/PE/PP film
ID:50mm OD:100-350mm Width:50mm

Out-feeding conveyor:

FHOPE PACKING is specialized in packaging machinery industry for more than ten years, with rich design and production experience. Our professional technical team and after-sales team, be ready to serve customers anytime from all over the world. If our cable automatic packing line is exactly what you are looking for, In order to achieve the optimization of packaging as soon as possible, to achieve maximum benefits and market competitiveness,Please do not hesitate to contact us at any time.
