Coil Wrapping Machine
The coil wrapping machine manufacturer provides the different coil wrapping solution per package shape, packing material...
The coil wrapping machine manufacturer provides the different coil wrapping solution per package shape, packing material...

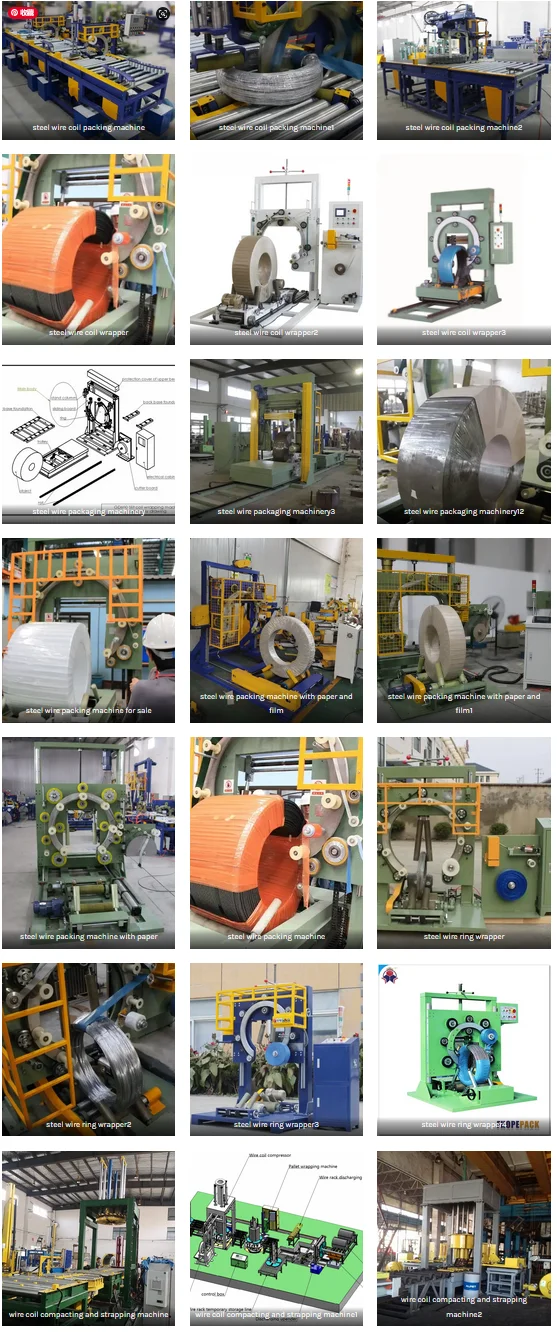

Fhopepack specializes in providing comprehensive coil wrapping machines, offering a range of machines designed for efficient and uniform wrapping of various products like hose coils, pipe coils, wire coils, and more. With over 1200 sets of coil wrapping equipment delivered worldwide, they emphasize custom designs and automation to enhance coil wrapping speed and efficiency. Their solutions cater to different coil sizes, materials, and handling requirements, ensuring safety and durability in heavy-duty applications. Besides the semiauto coil wrapping solution, FhopePack providing the automation turnkey packing solution includes the ERP system from production, packing, logistic and selling.
CONTACT US FOR THE SOLUTION
The hose coil packing solution streamlines your packaging process with state-of-the-art technology designed for both vertical and horizontal wrapping applications. Primarily for automatic hose packaging, our horizontal wrapping solution integrates seamlessly with automatic coilers, providing an efficient, through-eye wrapping system. This advanced packaging solution is engineered to enhance productivity and packaging consistency across a wide range of hose coil sizes.
Key Features:
Automatic Film Cutting : Eliminates manual cutting, increasing efficiency and consistency.
User Convenience: Easy-to-use interface reduces labor and error.
High Throughput: Accommodates high-volume production without sacrificing quality.
Customizable Wrapping Profiles: Offers versatile wrapping options for various product dimensions.

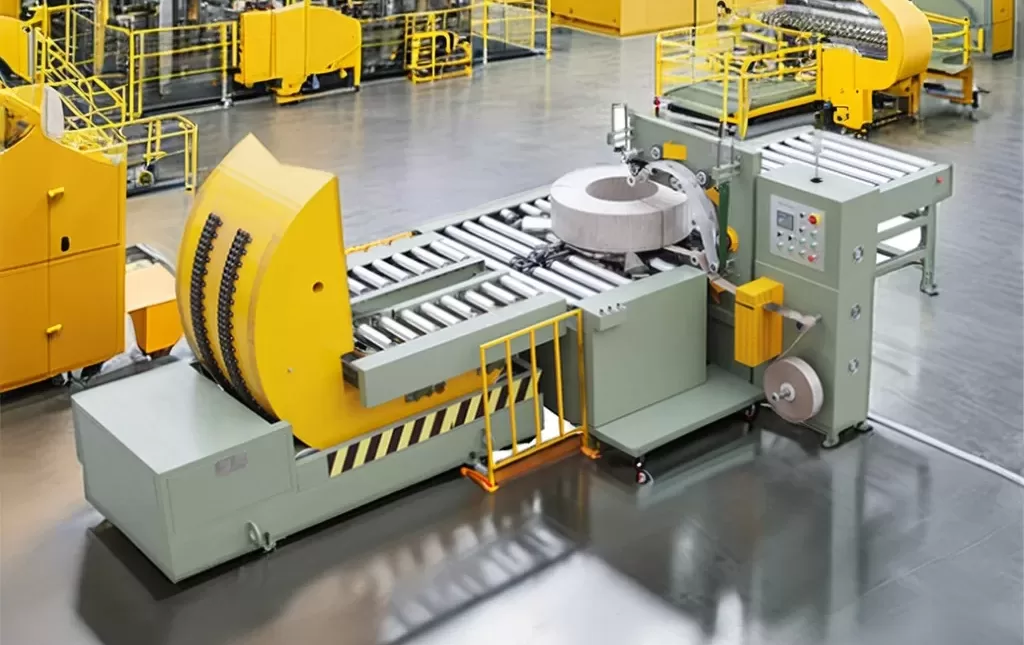

The Steel Coil Packaging Solution is specifically engineered to cater to the demanding requirements of steel coil handling and packaging. Recognizing the diverse handling methods employed in factories, our machines are designed to be compatible with cranes, forklifts, and conveyor systems. These robust machines are built to withstand heavy loads and ensure the highest safety standards to prevent any incidents of coil drops or compactions with the machinery.
Key Features:
Handling Method Compatibility: Compatible with crane, forklift, and conveyor operations, ensuring seamless integration into existing workflows.
Durability for Heavy Loads: Reinforced construction to handle the heavy weight of steel coils, enhancing longevity and safety.
Safety-First Design: Crafted with safety as the paramount consideration, reducing the risk of accidents and machine damage.
Operation Efficiency: Efficient wrapping process that maintains high-quality standards under rigorous production demands.
The Steel Wire Coil Packaging Solution is designed to accommodate the common practice of winding steel wire into coils. This efficient system not only handles the rewinding of smaller coils but also expertly packages them using the globally recognized eye-through wrapping method. This method ensures the wire coil is tightly sealed with film on the inside while being safeguarded on the outside with materials like knitted belts or paper, making it robust against various weather conditions, from rain to shine.
Key Features:
Weather-Resistant Packaging: Ensures protection against all weather conditions, suitable for both wet and dry climates.
Automated Process: Reduces the need for manual intervention, streamlining the wrapping cycle for efficiency and consistency.
Ease of Use: Features an intuitive control panel and programmable settings for user-friendly operation.
Versatile Adaptability: Customizable wrapping profiles allow for flexibility in packaging various coil sizes and shapes.
The Copper Coil Packing Machine is tailored for high-value and precision copper products, meeting the strict packaging standards demanded by end-users. Unlike other coil packing machines, it specifically addresses the need to protect copper coils from impacts during transport. By wrapping bubble film around the coil section, the machine ensures the copper coil's shape remains intact. This machine is suitable for packaging copper strip coils and copper tube coils, providing robust protection. Additionally, the wrapped coils are then placed in wooden boxes for enhanced safety during handling and shipping.
Key Features:
Impact Protection: Wraps coils with bubble film, preventing deformation and safeguarding the coil's integrity.
Tailored for Copper Products: Designed specifically for the delicate nature of copper coils, ensuring precise handling and packaging.
Enhanced Safety Packaging: Includes filling the packed coil into wooden boxes for additional protection against external forces.
Specialized Operation: Caters to the unique requirements of copper coil packaging with specialized settings and operations.
The Plastic Pipe Packing Machine is designed to address the packaging needs of heavier pipe coils, much like those used for hoses but with a greater emphasis on accommodating the additional weight. This machine facilitates ground-level coil rolling in and out, which can be done manually, making it a robust solution for handling heavy products. In times of labor scarcity, impacting round-the-clock production, the integration of a horizontal wrapper with a conveyor becomes a preferred option. The machine predominantly uses film materials for wrapping, including LLDPE stretch film, PE film, and PVC film, which account for 90% of the packaging material.
Key Features:
Heavy-Duty Handling: This Designed to manage the greater weight of pipe coils compared to hoses, ensuring stability and safety.
Labor-Efficient: The combination of stretch wrapping and strapping creates a protective shield that maintains the integrity of the products against external elements and handling stresses.
Adaptive to Labor Shortages: The conveyor-equipped horizontal wrapper addresses labor shortages by enabling automated packaging processes.
Film Versatility：Compatible with a variety of film materials such as LLDPE, PE, and PVC, catering to different packaging preferences and requirements.
The Cable Coiling and Packing Machine represents the pinnacle of automation within the coil packaging industry. Designed to keep up with the relentless pace of 24-hour cable wire production, this machine obviates the need for the traditional two-person team required for coiling, binding, and wrapping. Cable wire factories, often operating with dozens of extruders, are seeking automated solutions to integrate with coiling machines to reduce labor costs significantly. The machine is a manifestation of technical advancements driven by market demand, featuring automatic coiling, strapping, label feeding, wrapping, or shrinking capabilities. With this automated system, a single operator can effectively monitor and manage 5-6 cable extruders, dramatically slashing costs and streamlining operations.
Key Features:
Labor Efficiency: Reduces the need for manual coiling and packing, allowing one operator to oversee multiple extruders.
Advanced Automation: Incorporates automatic coiling, strapping, and label feeding, minimizing manual intervention.
Cost Saving: Significantly lowers labor expenses by automating the entire cable coil packaging process.
Production Optimization: Enables continuous and efficient operation, matching the high-speed demands of cable production lines.
FHOPE presents two distinct bearing packing solutions tailored to the size of the bearings. For small bearings, with an outer diameter range of 50-150 mm, the small bearing packing machine offers a high-speed bag filling and sealing solution. For larger bearings, FHOPE focuses on the big side bearing packing machine, catering to bearings with a maximum outer diameter of up to 7000 mm. This machine uses an eye-through ring wrapping technique specifically designed to protect against moisture by integrating automatic oil injection with wrapping, accomplishing both tasks simultaneously. Additionally, it's engineered to prevent scratching and damage to bearings, particularly those with strict surface treatment requirements.
Key Features:
Delicate Handling: Designed to prevent surface damage, ensuring bearings with strict surface treatments are handled with care.
Moisture Protection: Features automatic oil injecting during the wrapping process for effective moisture barrier and protection.
Large Capacity: Capable of wrapping bearings up to 7000 mm in outer diameter, providing a solution for large bearing packing needs.
Dual-Function Operation: Simultaneously injects oil and wraps the bearing, streamlining the process and saving time.
The Semi-Auto Tyre Packing Machine is swiftly becoming a standard in the tyre industry, known for its rapid adoption rate. This machine is not just a step forward in the automation of tyre packaging but also a leap into the digital transformation of the entire packaging system. It encompasses an integrated system that includes data collection, packaging, conveyor systems, labeling, and storage, all interconnected to offer seamless data transfer, sharing, and monitoring for each tyre package movement. From production to storage, delivery, and sales, the data is connected, ensuring a smooth flow of information. FHOPE is at the forefront of this innovation, offering solutions that can transform your factory into a fully digitalized tyre manufacturing hub post-production.
Key Features:
Digital Integration: Enables data collection and connectivity throughout the packaging process for better tracking and management.
Automation Efficiency: Semi-automatic operations reduce labor while increasing packaging consistency and throughput.
System Synergy: Combines with conveyor and labeling systems to create a cohesive packaging and storage solution.
Digital Monitoring: Facilitates real-time monitoring and sharing of data for each tyre's packaging journey, enhancing operational transparency.
|
|
|
|
|
|
|
For the coil packaging solution, the coil eye throght wrapping has thess coil status:
（1）Vertical type coil wrapping: it is coil ID toward to wall with coil standing for wrapping that is normally for ecomomic solution. This kind of packing way is for coil loading by rolling in&out, forklift or crane...
（2）Horizontal type coil wrapping: It is coil ID to the sky for packing, normally it is the solution for autoamtic coil packing machine , coil packing line...or some special coil such as copper, hose... The horizontal type wrapping is able provide the good packing for irregular coil shape, light weight and small ID packaging.
（3）Packaging Materials: There are many coil packing materials in the market that is vary from different coil package and different company. Following is the tipical packing material for coil packing.
Stretch film: It is an economic packing material in name of LLDPE which is able provide a sealed packaging for coil with good tension control and enough overlap rage. So it is the first choice for the water or moisture isolated packaging.
Paper: The strength of the paper is week so the original paper can not be used to coil wrapping. But after reinforce treatment with pp belts, PE film covering, the paper works for steel coil, wire coi, copper coil...packaging. After packaging by paper the surface of the package is wear-resisting. Also the paper provides the VCI formula that is for moisture proved packaging for sea worth package or raining season package.
HDPE/PE: It is an no glue type film, the thickness is >50microm that is for protecting the package from scraping.
Wolven knit belt: Usually the row material is PP, the knit belt is flixiable but it is stronger than paper and film. So it is popular in the razor wire , steel coil , wrire coil packaging. Because of it is able provide the rough package from scrapping in transportation.
The ring is an essential part of the coil packing machine, designed to secure the packing material during the wrapping process. For facilities dealing with a range of coil sizes, selecting a ring that can accommodate the largest size is crucial, as it ensures compatibility with smaller coils as well.
Feedback from the industry suggests that choosing the right packing material is critical to prevent in-transit damage, which is a significant expense ，It's essential to select the appropriate material, whether it's stretch film, bubble film, or another type, that works best with your machinery and provides optimal protection for your loads.
The tightness of the wrap must be carefully calibrated. The containment force—the force exerted by the wrap multiplied by the number of layers—should be adjusted according to the load's characteristics, whether heavy, light, or unstable. The wrapping pattern should be determined based on the specific requirements of the load, including the combination of packing materials and the wrap force setting.
Avoid low-quality films that are more likely to fail. Instead, invest in higher-quality films that can stretch adequately and withstand the rigors of transport. Experiment with the tension settings to find the optimal containment force for your products.
Don’t buy “cheap” film. Low quality has higher risk for flaws (gels, nicks, tears). “Cheap” film may be less resistant to tear and doesn’t have the ability to stretch as far as performance films. Setting the wrap force depends on different package size. Upon your film and product, play around with the tension of the film to determine the best setting. Make sure the machine you buy will get the job done. Don’t guess, test. Get help if you’re not sure.
It is an important point to choose the proper coil packing machine. The machine version need to be designed fit for handling way using in your factory. There are following types handling way vary from the coil weight and size, such as manual loading by light products, conveyor loading for connecting with production line, crane loading for heavy products, forklifter for coil moving...
（1）By packing way: Coil packing solution divided into two way: eye through or not. The Coil packaging machine is able wrapping & covering the packing material over all surfaces of coils by well controled overlap .
（2）By different material, the packaging layer is able eliminates most of the air, dust, moisture from outsize.
（3）By choose the proper packing material : the package is able reducing the corrosion, water spots, dust and rust. It protecting the surface of coil in storage and transportation.（4）Browse your entire range of coil packaging requirement in size, speed and packing material and selecting the right solution that are suitable for you.
（5）By application : Find the wrapping machine/packing machine per your products name, such as wire coil wrapping machine, hose wrapping machine, bearing packing machine...
（6）By industry: Find the right solution to your packaging needs by selecting your industry/market segment.
Fhope capable provides total coil packing solution, not matter small ID coil, light packaging, heavy, big size... you can find the solution in our product list.Now the Max.coil we had handling is upto 35T. Local service such as engineer installation, commissioning and people training is avaiable from Fhope.
A coil wrapping machine is designed for efficiently wrapping various types of coils, such as steel, wire, and cable coils, in protective material to ensure safe storage and transport.
Yes, most coil wrapping machines are versatile and can accommodate a range of coil sizes and types, with adjustable settings for each.
These machines offer increased packaging efficiency, better protection for the coils, and significant labor savings.
Absolutely. Coil wrapping machines are tailored to handle different materials, ensuring the right balance of delicacy and strength in the wrapping process.
Key factors include the types of coils you're wrapping, the machine's capacity, its integration with your production line, and the level of automation it provides.
The machine uses precise wrapping techniques and appropriate materials to ensure coils are securely wrapped, preventing damage during handling and transit.
Coil wrapping machines range from semi-automatic to fully automatic models, depending on your production needs and budget.
Yes, many coil wrapping machines are designed for easy integration into existing production lines, enhancing workflow efficiency.
These machines are equipped with settings and mechanisms that adjust the wrapping pressure and material to accommodate sensitive coils.
Regular maintenance typically includes cleaning, lubrication, and occasional part replacement, which ensures long-term, reliable operation.
Yes, many manufacturers offer customizable solutions to meet specific packaging needs and requirements.
With proper maintenance, coil wrapping machines can last for many years, often exceeding a decade of service.
By automating the wrapping process, these machines reduce labor costs and increase packaging speed, leading to overall cost efficiency.
Common materials include stretch film, paper, and specialized foils, depending on the type of coil and required protection level.
Most machines have a compact design and can be adjusted to fit various factory layouts and space constraints.
Manufacturers often provide comprehensive training for operators, ensuring safe and efficient use of the machines.
Yes, considerations include the type of wrapping materials used and the machine's energy efficiency. Many models are designed to be as eco-friendly as possible.
Manufacturers usually offer after-sales support, including maintenance services, spare parts, and technical assistance.
