Automatic pallet stretch wrapping machine B200

The automatic ring drawing machine is designed according to the requirements of the high speed tray packing. This machine can wrap a package of good and powerful pallets for stretching and packing. The automatic winding packer B200 series is used for winding the tray with a winding film. It can meet the highest requirements for capacity and adaptability.

Get Free Quote Watch Demo

CE Certified

ISO 9001

2 Year Warranty

98%

Efficiency Rate

2 Year

Full Warranty

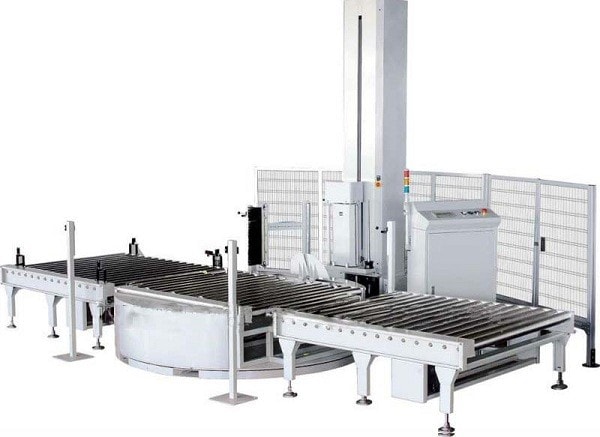

Automatic Stretch Wrapping Machine B200

Visual Details

Click to enlarge

Automatic Stretch Wrapping Machine B200 - Detail 2

Click to enlarge

Automatic Stretch Wrapping Machine B200 - Detail 3

Click to enlarge

Automatic Stretch Wrapping Machine B200 - Detail 4

Click to enlarge

See It In Action

Watch How It Works

Discover how our automated packaging solutions optimize your production line efficiency. This video demonstrates the seamless operation designed for maximum protection.

High Throughput

Up to 60 coils per hour

Consistent Quality

Every wrap meets spec

Request A Quote

Description:

Automatic pallet stretch wrapping machine B200 series is used to wrap stretch film around a loaded pallet. It can meet the highest demands regarding capacity, adaptability from customer to customer and is easy to maintain and economical. Film provides extra support while the products are being transported & storaged to protect them from being damaged. Additionally , wrapped loads can easily be separated and identified. Automatic stretch pallet wrapper is widely used in chemical industry, electronic industry building field, food industry, etc.

Control

OMRON PLC with push button interface.
Measure packing height automatically by sensor.
The film device can move up and down.
Wrapping break is adjustable.
Wrapping layers and zones are adjustable.
Load and unload flim easily.
The turntable speed is availble in 3-12rpm.
All the speeds are driven by motors.
Load film during 10sec.
Flim device can be controled manually and automatically.
Turntable has a jog button.

Turntable

2000KG weight capacity
Turntable, loading and unloading conveyor lines are in a horizontal line. Easy and convenient.
Soft start and soft stop

Film carriage

Pre-stretch system can be up to 200% of film consumption. (Prestretch ratio can be specially made according to your requirements.)
The door of film carriage is open or not as flimarriage door opens for effortless roll change and thread film.
Film delivery is driven by separate DC Drive Motor
The bar of flim carriage moves up and dwon.
The turntable has double-chain motor make coveyor stable and safe.

Option

  a. Ramp
b. Pneumatic top plate
c. Pneumatic film grab and cut off system
d. Packing height: 2800mm
e. Turntable diameter: 1800mm, 2000mm
f. Turntable capacity: 2500kg- 3000kg
g. Machine color

The automatic pallet stretch wrapping machine is a fully round stretch packaging machine. Its unique and special design perfectly connects the production line and the conveying line with the packaging device. You can free from arranging the forklift truck to deliver the product to the warehouse, the pallet stretch wrapping machine can deliver the product directly and automatically to your destination. It is not only convenient, but also very safe. It can cut down large expense to some degree.
