Coil Wrapping Machine For Pipe Coil

Essential Guide to Coil Wrapping Machines for Pipe Coils: Types, Benefits, and Key Considerations

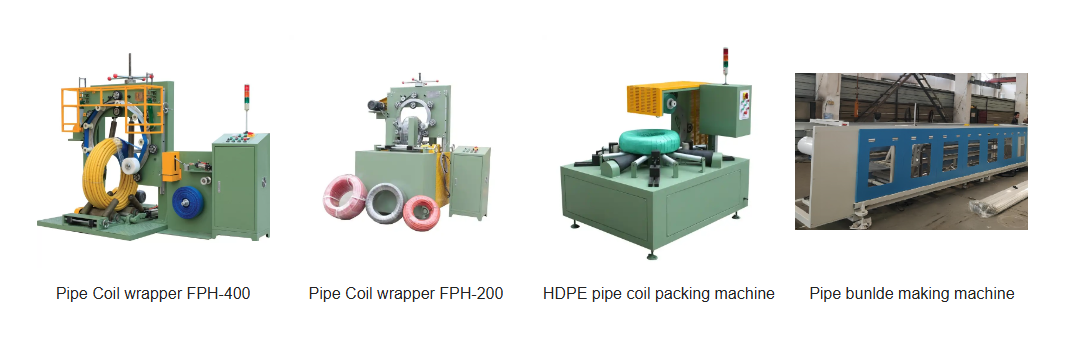

Coil wrapping machines for pipe coils are vital for efficiently and securely packaging pipe coils. They come in various models to accommodate different production scales and levels of automation. Each type has distinct mechanical features designed to enhance productivity, provide protection, and offer flexibility based on coil size and production volume. Here’s an in-depth look at the types of pipe coil wrapping machines and their structural specifics:

• Manual Pipe Coil Wrapping Machines: These machines are a cost-effective option with a simple mechanical design, mainly used for small-scale operations. Operators handle tasks such as loading, positioning, and feeding the wrap material. The machine typically includes a rotating spindle or small turntable that allows the pipe coil to turn while the wrap is applied manually. Due to their simple construction, manual machines are lightweight and easy to maintain, but they depend on the operator’s precision. They are suitable for businesses with lower production needs or where budget constraints limit the investment in automation.

This type of high-speed horizontal stretch wrapping machine is specifically engineered for handling pipe coils, offering a streamlined, automated wrapping solution.

• Semi-Automatic Pipe Coil Wrapping Machines: Semi-automatic machines offer a balance between cost and productivity, combining manual and automated processes. Operators load and unload the pipe coils, while the machine manages the wrapping process using a powered rotation system. These machines often include a ring or arm that moves along the circumference of the coil, applying the wrap with consistent tension. Some advanced models feature automatic film feeding, which reduces the operator’s material handling tasks, and sensors that monitor wrapping tension. With this structural design, semi-automatic machines are ideal for medium-scale operations, delivering both speed and efficiency without the full cost of automation.

• Fully Automatic Pipe Coil Wrapping Machines: Designed for high-volume production, fully automated machines require minimal human intervention due to advanced mechanical systems. They feature automatic loading and unloading systems or conveyors, allowing pipe coils to move seamlessly through the wrapping process. Key structural components include a large rotating ring or frame that wraps around the stationary coil automatically, with built-in tension controls and film cutters ensuring tight, precise wrapping. Equipped with programmable control panels, these machines allow operators to adjust parameters such as wrapping speed and tension, making them versatile for high-output facilities where speed and consistency are essential.

• Horizontal Wrapping Machines: Horizontal wrapping machines are specially designed for larger pipe coils, using a horizontal spindle or rotating arm to apply the wrap around the coil’s circumference. These machines have a broad structure to accommodate larger coils, preventing deformation during wrapping. Adjustable rollers secure the coil in place, ensuring uniform wrapping across the entire surface. Horizontal wrapping machines are ideal for applications requiring stability and high precision for large pipe coils.

• Vertical Wrapping Machines: Vertical wrapping machines are compact, ideal for smaller coils and tight spaces, featuring a vertical rotating mechanism that wraps the pipe coil as it stands upright. Commonly used in settings with limited floor space, these machines are designed to handle smaller coils efficiently. With the coil positioned vertically, these machines allow for faster loading and unloading, making them useful in facilities focused on space optimization and swift operations.

The machine can be modified to meet the specific needs of a company, ensuring that it can wrap coils in the desired manner.

This fully automated pipe coiling and strapping systems is designed to operate seamlessly without an accumulator, directly synchronizing with the extrusion process.

Parameters：

Model	Voltage (V/Hz)	Power (KW)	Coil ID (mm)	Coil OD (mm)	Coil Width (mm)	Coil Weight (Kg)	Packing Material
FPW-300	customized	1.5	508-610	600-1200	100-300	20-1000	PVC/LLDPE/PE/PAPER/HDPE
FPS-400	customized	4.0	508-610	800-1400	100-400	100-2000	PVC/LLDPE/PE/PAPER/HDPE
FPS-500	customizable	2.0	508-610	700-1400	200-500	100-1000	PVC/LLDPE/PE/PAPER/HDPE
FPS-600	customizable	7.5	700-1100	1000-1500	200-600	200-2000	Crepe paper/plastic knit tape
FPS-800	customizable	7.5	508	800-1400	400-800	200-1000	PVC/LLDPE/PE/PAPER/HDPE
FPCA-1000	customizable	4.5	508-610	700-1600	20-400	100-2000	PVC/LLDPE/PE/PAPER/HDPE
