Description

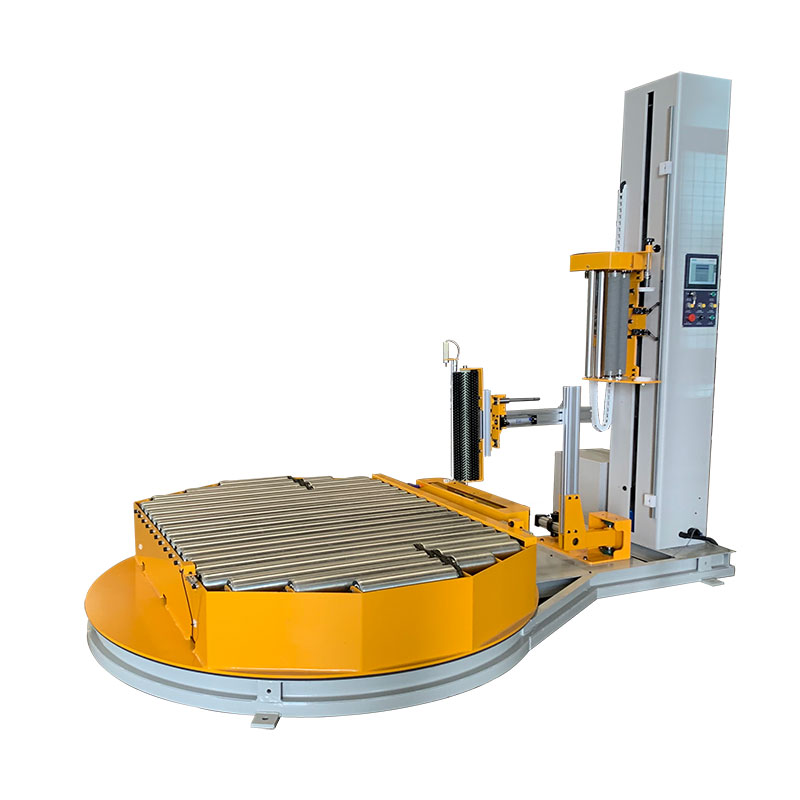

The Chinese pallet wrapper is used to wrap the stretching film around a loading tray. The film provides additional support, while the transport and storage of the products protect them from tips, leaks, or damage. In addition, the load of the package can be easily separated and identified. The telescopic tray packaging machine is widely used in chemical, electronic, building materials, household electrical appliances, paper, food, beverage and other industries.
Program Controls
Film Delivery System
Stretch Film (LLDPE):
Thickness: 0.025mm ,
Width: 500mm
Length : 500m-1500m,
Weight: 15kg/Roll
Film capacity: 500mm width x 76mm dia.
Stretch type: Pre-stretch
Pre-stretch level: 250% (optional 100% to 300%)
Load height sensor: Photocell sensor
Force -control: Variable
Film threading: Fhope design, W film threading pattern.
Turntable
Bearing type: Ring gear
Start & stop mode: Soft start & stop
Diameter: 1500mm
Maximum turning diameter: 2000mm
Maximum load weight: 1800kg
Turntable elevation: 80mm
Turntable plate thickness: 10mm (Anti-deformation)
Structure
Controller: PLC system
Tension control: Pre-stretch controller
Operator interface: Separate buttons/Display
Wrap settings: Re-wrap function, overwrap and overlap adjustments
Wrap counters: Independent top, middle and bottom
Cycle counters: Total cycle counter and resettable Counter
Emergency stop: Red mushroom head
Electrical disconnect: Lockable
Electrical enclosure: European approved
Note:
1.“▲”means “Yes”, “ /”means “No”
2. Standard machine configuration listed above.
Please contact your sales representative for other available configuration.
Performance Features
More Convenient
-
Wrapping method: Bottom, middle and top wrapping layer can be set from 0-99 winds.
-
Turntable speed can be adjusted by inverter.
-
Wrap counters: Independent top and bottom.
-
Film carriage speed can be adjusted by inverter.
-
Wrap settings: Re-wrap function, overwrap and overlap adjustment
-
Forklift portable from front and back.
-
Top press, pre-stretch and access ramp are optional
-
Customized service about extended height and turntable size are available.
-
Safer
-
Emergency stop: Red mushroom head.
-
Turntable thickness: 10mm is much more rigid to anti-deformation when load heavy goods.
-
Easy Film Loading carriage with lock door control to guarantee locking.
-
Film loading Safety Shut-off switch can shuts down power automatically during stretch film is loaded
More Effective
-
Up to 40-45 loads per hour
-
Eliminate a large amount of manual operation
-
Dual adjustable film carriage speed
More Reliable
-
Structural steel frame in tower and turntable.
-
Rugged heavy-duty structural steel tube and frame.
-
1 year Warranty & lifelong maintenance and technical support are available.
-
Reinforce wrap function
