FPH Series: Hose Coil packing machinery FPH-200







Description:
FPH series hose coil covering machines is principally utilized to garden hose coil, plastic-type pipe wrapping, which can be with very efficiency and good wrapping for saving material and labor cost. This is a hose coil eyes straight wrapping machinery, which can be for small and lighting coils.



Features:

1. Widely packing material applicable.

2. Original packing position reset function.

3. Manual and automatic working mode for easy operation.

4. The converter is adopted to adjust the speed of the ring and rollers.

5. Overlap of the packing tape adjustment according to requirement.

6. Automatic stop.

7. Guardrails, ring soft starts and stop for safety operation.

8. Supportive rollers for guiding hose coil in wrapping.

9. Packaging tension is adjustable by special breaker.

10.Indicator alarms automatically when trouble occurs. Trouble can be shown automatically.

11. Special brake for the tape release device to avoid material folding.

12.  Highly packing efficiency.



 Note: Can be designed according your specification.

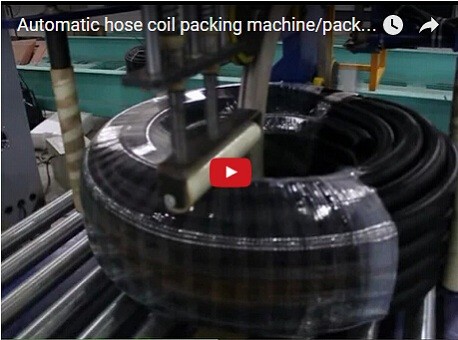

automatic hose packing machine

Parameters:

  FPH-200
Voltage (V/Hz) AC 380/50( or your requirement)
Power (KW) 1.5
Coil ID(mm) 150-200
Coil OD(mm) 250-500
Coil width(mm) 30-200
Coil Weight(Kg) 3-20
Packing material LLDPE/PE/Stretch film/PVC/
Ring speed(r) 30-80
Wrapping speed 15-35sec/pcs
Overlapping rate 20-90%


Different horizontal type hose coil packaging machine is available.  Just let me know your coil size and a free solution will be offered.

Another Machines

Pipe Coil Packing Machine

Steel coil packing machinery is special designed for steel coil industry. The machine is most popular for steel industry which ass for well protective for products. .

      hose coil packaging machine

Hose coil packaging Machine



 The how wrapping machine puts a tight layer of film over all surfaces of the pipe coil. It is specialist for hose coil wrapping.



 Hose coil wrapping Machine



It is a special designed machine for straight pipe/pipe bundle. Length packing is no limited, packing speed,4-10m/min.

      hose coil pcaking machine

Hose coil packing machine



 The how wrapping machine puts a tight layer of film over all surfaces of the pipe coil. It is specialist for hose coil wrapping.

Download Brochure

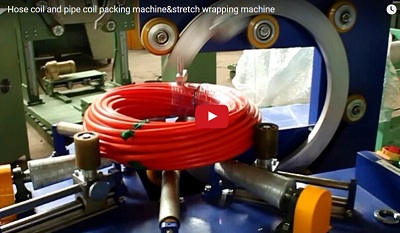

Video
