Mold Flipper for 20T

The Mold Flipper for 20T is an essential tool in the injection molding industry, designed to handle heavy loads up to 20 tons. This robust equipment enhances operational efficiency by allowing quick, safe flipping and precise positioning of large molds, significantly reducing downtime and improving production flow in manufacturing environments.

Get Free Quote Watch Demo

CE Certified

ISO 9001

2 Year Warranty

98%

Efficiency Rate

2 Year

Full Warranty

Mold Flipper for 20T

Visual Details

Click to enlarge

Click to enlarge

Click to enlarge

Click to enlarge

See It In Action

Watch How It Works

Discover how our automated packaging solutions optimize your production line efficiency. This video demonstrates the seamless operation designed for maximum protection.

High Throughput

Up to 60 coils per hour

Consistent Quality

Every wrap meets spec

Request A Quote

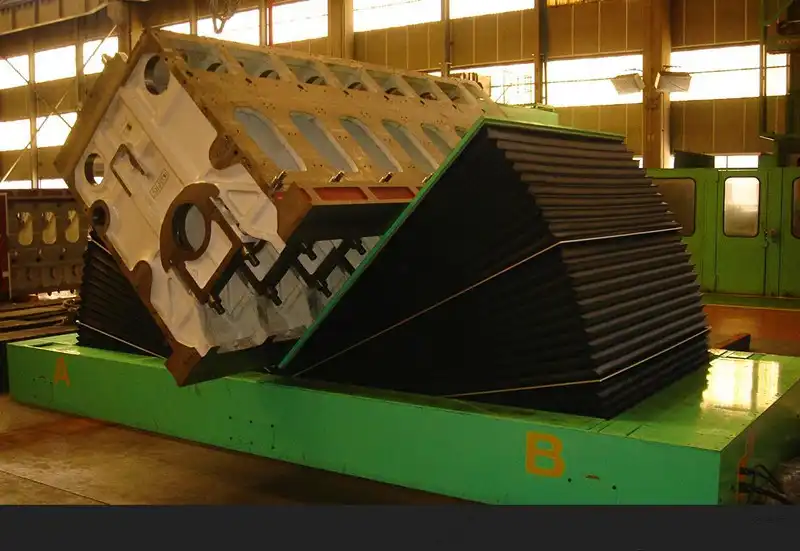

Mold flipper table for 20T

The Mold Flipper for 20T effortlessly handles large-scale molds up to 20 tons, optimizing workflow in injection molding. Designed for durability and precision, it significantly reduces downtime and enhances productivity by enabling quick and accurate mold repositioning in demanding industrial settings.

Technical Data:

Material Construction: Constructed from high-grade industrial steel for enhanced durability and performance
Power Source: Electric-hydraulic power system
Operational Mechanism: Equipped with hydraulic systems for smooth and efficient flipping operations
Flipping Speed: Engineered to perform quick flips, minimizing downtime and maximizing production efficiency
Model Type: FPMT-20
Table Length: 3800 mm
Table Width: 1500 mm
Table Height: 460 mm
Maximum Load Capacity: 20 tons (20,000 kg)
Motor Power: 7.5 kW
Total Machine Weight: 20 tons (20,000 kg)
Hydraulic Oil Capacity: 15 liters
Maximum Rotation Angle: 180 degrees (full flipping capability)
