Automatic Roll Stretch Wrapping Machine

The Automatic-Roll-Stretch-Wrapping-Machine features a Siemens S7-1200 PLC and PID tension control for ±2.5% precision. This high-speed system automates LLDPE film application, reducing material consumption by 18.5% while ensuring superior load stability for industrial textile and paper rolls.

Get Free Quote Watch Demo

CE Certified

ISO 9001

2 Year Warranty

98%

Efficiency Rate

2 Year

Full Warranty

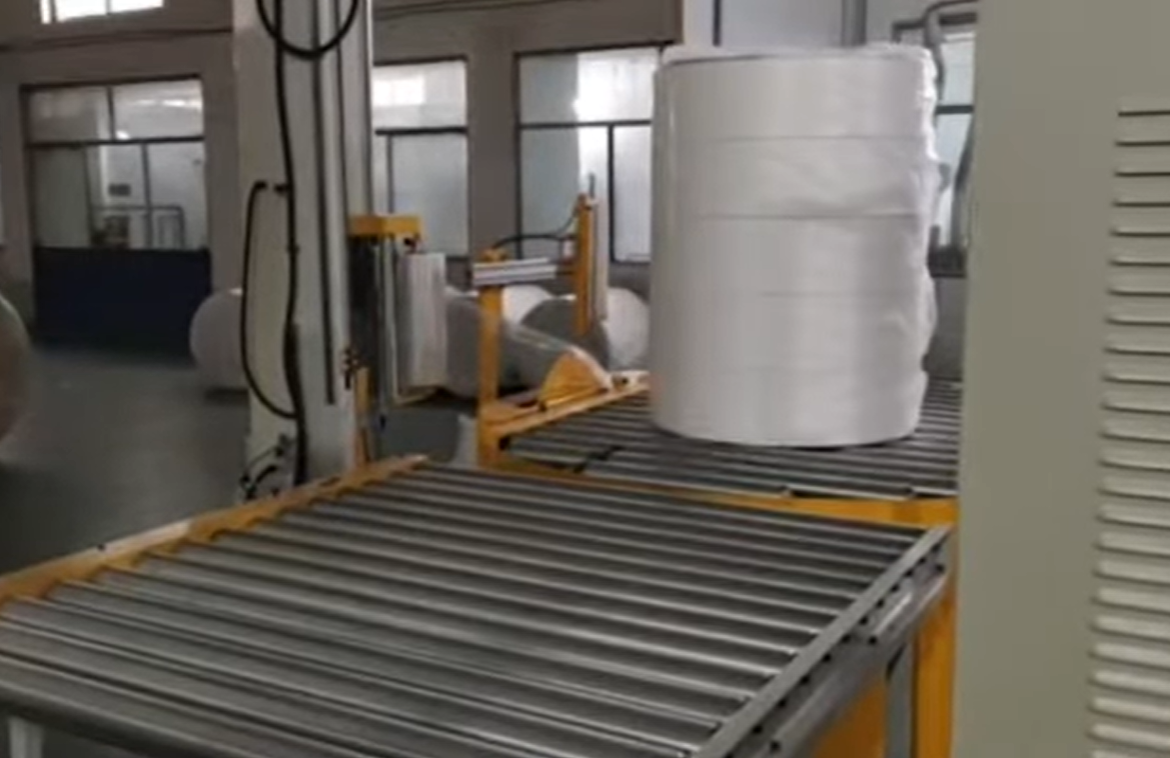

Automatic Roll Stretch Wrapping Machine

Visual Details

Click to enlarge

Automatic Roll Stretch Wrapping Machine - Detail 2

Click to enlarge

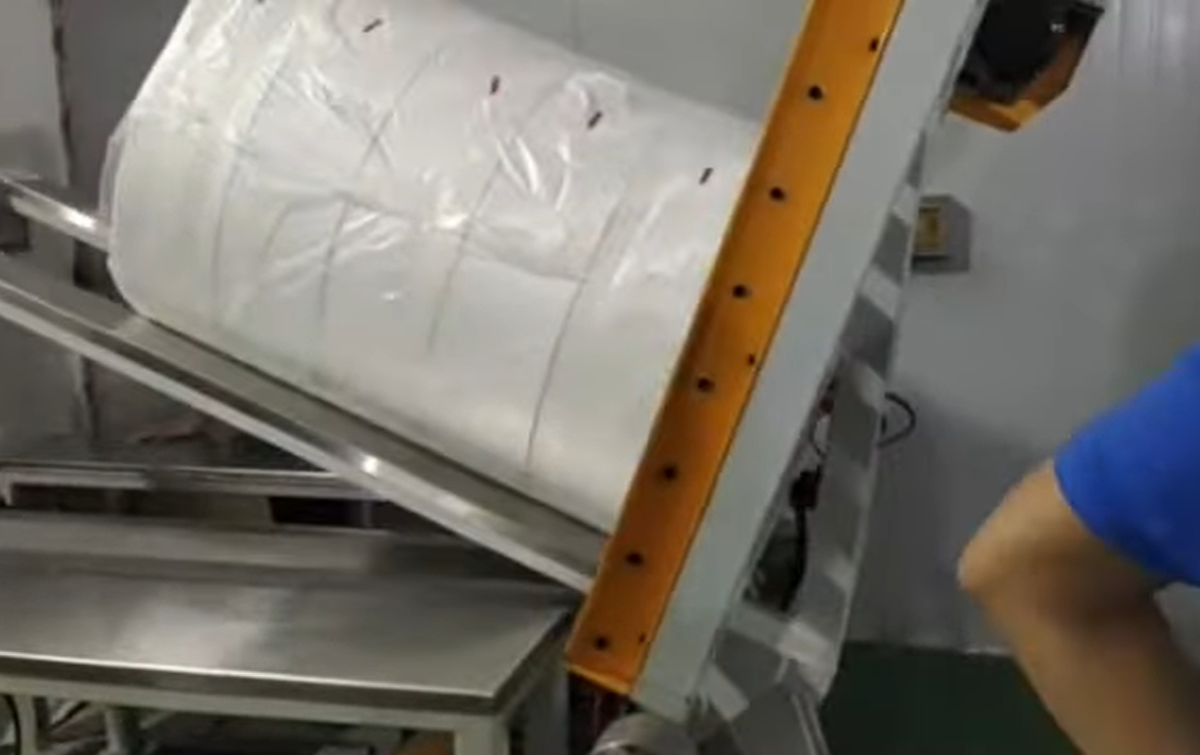

Automatic Roll Stretch Wrapping Machine - Detail 3

Click to enlarge

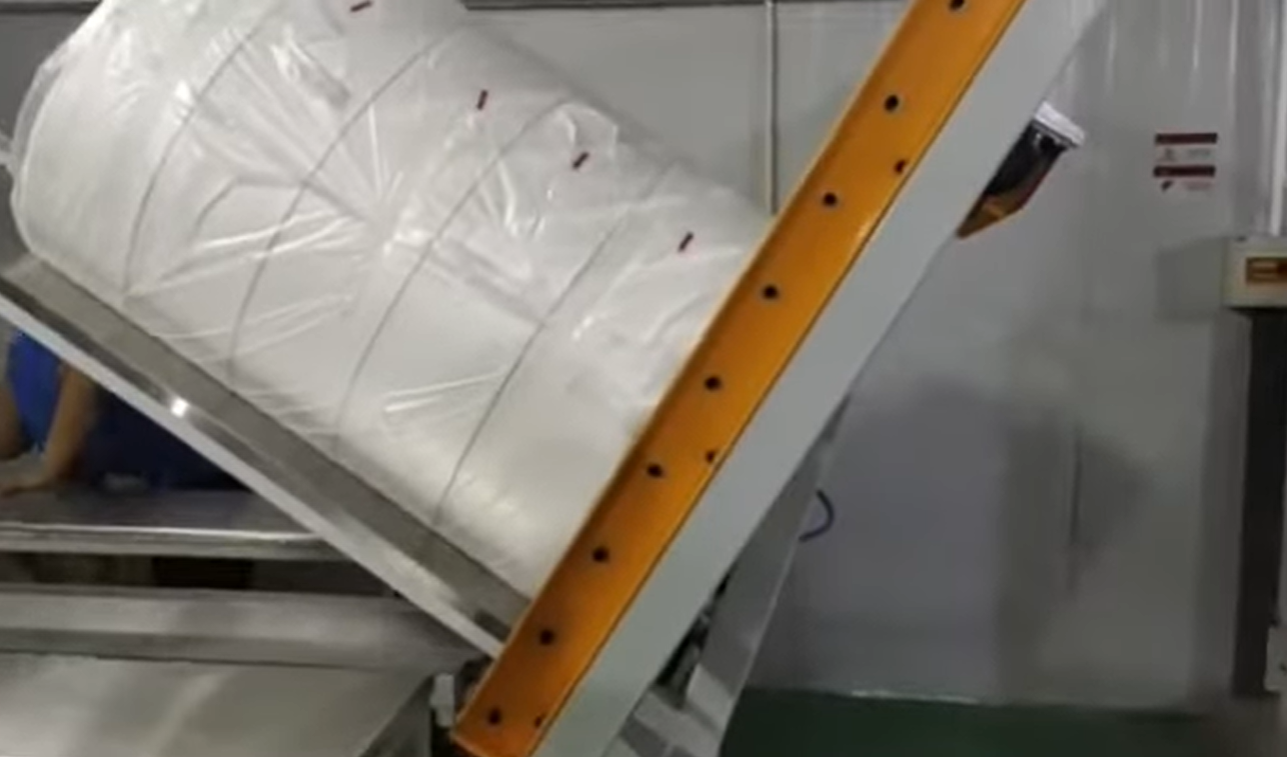

Automatic Roll Stretch Wrapping Machine - Detail 4

Click to enlarge

See It In Action

Watch How It Works

Discover how our automated packaging solutions optimize your production line efficiency. This video demonstrates the seamless operation designed for maximum protection.

High Throughput

Up to 60 coils per hour

Consistent Quality

Every wrap meets spec

Request A Quote

Automatic-Roll-Stretch-Wrapping-Machine

The core of the system is the Siemens S7-1200 PLC, coordinating three independent motor drives with 500Hz encoder feedback. Featuring a 12ms response sequence and closed-loop PID control, it maintains ±2.5% tension variance, reducing film consumption by 18.5% while maximizing load stability.

⚙️ Turntable Performance

2000kg Dynamic Load: Ring gear bearing with <0.28mm lateral runout.
Soft Start/Stop: 2.3s acceleration ramp prevents shifting on high-profile loads.
24 Loads/Hour: Optimized throughput at 12rpm rotation speed.

???? Material Savings

250% Pre-stretch: Reduces film consumption by 37% vs. non-stretched methods.
J-Design Threading: Ensures zero breakage at tensions up to 85N.
Sealed Encoder: IP54 protection prevents drift in oil-mist environments.

????️ Safety & Maintenance

Triple Interlock: E-stop (0.8s cut-off), Light Curtains, and Load Sensors.
Tool-Free Access: Bearing replacement in under 28 minutes.
MTBF 8,000+ Hours: Designed for rigorous industrial duty cycles.

Technical Specifications

Parameter	Specification	Standard / Method
Max Load Capacity	1800kg (Dynamic) / 2000kg (Static)	ISO 12100:2010
Turntable Diameter	2200mm ±3mm tolerance	GB/T 1804-m
Pre-stretch Ratio	100-300% (Adjustable)	Typical LLDPE Setting
Control System	Siemens S7-1200 PLC + HMI	IEC 61131-3 Standard
Power / Air	AC 380V, 3 Phase / 6-8kgf/cm²	ISO 8573-1:2010

???? ROI & Operational Impact

Break-even Point: Field data shows the automatic system becomes more cost-effective than manual wrapping at just 8 rolls per day. By automating, facilities achieve a 37% lower total cost per roll, factoring in a 42% decrease in transport damage and significantly reduced repetitive strain injury (RSI) risks for operators.

PLC supports 10+ programmable patterns for varied load types (Textiles, Paper Rolls, Metal Coils).
FHOPE Engineering: Precision. Stability. Efficiency.
