Automatic horizontal tyre stretch wrapper | Tire strech wrapper
The horizontal stretch wrapper is a specialized machine used for the online handling and packing of tyres. Its primary function is to wrap one or more tyres together, providing a convenient option for bundling tyres. With this machine, the process of packaging and shipping tyres becomes more efficient and streamlined, reducing the time and effort required for handling and logistics. FHOPE can prov
Automatic horizontal tyre stretch wrapper
Visual Details
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Watch How It Works
Discover how our automated packaging solutions optimize your production line efficiency. This video demonstrates the seamless operation designed for maximum protection.
Automatic horizontal tyre stretch wrapper

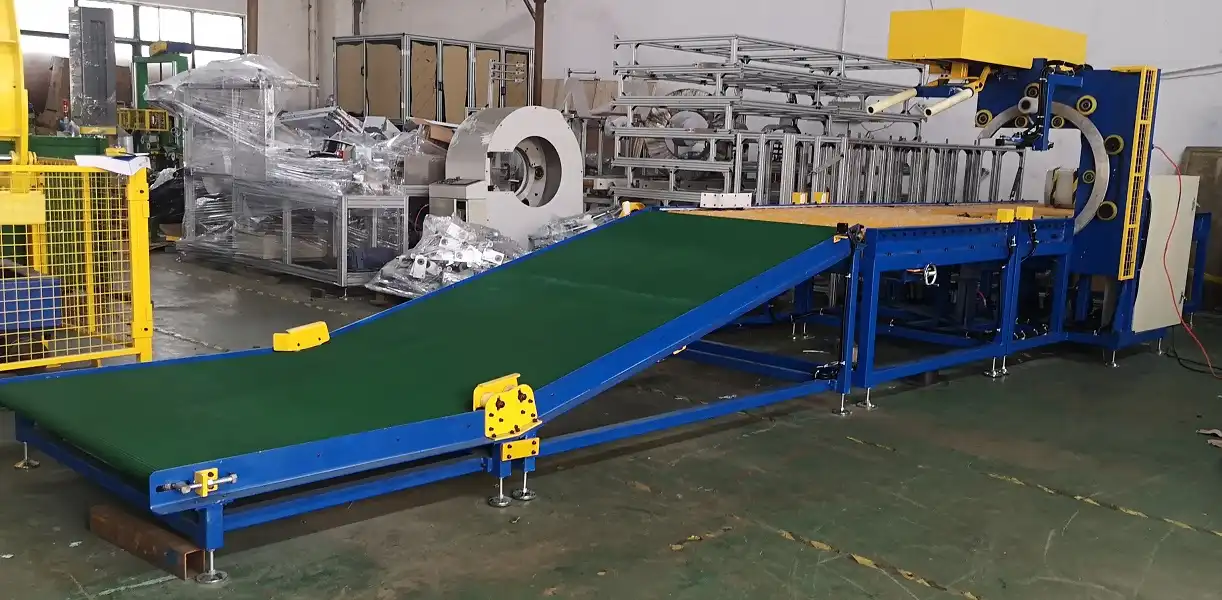

The horizontal tyre stretch wrapper equipped with auto roller power conveyor for tire in-feeding and out-unloading,automatic film feeding &cutting and automatic positioning for OD Full-sides wrapping packing with film.
Our team will supply the complete system after the coil spooler which including spool picker,wrapping machine, dispense station to dispense the coils to different buffer conveyors.
The horizontal wrapper for trye online packing.
By turning the tyre and ring rotating, film will be covered on the tyre surface 360 degree with sealed package.
It is able works for difference tyre OD at the same time.
parameter:
Stretch film :
ID: 50mm, OD: 80-120mm, Width: 90-120mm
Paper/ PE film/ Aluminum foil:
ID: 50mm, OD: 100-450mm, Width: 90-120mm
Machine Model
Automatic | Online
Tire weight
10-100kg
Tire height
150-350mm
Tire OD
600-1400mm
Tire ID
300-900mm
Roller Speed
2-4m/min
Packing Speed
25-35sec/pcs
Rotating speed
10-120r/min
Air supply
5-7bar
Power output
App.4.0kw
Power voltage
380v/50Hz/3ph
Packing material
Trusted by Steel Mills & Industry Leaders
Global manufacturers rely on FHOPE heavy duty packaging equipment
Ready to optimize your packaging line?
Get a custom quote with ROI analysis. Our engineers respond within 24 hours.
- Free layout design
- Global installation support
- 2-year warranty included
Your information is secure and will never be shared.
