Inline Cabinet Bubble Film Packing Machine: Automated Surface Protection & Cushioning Specification

Executive summary

An inline cabinet bubble film packing machine applies protective air-bubble film over furniture carcasses and high-finish panels as they pass along a motorized conveyor. Designed to shield lacquered, veneered, and melamine surfaces against transit scuffs and impact damage before outer stretch wrapping or boxing, this system integrates an overhead film dispensing gantry, pneumatic conformable press rollers, edge-folding guide wheels, and an automated end-seal cutting head. Engineered for workpieces 1,500–2,800 mm long and 20–100 kg, the inline solution eliminates manual taping bottlenecks while delivering consistent wrap tension and measurable film savings.

Table of Contents

Why cabinets are covered in bubble film

Finished furniture components—such as kitchen base units, wardrobe carcasses, and architectural panels—require protective surface buffering before transport. In standard shipping cartons or LTL freight transit, micro-vibrations cause edge abrasion, while handling impacts directly dent unbuffered corners.

Stretch film provides containment force but minimal deceleration cushion. Applying an inline layer of cellular bubble film directly onto sensitive faces resolves this: the closed air cells absorb shock, isolate delicate edges, and prevent film shear from scuffing high-gloss or oiled wood veneers.

Manual covering of panels exceeding 2 meters typically demands two operators, introduces uneven tension, and causes loose seams. An automated inline machine applies uniform tension and edge folds at line speed, establishing consistent transit protection across every production batch.

Inline bubble film covering machine construction

The system consists of a heavy-duty welded steel portal frame straddling an integrated roller and timing-belt conveyor bed:

  • Overhead Film Carriage: Houses an expanding unwind shaft with mechanical tension control to dispense continuous bubble wrap without web drift.

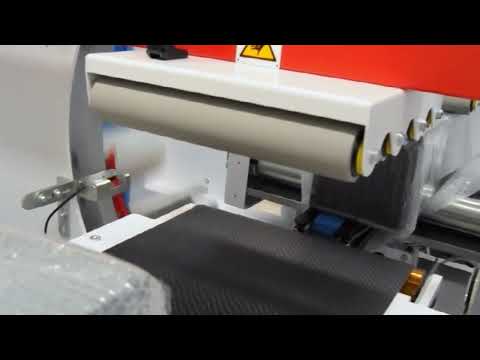

  • Top Compression Roller Assembly: Non-marking, polyurethane-coated top rollers with adjustable pneumatic counterbalancing hold the film flush against the top panel without marring high-gloss coatings.
  • Edge-Folding Flap Guides: Spring-loaded vertical contour rollers fold the protruding lateral film overhang snugly around the cabinet side panels.
  • Pneumatic Transverse Sealing & Cut-Off Beam: An overhead pivoting actuator drives an impulse heated wire and cutting blade to separate film between workpieces.
  • Integrated Controls: An enclosure-mounted PLC system coupled with optical sensors detects component leading and trailing edges for automatic cut-and-seal cycling.

How a cabinet is covered

  1. Infeed & Centering: The cabinet enters via the motorized roller bed and is aligned along the machine centerline by low-friction side guides.
  2. Top Film Deposition: Optical sensors trigger web feed; the bubble film is drawn smoothly over the leading edge and held by counterbalanced upper press rollers.
  3. Lateral Flap Folding: Lateral contouring rollers press and fold the film drape along both vertical sides.
  4. End Sealing & Severing: As the trailing edge passes the sensor zone, the transverse cutting beam cycles down, sealing and cutting the film with controlled dwell time.
  5. Outfeed Transfer: The buffered carcass exits downstream to an orbital stretch wrapper, boxing station, or palletizing line.

Cabinet size range

Operational envelope for the standard cabinet and closet inline packing unit:

Item Specification Range
Object length 1,500–2,800 mm
Object width 650–1,220 mm
Object thickness 200–800 mm
Object weight 20–100 kg
Automation modules Automatic corner board feeder, 90° cross-transfer conveyor
End sealing Optional head and tail covering unit for full 6-sided containment

Film width, roller clearances, and conveyor operating speeds are matched to plant cycle times and verified during technical proposal sign-off.

Worked example: film and output for a wardrobe panel

Consider a representative wardrobe carcass panel: 2,000 mm (L) × 700 mm (W) × 400 mm (T), weighing 45 kg.

  • Envelope Verification: Width (700 mm), length (2,000 mm), and thickness (400 mm) fall well within the standard operational envelope.
  • Transverse Web Width (Girth Requirement): Girth = 2 × (Width + Thickness) = 2 × (700 + 400) = 2,200 mm Adding a 100 mm overlap for bottom thermal lap or tape sealing yields a required film width of 2,300 mm.
  • Linear Film Consumption: Covering the 2,000 mm length with an allowance of 200 mm fold overhang at both leading and trailing edges requires 2.4 m of web travel: Film Area ≈ 2.3 m × 2.4 m ≈ 5.5 m² per cabinet.
  • Throughput Calculation: At a steady conveyor speed v (m/min) and an inter-part gap g (m), net hourly capacity is: Capacity = 60 × v ÷ (L + g) units/hour (where L and g are measured in meters). Line speeds and dwell times are synchronized with upstream edge-banding or nesting stations.
Step Engineering Formula Calculated Value
Girth 2 × (W + T) 2,200 mm
Required Film Width Girth + Overlap 2,300 mm
Web Travel per Unit L + 2 × End Fold 2.4 m
Bubble Film Area Width × Travel 5.5 m²

Line options

  • Integrated Orbital Stretch Wrapper: Positioned directly at the outfeed; spiral-wraps stretch film over the bubble layer to lock cushioning securely without adhesive tape.
  • Six-Sided End Folding Module: Folds and seals the leading and trailing overhangs for total moisture and dust protection.
  • Corner Edge-Board Feeder & 90° Cross Transfer: Automatically feeds rigid edge protectors and turns panels for inline flow redirection.
  • Direct-to-Box Cartoning Interface: Conveys wrapped units directly into automatic tray-erecting or carton-packing cells.

Selection checklist

  1. Dimensional & Mass Envelope: Minimum and maximum length, width, thickness, and total unit mass.
  2. Substrate Sensitivity: High-gloss lacquer, soft-touch matte, textured laminate, or natural veneer (determines roller durometer).
  3. Required Line Takt Time: Target cycle rate (units per hour) matched to upstream lines.
  4. Protective Wrapping Strategy: Bubble layer only, or paired with secondary orbital stretch wrapping.
  5. Hermetic/Dust Sealing Requirement: 4-sided surface wrapping versus full 6-sided sealed packaging.
  6. Plant Power & Compliance: Electrical supply specs (voltage/frequency) and applicable safety directives.

Safety: EN 415-10 and ISO 12100

The machine design complies with EN 415-10 (Safety of packaging machines – general requirements) and incorporates risk assessments conducted under ISO 12100:2010:

  • Infeed/Outfeed Nip Points: Interlocked physical wire mesh enclosures protect all motorized roller transition zones.
  • Sealing & Cutting Head Guarding: The transverse heated impulse cut-off beam is shielded by interlocked access hoods; opening any guard circuit cuts thermal power and drops air pressure.
  • Emergency Stop & LOTO: Category 0 emergency stops are installed on both sides; lockable air dump valves facilitate safe pneumatic zero-energy state verification during blade inspection or roll changes.

Engineering FAQ

Q: Will the upper hold-down rollers leave pressure indentations on high-gloss finishes? A: No. The hold-down rollers feature low-durometer, non-marking polyurethane sleeves with pneumatic floating pressure control. They press against the outer surface of the bubble layer rather than the lacquered substrate itself.

Q: Can this system handle flat doors and knock-down panels as well as assembled carcasses? A: Yes. Provided panels meet the minimum thickness thresholds, flat doors and panels run seamlessly. Adjusting the lateral guides and roller down-stops takes less than two minutes via quick-release handwheels.

Q: Is secondary stretch wrapping mandatory? A: For short-distance dedicated van distribution, the taped or sealed bubble sleeve is often sufficient. For export containers, intermodal transit, or palletized freight, downstream orbital stretch wrapping is recommended to hold the buffer securely under tension.

Q: What regional safety certifications apply to this machine? A: European market shipments are CE-marked according to the Machinery Directive 2006/42/EC, compliant with EN 415-10 and ISO 12100 risk mitigation standards. UL/CSA-compliant control panels are available for North American installations.

Next step

  1. Submit Panel Parameters: Send dimensional matrices (min/max length, width, thickness), unit weights, and surface finish types to info@fhopepack.com.
  2. Layout & Integration Review: Our engineering team configures the film feed geometry, roller pressure specifications, and conveyor transitions.
  3. Formal Layout Proposal: Receive a 2D line layout drawing and commercial quotation within 24 hours.

Sources

  • FHOPE Packaging Machinery: Inline Wrapping & Protective Packaging Technical Specifications
  • Standards Reference: EN 415-10 (Packaging Machines Safety); ISO 12100:2010 (Safety of Machinery – General Principles for Design)
  • Empirical line throughput and film yield testing data

Last updated: 2026-10-28
