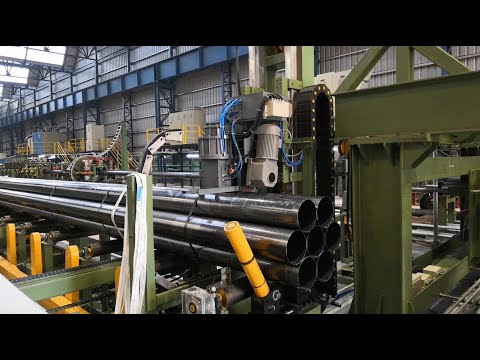

Automatic steel pipe strapping machine packing line

The Automatic steel pipe strapping machine packing line for bundle making and strap packing with one operator operation.

It is a automation solution for steel pipe mill.

The solution includes following steps

Automatic bundling

automatic strapping

automatic handling

automatic out-feeding

https://www.fhopepack.com/Automatic-Steel-Tube-Packing-Line/

This full automation solution can handle the entire process of bundling steel pipes, strapping the bundles, handling and out-feeding them, with only one operator required:

Automatic bundling:

• Individual steel pipes are fed into the line from a buffer

• A wrapping unit applies stretch film to sequentially group a set number of pipes into a bundle

• An adjustable mandrel or frame shapes the film to securely contain the bundle

• The film is cut to complete each bundle

Automatic strapping:

• The bundled pipes are conveyed to a strapping machine

• Steel straps are applied around the bundle, typically in an overlapping X pattern

• A tensioning system tightens the straps to securely restrain the bundle

• The strap ends are sealed to complete the binding

Automatic handling:

• Grippers or clamps pick up the strapped bundles

• An articulating robot or conveyor maneuvers the bundles for storage, palletizing or truck loading

Automatic out-feeding:

• The bundles are discharged onto an exit conveyor

• The full line is controlled by a centralized PLC, synchronized to achieve the required throughput

Benefits:

• Higher productivity through automation and synchronization of processes

• More consistentbundles and strap tension due to precision mechanics and controls

• Less material wastage from automated film dispensing, cutting and strap feeding

• Reduced labor costs by minimizing manual operations

So in summary, an automatic steel pipe strapping machine packing line can offer a full automation solution from bundling to out-feeding of steel pipe bundles, providing benefits like higher throughput, greater consistency and lower operational costs.
