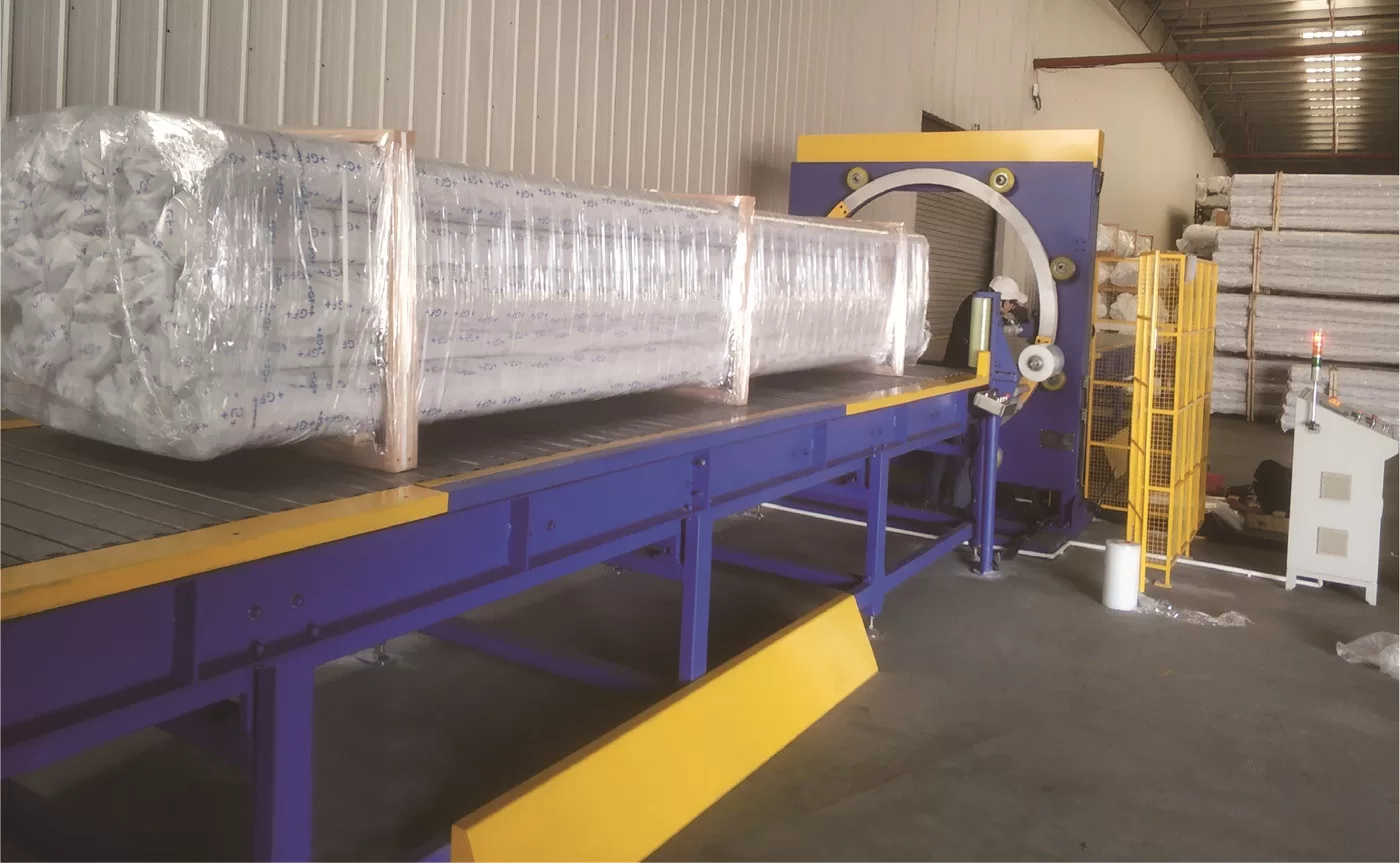

horizontal wrapping machine with timber on bottom

Summary: Discover how the Horizontal Orbital Stretch Wrapper with an integrated timber base maximizes load stability for heavy, linear industrial goods. This specialized packaging system combines vibration damping with precise film tension to secure pipes, profiles, and construction materials for safe transit.

🏗️ The Strategic Advantage of a Timber Support Base

In heavy-duty industrial packaging, standard steel conveyors often fail to provide sufficient friction or shock absorption for irregular loads. The integration of a timber base into the horizontal orbital wrapper is a functional engineering solution, not just a structural choice. By leveraging material science, this design addresses three critical failure points in traditional packaging lines:

• Superior Load Distribution: Timber platforms effectively disperse the point-load stress of heavy items like palletized construction materials (lumber, steel pipes, aluminum panels). This prevents conveyor roller deformation and ensures smooth product feed.

• Active Vibration Damping: Wood possesses natural viscoelastic properties. During high-speed orbital wrapping cycles (up to 30 RPM), the timber base absorbs kinetic energy, minimizing vibration transfer to the load. This is critical for preventing film breakage and load shifting in vibration-sensitive cargo.

• Enhanced Friction for Oversized Loads: The expansive surface area of the timber support ensures that unwieldy items (e.g., long insulation boards or bundled profiles) remain stationary during the film application, guaranteeing a consistent overlap and secure containment.

ROI Insight: Reducing load shift during transit directly correlates to a 40% reduction in damage claims. The timber base acts as a passive stabilizer, lowering insurance costs and improving customer satisfaction rates for logistics providers.

⚙️ Operational Principles and Key Features

This horizontal stretch wrapping machine operates on a continuous feed principle, ideal for long, linear objects that cannot be rotated on a turntable. The product passes horizontally through a rotating ring that dispenses the stretch film.

• Orbital Wrapping Mechanism: The core unit features a rotating ring carriage that spirals film around the stationary-moving product. This orbital stretch wrapper design is specifically engineered for lengths exceeding standard pallet dimensions.

• Powered Pre-Stretch System: Advanced models utilize a dual-roller pre-stretch mechanism, elongating the LLDPE film by 200% to 300% before application. This maximizes film yield, reduces material costs by up to 35%, and increases the “memory force” of the wrap for tighter containment.

• Precision Tension Control: Integrated PLC systems allow operators to fine-tune film tension across different zones of the product. This prevents crushing delicate edges on furniture or aluminum profiles while ensuring tight security on heavy steel pipes.

• Automated Cycle Management: Equipped with a Programmable Logic Controller (PLC), the system manages conveyor speed, ring rotation, and film carriage movement. This allows for seamless integration into larger automatic packaging lines with minimal human intervention.

📊 Technical Specifications Overview

Disclaimer: The parameters below represent standard configurations for the GG1500 Series horizontal wrapper. Customizations for specific load weights or dimensions are available upon request.

🏭 Diverse Industry Applications

The unique stability offered by the timber base packaging system makes it the preferred choice for sectors handling challenging, linear loads that require rigid support during the wrapping process.

• Building & Construction: Securely bundling long items like timber planks, metal profiles, PVC pipes, and insulation panels. The timber base prevents long bundles from flexing or bowing during the high-tension wrapping cycle.

• Industrial Manufacturing: Ideal for wrapping heavy machinery components, automotive parts, and assembled units on custom skids. It provides a barrier against dust, moisture, and transit damage, adhering to strict ISO packaging standards.

• Furniture & Cabinetry: Packaging large, flat-packed, or assembled furniture where edge protection is crucial. The soft timber surface prevents scratches on finished goods while the orbital ring applies uniform pressure.

• Logistics & Distribution: Consolidating mixed or unstable loads onto pallets. The timber foundation ensures a reliable base throughout the automated cycle, reducing the need for manual re-work.

Expert Pro Tip: For highly abrasive loads like steel pipes or rough lumber, request a replaceable timber deck. This allows you to swap out worn sections without halting production or replacing the entire conveyor frame, extending the machine’s lifecycle by 5+ years.

🛡️ Conclusion: A Robust Solution for Demanding Needs

The horizontal stretch wrapper equipped with a timber base represents a specialized engineering solution for enhanced stability in heavy-duty applications. By combining proven orbital wrapping technology with the inherent damping benefits of a robust timber platform, these machines deliver superior load containment and operational reliability. This configuration is particularly advantageous for industries dealing with construction materials and large industrial parts, ultimately contributing to improved product protection and safer material handling workflows.

Ready to optimize your packaging line? Contact our engineering team today for a custom quote on the Horizontal Orbital Wrapper with Timber Base.

❓ Frequently Asked Questions (FAQ)

What is the main benefit of a timber base over a steel conveyor?

A timber base provides natural vibration damping and higher friction, which prevents heavy or smooth loads (like steel pipes or glass) from shifting during the high-speed orbital wrapping process. It also protects delicate product surfaces from scratches.

Can this machine handle loads longer than 5 meters?

Yes. The horizontal orbital wrapper is designed for linear products. While standard models handle up to 5-6 meters, we offer customized conveyor extensions to accommodate extra-long profiles, pipes, or lumber bundles based on your specific facility requirements.

How does the pre-stretch feature save money?

The powered pre-stretch system elongates the film by up to 300% before it touches the product. This means you use significantly less film per load (reducing material costs by ~35%) while maintaining or improving the holding force of the wrap.

Is the machine safe for operators?

Absolutely. Our wrappers are CE certified and include comprehensive safety features such as emergency stop buttons, safety guarding around the rotating ring, and optional light curtains that halt the machine if an operator enters the danger zone.
