Enhancing Bottle Pallet Stability: Technical Insights on the B100 Automatic Stretch Wrapper

Ensuring the stability and security of palletized goods during transport and storage is critical, particularly when dealing with fragile items like bottled products. Automated stretch wrapping provides a reliable and efficient solution for load containment. This article delves into the operational principles, technical specifications, and practical considerations of turntable-style automatic stretch wrappers, using the B100 model as a reference point.

Bottle pallet stretch wrapping machine and pallet wrapper B100

Visual demonstration of the B100 pallet wrapper in action.

Understanding the mechanics and capabilities of machines like the B100 Automatic Pallet Wrapper (Bottle pallet stretch wrapping machine and pallet wrapper B100) is essential for optimizing packaging operations involving bottled goods.

1. Key Operational Principles of Turntable Stretch Wrappers

Turntable stretch wrappers, such as the B100, operate on a straightforward yet effective principle:

  • Pallet Rotation: The pallet load is placed onto a rotating turntable.
  • Film Application: A vertical mast holds a film carriage containing the stretch film roll. As the turntable rotates the load, the film carriage moves up and down the mast, dispensing the film and creating overlapping layers around the pallet.
  • Film Pre-Stretch: A crucial component is the pre-stretch system. This mechanism stretches the film before it's applied to the load, typically using two rollers rotating at different speeds. This significantly increases film yield (reducing material cost) and enhances load holding force, which is vital for securing potentially unstable bottle stacks. Common pre-stretch percentages range from 150% to 300%.
  • Automated Cycle: Most operations are automated, including film attachment, wrapping according to preset parameters (e.g., number of top/bottom wraps, carriage speed), film cutting, and wipe-down at the cycle's end.

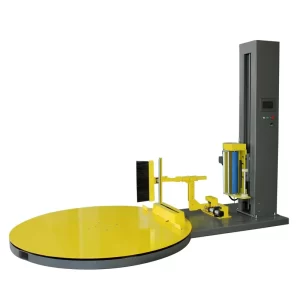

    pallet stretch wrap 1 jpg
    pallet stretch wrap 1 jpg

    2. Example Technical Specifications (B100 Class Machine)

While specific configurations can vary, typical technical parameters for a machine in the B100 class include:

  • Turntable Diameter: 1500mm - 1800mm
  • Turntable Speed: 3-12 RPM (Revolutions Per Minute), often adjustable
  • Max Load Weight: 1500kg - 2500kg
  • Max Wrapping Height: 2000mm - 2800mm
  • Film Carriage: Powered Pre-Stretch (PPS) system, typically achieving 200%-250% pre-stretch
  • Film Type Compatibility: LLDPE (Linear Low-Density Polyethylene) stretch film, standard widths (e.g., 500mm) and thicknesses.
  • Control System: PLC (Programmable Logic Controller) with HMI (Human-Machine Interface) for parameter setting and diagnostics.
  • Power Requirements: ~1.0 - 1.5 kW, Voltage/Phase specified per region (e.g., 380V/3Ph/50Hz)
  • Approximate Cycle Time: 1-2 minutes per pallet (excluding loading/unloading), depending on wrap pattern complexity and rotation speed.
  • Operating Modes: Automatic and manual controls.

3. Benefits of Automated Stretch Wrapping for Bottle Pallets

Implementing automated stretch wrapping for bottle pallets offers significant advantages:

  • Improved Load Stability & Protection: Consistent wrap tension and placement minimize product shifting and breakage during handling and transit. Pre-stretching creates a tighter, more secure wrap.
  • Increased Efficiency & Throughput: Automating the wrapping process is considerably faster and requires less labor than manual wrapping, increasing overall packaging line throughput.
  • Optimized Material Usage: Powered pre-stretch systems maximize the coverage obtained from each roll of film, leading to substantial reductions in film consumption and cost compared to manual or lower-spec machines.
  • Wrapping Consistency: Automated systems apply film uniformly according to pre-defined parameters, ensuring every pallet is wrapped to the same standard.
  • Enhanced Operator Safety: Reduces the physical strain and potential hazards associated with manual wrapping techniques.

4. Considerations for Selecting a Stretch Wrapper for Bottles

Choosing the right machine involves evaluating several factors specific to wrapping bottled products:

  • Load Characteristics: Consider the pallet weight, height, footprint, and inherent stability (or instability) of the stacked bottles. Heavier or taller loads may require machines with higher capacity or specific wrap patterns.
  • Throughput Needs: Match the machine's cycle time and automation level to your required pallets-per-hour output.
  • Film Delivery System: A high-performance powered pre-stretch system is highly recommended for bottle applications to ensure adequate load containment without excessive crushing force and to maximize film economy.
  • Automation Features: Assess the need for options like automatic film attach/cut/wipe, remote start, or integration with upstream/downstream conveyors.
  • Space and Environment: Ensure adequate floor space for the machine footprint and operational clearances. Consider environmental factors (temperature, dust) if applicable.
  • Maintenance and Support: Evaluate the ease of maintenance, availability of spare parts, and technical support from the manufacturer or supplier.

5. Operational Best Practices & Maintenance

To maximize the performance and longevity of your stretch wrapper:

  • Use Quality Film: Select stretch film appropriate for the pre-stretch system and load requirements.
  • Optimize Wrap Parameters: Experiment to find the ideal settings for top/bottom wraps, carriage speed, turntable speed, and film tension/overlap to secure the bottles effectively without damage.
  • Proper Film Threading: Ensure the film is threaded correctly through the pre-stretch rollers and carriage system as per the manufacturer's instructions.
  • Regular Cleaning: Keep the turntable, mast, film carriage, and sensors free of debris and broken film fragments.
  • Preventive Maintenance: Follow the manufacturer's schedule for inspecting and lubricating moving parts like rollers, bearings, chains, and belts. Check electrical connections and safety devices.
  • Operator Training: Ensure operators are trained on safe operation, parameter setting, basic troubleshooting, and emergency procedures.

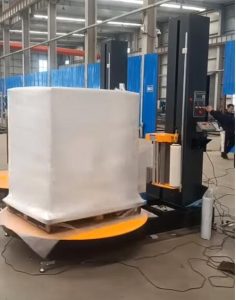

    pallet stretch wrapping machine with weighing scale
    pallet stretch wrapping machine with weighing scale

    Conclusion

Automated turntable stretch wrappers like the B100 offer a robust solution for efficiently securing pallet loads of bottled products. By understanding their operating principles, leveraging features like powered pre-stretch, carefully selecting the right configuration, and adhering to operational best practices, businesses can significantly enhance load stability, reduce product damage, optimize material costs, and improve overall packaging line productivity. Selecting and operating the appropriate wrapping technology is a key investment in protecting valuable goods throughout the supply chain.
