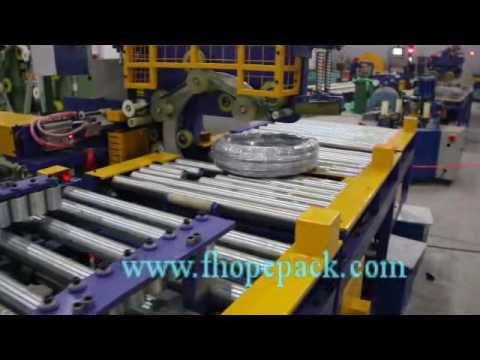

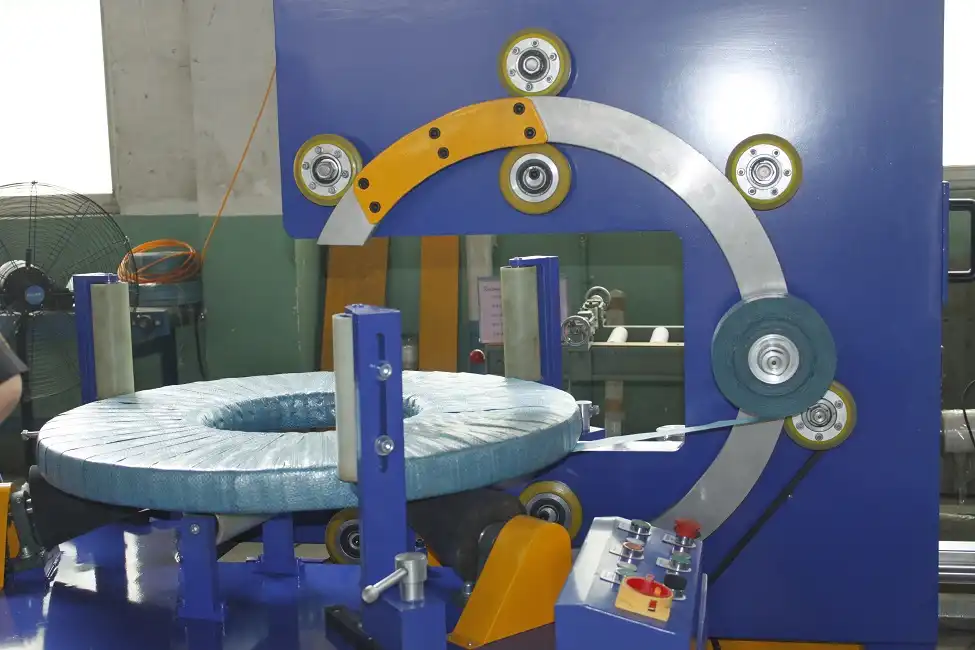

Horizontal Orbital Stainless Steel Coil Wrapping Machine

Designed for high performance through eye packing coil for metal industry.

  • Horizontal orientation: The coil rests horizontally on a stationary or rotating turntable. This is ideal for heavy gauge coils.
  • Orbital wrapping arm: The arm rotates around the coil in an orbital motion to apply the stretch film evenly. It is powered by an electric motor or hydraulic cylinder.
  • Film carriage: Holds the roll of stretch film and moves side to side on guide rails to adjust the wrapping width for different coil widths.
  • Unwind system: Feeds the film from the roll to the wrapping arm. It includes tensioners to control the film tension.
  • Film cutter: Uses a blade to cut the stretch film after completing a wrap.
  • The horizontal orientation allows heavy gauge coils to be wrapped while resting flat on a stationary or rotating turntable. This helps maintain the coil shape.
  • Control panel: Contains buttons to operate machine functions like start, stop, speed adjustment, film feed etc.
  • Safety features: Light curtains at the infeed and outfeed, guards over moving parts and emergency stop buttons.
  • Designed for wrapping stainless steel coils:
  • Coil OD: 800mm to 3500mm
  • Coil width up to 1300mm
  • Provides protection and containment during transport and storage.
  • Consistent, high-quality wraps due to servo control of the orbital wrapping arm.
  • Many models are designed specifically for wrapping stainless steel coils, with features like wear resistant materials and corrosion protection.

Key benefits:

  • Safely handles heavy gauge stainless steel coils
  • Ensures coils remain square and flat after wrapping
  • Generates tamper-evident packaging
