Understanding PE Hose Packing Machines: Operation and Benefits
This guide provides an overview of Polyethylene (PE) hose packing machines, detailing their function, operation, and the advantages they offer in industrial packaging environments.
1. What is a PE Hose Packing Machine?
A PE hose packing machine is specialized equipment engineered to efficiently package coils of PE hoses, primarily for secure storage and transportation. The most common method employed by these machines involves horizontal coil wrapping using stretch film. This process encases the hose coil in a protective layer, maintaining its form and shielding it from environmental factors.
2. Key Specifications and Capabilities
While specific models may vary, typical PE hose packing machines can accommodate hose coils with the following characteristics:
- Inner Diameter (ID): 180mm - 300mm
- Outer Diameter (OD): 380mm - 600mm
- Width: 200mm - 250mm
- Weight: 8kg - 20kg
It's important to verify the specifications of a particular machine model to ensure it meets your specific hose dimensions and weight requirements.
3. The PE Hose Packaging Process: Step-by-Step
The standard operating procedure for many PE hose packing machines involves several key steps:
- Manual Loading: The operator manually places the PE hose coil onto the designated area of the machine.
- Positioning and Fixing: The operator ensures the coil is correctly positioned and secured according to the machine's requirements.

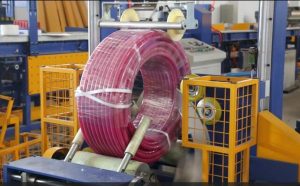

- Optional Coiling and Strapping: Some systems can be integrated with an automatic coiling and strapping unit that operates before the wrapping stage. If equipped, this system automatically coils the hose to the correct size and applies straps to secure the coil.

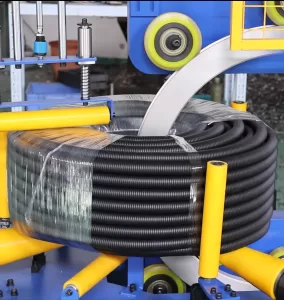

- Automatic Stretch Film Wrapping: Once the coil is ready (either manually placed or automatically coiled/strapped), the machine begins the automated wrapping cycle. It rotates the coil while dispensing and applying stretch film horizontally around the outer diameter, creating a tight, protective seal.
- Unloading: After the wrapping cycle is complete, the packaged hose coil is manually removed from the machine.
4. Operational Video Demonstration
The following video demonstrates the PE hose packing machine in operation, specifically showcasing the stretch film wrapping process:
5. Advantages of Using a PE Hose Packing Machine
Integrating a PE hose packing machine into a packaging line offers several operational benefits:
- Improved Packaging Efficiency: Automating the wrapping process significantly speeds up packaging compared to manual methods.
- Consistent Packaging Quality: Ensures each hose coil is wrapped uniformly, providing reliable protection and a professional appearance.
- Enhanced Product Protection: The stretch film layer shields the PE hose from dust, moisture, abrasion, and potential damage during handling, storage, and shipping.
- Reduced Labor Requirements: Frees up personnel from manual wrapping tasks, allowing them to focus on other production areas.
- Optimized Storage and Transportation: Neatly wrapped coils are easier to handle, stack, and transport, optimizing warehouse space and logistics.
6. Considerations for Implementation
Before integrating a PE hose packing machine, consider:
- Workflow Integration: How will the machine fit into your existing production or packaging line? Assess the need for preceding automated coiling/strapping systems.
- Operator Training: Ensure staff are properly trained on safe operation, loading/unloading procedures, and basic troubleshooting.
- Maintenance: Understand the machine's recommended maintenance schedule to ensure longevity and optimal performance.
- Space and Utilities: Verify floor space requirements and necessary power/air supply connections.
7. Related Equipment
For packaging similar coiled products, such as corrugated hoses, specialized machinery is also available:
See details on a Corrugated Hose Packing Machine: https://www.fhopepack.com/Hose-packaging-machine/corrugated-hose-packing-machine.html
In summary, PE hose packing machines provide a reliable and efficient solution for packaging PE hose coils. By automating the stretch wrapping process, they enhance product protection, improve operational efficiency, and ensure consistent packaging quality for storage and transit.
