Optimizing Efficiency in Wire Processing: An Overview of Automatic Steel Wire Coilers
In modern manufacturing and processing environments, efficiency, consistency, and automation are paramount. Manual handling of materials like steel wire can be time-consuming, labor-intensive, and prone to inconsistencies. The Automatic Steel Wire Coiler and Winding Machine addresses these challenges directly, offering a specialized solution for winding various types of steel wire into neat, manageable coils.
This type of machinery automates the coiling process for steel wires across a range of diameters and lengths, significantly boosting productivity and ensuring uniform coil quality. Let's explore its key aspects.
How Automatic Steel Wire Coilers Work
These machines typically incorporate a sophisticated control system, often PLC-based with a touchscreen interface, allowing operators to precisely set and adjust winding parameters. Key components usually include:
- Robust Frame: Provides stability and durability for continuous operation.
- Wire Feeding System: Ensures smooth and consistent wire delivery into the coiling mechanism.

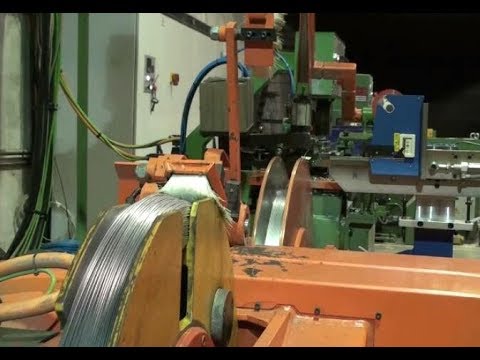

- Coiling Head(s): The core mechanism that forms the wire into a coil. Some models, like the one potentially shown featuring two coiling heads, allow for non-stop operation – while one coil is being finished and offloaded, the other head can begin winding, minimizing downtime.
- Length Counting: Accurately measures the wire to ensure coils meet specific length requirements.
- Tension Control: Maintains appropriate tension during winding to produce tight, stable coils without damaging the wire.
- Cutting Mechanism: Automatically cuts the wire once the desired length is reached.
The result is a streamlined process from wire input to finished coil output, ready for storage, transport, or further processing.
Typical Specifications
While exact specifications depend on the model and configuration, typical parameters for an Automatic steel wire coiler might include:
(Note: The parameters below provide a general range and may not precisely match the equipment in the video or specific custom requirements. Always consult with the provider for specifications tailored to your application.)
- Operation Type: Fully Automated Wire Coiling
- Wire Diameter Capacity: 0.5mm to 10mm (Varies by model)
- Maximum Coil Weight: Up to 500kg (Can be higher for heavy-duty models)
- Winding Speed: Up to 100 meters per minute (Adjustable)
- Coil Inner Diameter Range: 150mm to 500mm (Adjustable or requires tooling changes)
- Coil Width: Adjustable up to 300mm
- Control System: Touchscreen interface with PLC
- Power Supply: Commonly 220V/380V, 50/60Hz, 3-phase (Confirm based on region/model)
- Machine Dimensions (Approx.): 3500mm x 1500mm x 1800mm (Varies significantly)
- Machine Weight (Approx.): 2000kg (Varies significantly)
Key Benefits of Automation
Implementing an automatic wire coiling system offers several advantages:
- Increased Productivity: Continuous, high-speed operation significantly outperforms manual coiling.
- Improved Consistency: Automated controls ensure uniform coil dimensions, tension, and length.
- Reduced Labor Costs: Frees up personnel for other tasks, lowering operational expenses.
- Enhanced Safety: Reduces manual handling of heavy wire and interaction with moving machinery.
- Optimized Material Handling: Neatly wound coils are easier to store, transport, and integrate into subsequent processes.
Applications Across Industries
The versatility of the Automatic Steel Wire Coiler and Winding Machine makes it valuable in various sectors:
- Wire Manufacturing: Core equipment for producing finished wire coils for sale or internal use.
- Telecommunications: Coiling communication wires and cables where precision and coil integrity are crucial for signal quality.
- Construction: Producing coils of reinforcing wire, binding wire, or fencing wire.
- Automotive & Industrial Manufacturing: Coiling wire used in components like springs, filters, or electrical harnesses.
- Packaging and Distribution: Preparing large volumes of wire into standardized coils for efficient handling and logistics.
For businesses dealing with steel wire processing, investing in an automatic coiler represents a significant step towards enhanced efficiency, quality control, and operational streamlining. Understanding the capabilities and specifications is key to selecting the right solution for specific coiling needs.
