Streamlining PVC Pipe Handling: A Deep Dive into Automatic Bagging and Bundling Systems
The efficient handling and packaging of PVC pipes are critical downstream operations in modern manufacturing. As production volumes increase, manual methods become bottlenecks, leading to higher labor costs, inconsistent package quality, and potential safety hazards. Automatic PVC pipe bagging and bundling machinery offers a robust solution, integrating seamlessly with production lines to enhance efficiency, safety, and reliability.
The Challenge of Manual Pipe Packaging
Traditionally, packaging PVC pipes involves significant manual labor for:
- Collecting pipes from the extrusion line.
- Counting pipes accurately for each bundle.
- Arranging pipes into uniform bundles.
- Securing bundles (often with tape or basic strapping).
- Moving finished bundles to storage or shipping areas.
This process is not only labor-intensive but also prone to inconsistencies and potential ergonomic risks for workers. Automated systems address these challenges directly.
Core Functionality of Automated PVC Pipe Packaging Lines
Modern automatic PVC pipe packaging lines are designed to handle the entire process from pipe collection to final bundled package conveyance. Key operational stages typically include:
- Pipe Feeding: Systems can receive pipes directly online from the extrusion cutter/belling machine or operate offline from a storage buffer.
- Counting and Accumulation: Precise sensors count the pipes, accumulating the correct number required for a bundle.
- Bundle Formation: Mechanisms align the counted pipes neatly into the desired bundle shape (e.g., square, hexagonal).
- Bundling/Strapping: Automated strapping heads apply and secure plastic or steel straps around the bundle. Some systems may use wrapping techniques.
- Bagging (Optional): For added protection or specific market requirements, some lines incorporate automatic bagging, where the bundle is inserted into a pre-made or formed plastic bag, often followed by sealing.
- Discharge and Conveyance: The finished, secured bundle is automatically transported away from the packaging station, often onto roller conveyors or other handling systems for movement to warehousing or dispatch.
Key Technologies and Design Features
The reliability and efficiency of these systems stem from careful design and the integration of proven technologies:
- Control Systems: Programmable Logic Controllers (PLCs) manage the entire sequence, ensuring precise timing and coordination. Human-Machine Interfaces (HMIs), typically touch screens, allow for easy operation, parameter adjustments (like bundle count or pipe diameter), and system monitoring.
- Sensors: Photoelectric sensors and other detection devices are crucial for accurately tracking pipe presence, length, and position throughout the process.
- Robust Mechanics: Heavy-duty frames, reliable conveyors, and durable bundling/strapping mechanisms are essential for handling the weight and repetitive nature of pipe packaging.
- Modular Design: Many systems feature a modular construction, simplifying installation, maintenance, and potential future upgrades. Standardized components help ensure the availability of spare parts.
- Intelligent Monitoring: Advanced software can provide real-time diagnostics, pinpointing the exact location of mechanical faults through visual and audible alarms. This significantly speeds up troubleshooting and reduces downtime.

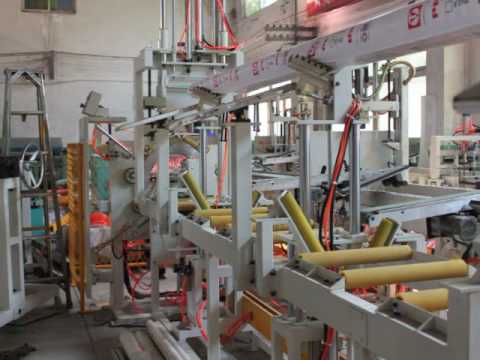

automatic ppr pipe capping and bundle bagging line Optimizing for Maintainability and Flexibility
Manufacturers prioritize designs that minimize maintenance requirements:
- Standardized Components: Using widely available parts simplifies inventory and replacement.
- Diagnostic Software: As mentioned, intelligent software aids maintenance personnel in quickly identifying and resolving issues.
- System Flexibility: Operators can often enable or disable specific processing stations (e.g., bypassing bagging if not required) via the control interface, adapting the line to varying production needs without significant delays. Systems can often be configured for different pipe diameters and lengths, up to significant bundle circumferences (e.g., 450mm).
Benefits of Automation in Pipe Packaging
Implementing an automatic PVC pipe bagging and bundling line yields significant advantages:
- Increased Throughput: Matches high-speed extrusion lines, eliminating downstream bottlenecks.
- Consistent Package Quality: Ensures uniform bundle counts and secure packaging every time.
- Enhanced Worker Safety: Reduces manual lifting and repetitive motion tasks, minimizing injury risks.
- Reduced Labor Costs: Frees up personnel for higher-value tasks.
- Improved Material Flow: Creates a smoother, more predictable flow from production to shipping.
- Data Integration: Can often link with plant management systems for tracking production data.
automatic pipe bundle strapping machine2 Conclusion
Automatic PVC pipe bagging and bundling machinery represents a vital investment for pipe manufacturers seeking to improve efficiency, safety, and competitiveness. By automating the labor-intensive downstream packaging processes, these systems ensure consistent quality, higher throughput, and reduced operational costs. Continuous development focuses on increasing speed, enhancing diagnostic capabilities, and providing greater flexibility to meet the diverse needs of the plastic pipe industry. For further information on industry standards and practices, resources like the Plastics Pipe Institute (PPI) can be valuable.
