Understanding Horizontal Orbital Stretch Wrappers for Furniture and Panel Protection

Protecting large, often bulky items like furniture and panels during storage and transportation is a critical challenge in logistics and manufacturing. Damage during these stages can lead to significant costs and customer dissatisfaction. A highly effective solution for this challenge is the horizontal orbital stretch wrapper.

Video demonstrating a horizontal orbital stretch wrapping process.

What is a Horizontal Orbital Stretch Wrapper?

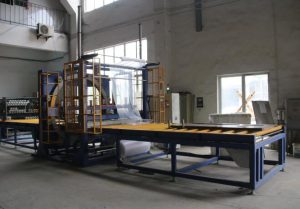

A horizontal orbital stretch wrapper is specialized packaging machinery designed to apply stretch film around long or bulky products, such as furniture, doors, windows, lumber, extrusions, and panels. Unlike traditional turntable wrappers where the load rotates, in a horizontal orbital system, the product typically moves horizontally through a rotating ring or arm that dispenses the stretch film. This "orbital" motion ensures complete and secure wrapping along the entire length of the product.

How Does It Work?

The core operation involves feeding the furniture or panel horizontally into the machine, often via conveyors. As the product passes through the wrapping ring:

1. Film Dispensing: A carriage mounted on the rotating ring holds the roll of stretch film.
2. Orbital Rotation: The ring rotates around the stationary or slowly moving product.
3. Film Application: The stretch film is dispensed from the carriage and wraps around the product's profile.
4. Overlap Control: The speed of the product feed relative to the ring's rotation speed determines the amount of film overlap, ensuring a secure and stable wrap.
5. Cutting and Sealing: Automated systems typically include mechanisms to automatically clamp, cut, and seal the film at the end of the wrapping cycle.

Key Features and Capabilities

Modern horizontal orbital stretch wrapping machine systems often incorporate several advanced features:

Programmable Controls

Sophisticated control systems, usually PLC-based (Programmable Logic Controller), allow operators to precisely manage wrapping parameters. This includes:

• Wrapping speed (ring rotation)
• Conveyor speed (product feed)
• Film tension control
• Number of wraps at leading and trailing ends
• Pre-stretch ratio (maximizing film efficiency)
• Customizable wrapping patterns for different product types

Adjustable Configuration

These machines are designed for versatility:

• Variable Ring Sizes: Accommodate different product cross-sections.
• Adjustable Guides: Infeed and outfeed guides can often be adjusted for varying product widths and heights.

Advanced Film Carriage Systems

The film carriage is crucial for performance:

• Powered Pre-Stretch: Stretches the film before application (often up to 250-300%), significantly reducing film consumption and improving load stability.
• Automatic Film Management: Systems for automatically attaching the film at the start and cutting/sealing it at the end streamline the process.

Safety Mechanisms

Operator safety is paramount:

• Safety Fencing/Guarding: Physical barriers prevent access to moving parts during operation.
• Light Curtains: Sensors that stop the machine if an object or person enters the hazardous zone.
• Emergency Stops: Easily accessible buttons to halt operation immediately.

Integration Options

Horizontal wrappers can function as standalone units or be integrated into fully automated packaging lines:

• Conveyor Systems: Seamless connection with infeed and outfeed conveyors.
• Upstream/Downstream Equipment: Can be linked with devices like strapping machines, labeling systems, or stacking units.

Benefits of Using Horizontal Orbital Wrappers

Investing in this technology offers several advantages:

• Enhanced Product Protection: Provides a tight, uniform wrap that protects against dust, moisture, scratches, and shifting during transit.
• Improved Load Stability: Securely bundles items, especially important for long or irregularly shaped products.
• Increased Efficiency: Automates the wrapping process, significantly increasing throughput compared to manual methods.
• Reduced Labor Costs: Frees up personnel for other tasks.
• Optimized Film Consumption: Pre-stretch capabilities minimize material usage and costs.
• Versatility: Effectively wraps a wide range of product shapes and sizes that are difficult to handle on other wrapper types.

Common Applications

for
Horizontal orbital stretch wrappers are widely used in industries such as:

• Furniture Manufacturing (sofas, tables, cabinets)
• Wood and Lumber Processing (panels, planks, beams)
• Door and Window Manufacturing
• Building Materials (insulation panels, siding)
• Metal Extrusions and Piping
• Textiles (carpets, fabric rolls)

Conclusion

Horizontal orbital stretch wrappers offer a robust and efficient solution for protecting furniture, panels, and other long or bulky items. By automating the wrapping process and ensuring consistent, secure packaging, these machines help businesses reduce product damage, lower operational costs, and improve overall logistical efficiency. Whether choosing a semi-automatic model or a fully integrated system, understanding the capabilities and benefits allows for selecting the right machine to meet specific packaging needs.
