Understanding the Pallet Shrinking Machine: A Comprehensive Guide
Pallet shrinking machines are essential pieces of packaging equipment designed to apply heat to specialized polymer film, causing it to shrink tightly around a palletized load. This process secures the items for storage and transportation, offering stability and protection.

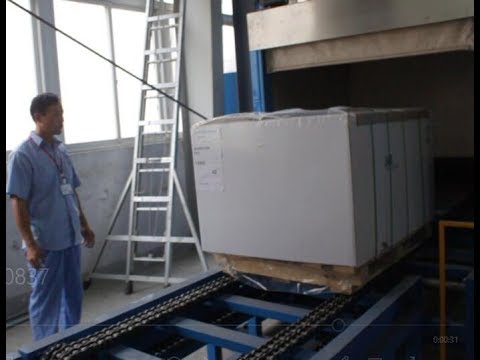

An example of an automated pallet shrinking process.
These systems automate the shrink-wrapping process, providing consistent results and improving operational efficiency compared to manual methods.
1. How Pallet Shrinking Machines Work
The fundamental principle involves covering a pallet load with a shrinkable plastic film (often a pre-made bag or hood) and then applying controlled heat.
- Film Application: A suitably sized shrink film bag or hood is placed over the palletized goods. This can be done manually or automatically depending on the system's level of automation.
- Heat Application: The covered pallet is moved into a heating zone. This might be a shrink frame (as shown in the video), a ring that descends over the pallet, or a tunnel the pallet passes through. Heat, typically generated by gas burners or electric elements, is applied uniformly.
- Shrinking Process: The heat causes the polymer film molecules to contract, shrinking the film tightly around the contours of the load. This creates a stable, unitized package.
- Cooling: After heating, the film cools rapidly, retaining its shrunk form and ensuring a secure wrap.
2. Key Components and Technical Specifications
While designs vary, most automated pallet shrinking machines share common components:
- Heat Source: Gas (Natural Gas or Propane) or electric heating elements provide the necessary temperature for shrinking the film. Gas systems often offer faster heating, while electric systems might be preferred in certain environments.
- Application System: This could be a shrink frame, ring, or tunnel structure that houses and directs the heat onto the film.
- Conveyor System: Integrated conveyors move pallets into and out of the shrinking zone, enabling continuous operation.
- Control System: A Programmable Logic Controller (PLC) manages the machine's functions, including temperature settings, cycle time, conveyor speed, and safety interlocks. A Human-Machine Interface (HMI) panel allows for easy operation and monitoring.
Typical Specification Ranges:
- Pallet Size Compatibility: Machines are designed to handle various pallet dimensions. Common ranges include:
- Length (L): 500mm - 1200mm (or larger)
- Width (W): 500mm - 1200mm (or larger)
- Height (H): 100mm - 1000mm (or significantly higher for specialized units)
- Load Capacity: Typically supports standard pallet weights, often up to 1.5 tonnes (1500 kg) or more.
- Maximum Temperature: Operating temperatures can reach up to 250°C (482°F), depending on the film type and thickness. Precise temperature control is crucial to avoid damaging the product or film.
3. Benefits of Using Pallet Shrinking Machines
Automating the pallet shrink wrapping process offers significant advantages:
- Enhanced Load Stability: Creates a tight, rigid wrap that unitizes the load, preventing shifting during handling and transit.
- Product Protection: Shields goods from dust, moisture, dirt, and UV radiation (with appropriate film).
- Tamper Evidence: A sealed shrink wrap makes tampering immediately apparent.
- Improved Efficiency: Automates a labor-intensive process, increasing throughput and reducing manual effort.
- Consistency: Ensures every pallet is wrapped to the same standard, improving reliability.
- Cost Savings: Reduces labor costs and potentially lowers film consumption compared to inefficient manual methods.
4. Common Applications
Pallet shrinking machines are widely used across various industries:
- Logistics and Warehousing: Securing diverse goods for storage and distribution.
- Manufacturing: Packaging finished products like appliances, building materials, or industrial components.
- Food and Beverage: Wrapping palletized containers, bottles, or cans (often requiring specific food-grade films).
- Construction: Securing bricks, blocks, tiles, or bags of cement on pallets.
- Chemical Industry: Safely unitizing drums, bags, or containers.
5. Choosing the Right Pallet Shrinking System
Selecting the appropriate machine involves considering several factors:
- Throughput Requirements: How many pallets per hour need to be wrapped?
- Pallet and Load Characteristics: What are the typical dimensions (L x W x H) and weight of your loads? Are loads uniform or highly irregular?
- Film Type: What kind of shrink film (e.g., Polyethylene - PE) will be used? Consider thickness (microns) and specific properties (UV protection, anti-static).
- Energy Source: Is natural gas, propane, or electricity preferred or more readily available/cost-effective?
- Level of Automation: Does the process require fully automatic film placement and pallet handling, or is semi-automatic sufficient?
- Available Floor Space: Ensure adequate room for the machine, conveyors, and safe operating zones.
- Budget: Initial investment versus long-term operating costs and ROI.
6. Safety Considerations
Operating machinery involving heat and moving parts requires adherence to safety protocols:
- Heat Hazards: Proper guarding and insulation are essential to protect operators from high temperatures.
- Moving Parts: Conveyors and moving shrink frames/rings must have appropriate safety guards and emergency stops.
- Proper Training: Operators must be fully trained on safe operating procedures, maintenance, and emergency protocols.
- Ventilation: Gas-fired systems require adequate ventilation to manage combustion byproducts.
- Compliance: Ensure the machine complies with relevant safety standards (e.g., OSHA, CE marking).
7. Conclusion
A pallet shrinking machine is a valuable asset for businesses needing to secure palletized goods effectively. By automating the wrapping process, these systems enhance load stability, protect products, improve operational efficiency, and contribute to a safer working environment when used correctly. Understanding the different types, capabilities, and operational considerations allows businesses to select and implement the most suitable solution for their specific packaging needs.
