Streamlining Pipe Production: An Overview of Online Pipe Bundling and Strapping Machines
In modern pipe manufacturing, efficiency and consistency are paramount. After extrusion, handling and packaging pipes effectively presents a significant operational challenge. Manual bundling and strapping can be labor-intensive, slow, and prone to inconsistencies. This is where automated solutions like online pipe bundle making and strapping machines provide substantial value. These systems integrate directly into the production line, automating the process of grouping pipes into bundles and securing them for transport or storage.
How Inline Pipe Bundling and Strapping Systems Work
An online pipe bundling and strapping machine operates seamlessly within the production flow, typically positioned after the pipe extrusion and cooling stages. Here’s a breakdown of the typical process:
- Pipe Reception and Accumulation: Pipes coming off the production line are received by the machine. An integrated system often counts the pipes to ensure the correct number per bundle.
- Bundle Formation: The machine arranges the predetermined number of pipes into the desired bundle configuration (e.g., hexagonal, square). Clamping mechanisms hold the pipes securely in place during the formation stage. These systems are often adjustable to handle various pipe diameters and bundle sizes.
- Inline Strapping: Once the bundle is formed, the strapping unit takes over. This is a critical step for securing the pipes.
- Strap Feeding: The strapping material (steel or plastic) is automatically fed around the bundle.
- Strap Tensioning: The machine applies the correct amount of tension to the strap, ensuring the bundle is tight and secure without damaging the pipes. Tension levels are typically adjustable.
- Sealing/Welding: The ends of the strap are joined together. Depending on the strap material, this might involve heat sealing, friction welding (for plastic straps), or crimping (for steel straps).
- Strap Cutting: The excess strap material is automatically cut.
- Bundle Discharge: The completed, strapped bundle is then discharged from the machine, ready for the next stage of handling or shipping.

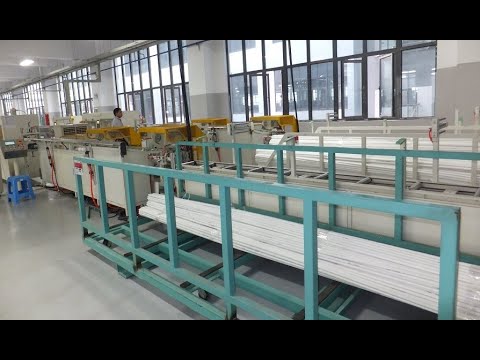

Video showcasing an example of an online pipe bundle making and strapping process.
Key Features and Operational Advantages
Integrating an automated system like an online type pvc pipe bundle making machine and pipe bundle strapping machinery offers numerous benefits:
- Enhanced Efficiency: Inline operation eliminates manual handling bottlenecks, significantly increasing throughput compared to offline or manual methods. The machine operates continuously with the extrusion line.
- Improved Consistency: Automated processes ensure every bundle is formed and strapped uniformly according to preset parameters, leading to consistent quality and appearance.
- Labor Optimization: Automation reduces the need for manual labor in the bundling and strapping process, allowing personnel to focus on higher-value tasks.
- Process Control: A Programmable Logic Controller (PLC) typically governs the machine's functions, enabling precise control over bundle size, strap tension, and timing. Operators can usually adjust settings via a user-friendly control panel.
- Material Versatility: These machines can often be configured or adapted to handle different types of pipes (e.g., PVC, HDPE, steel) and various bundle configurations.
- Strapping Options: Systems can be designed for different strapping materials:
- Steel Straps: Offer high tensile strength, suitable for heavy or rigid pipe bundles.
- Plastic Straps: Materials like polypropylene (PP) and polyester (PET) are widely used. They are corrosion-resistant and often safer to handle. Machines using plastic straps require compatible strapping heads, tensioners, and sealing mechanisms (often heat or friction weld). Learn more about strapping material properties from sources like the Association for Packaging and Processing Technologies (PMMI).
- Operator Safety: Enclosed guards around moving parts (like the strapping unit) and safety interlocks are standard features, enhancing workplace safety by minimizing operator exposure to potential hazards.
Considerations for Implementation
When considering an online pipe bundling and strapping system, factors such as the range of pipe diameters, required bundle sizes and shapes, desired throughput speed, type of strapping material, and integration with existing upstream and downstream equipment need to be carefully evaluated. Customization is often possible to meet specific production requirements.
In conclusion, online pipe bundle making and strapping machines represent a significant advancement in pipe manufacturing automation. By integrating seamlessly into production lines, they deliver substantial improvements in efficiency, consistency, safety, and overall packaging quality, making them a valuable asset for modern pipe producers.
