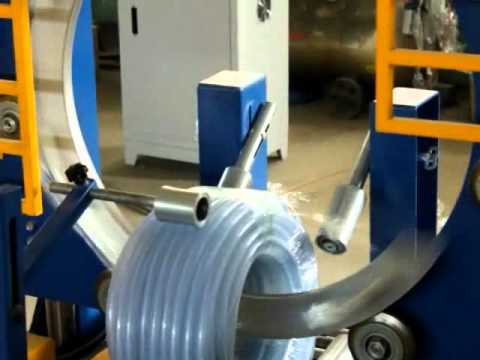

Hose coil packaging machine video

Automating Hose Packaging: Understanding Coil Wrapping Machines

Manual packaging of hose coils, particularly garden hoses or industrial hoses, can be a time-consuming and labor-intensive process. It often creates bottlenecks in production lines and can lead to inconsistent package quality. For operations seeking to improve efficiency and reduce manual handling, investing in automated solutions like a hose coil packaging machine presents a viable option.

What is a Hose Coil Packaging Machine?

A hose coil packaging machine is specialized equipment designed to automatically wrap coiled products, such as hoses, pipes, or cables, using stretch film. The primary goal is to secure the coil for handling, transport, and storage, replacing or supplementing manual wrapping methods. These machines utilize a wrapping ring or shuttle that dispenses stretch film around the coil as it passes through the machine's wrapping zone.

How Does Hose Coil Wrapping Work?

While designs vary, the typical operational sequence for many hose coil packaging machines involves several key steps:

1. Coil Loading: The hose coil is placed onto the machine's infeed conveyor or directly into the wrapping position, either manually or via an integrated automated system.
2. Positioning: The coil is centered within the wrapping ring or orbit.
3. Wrapping Cycle: The machine initiates the wrapping process. A shuttle carrying the roll of stretch film rotates around and through the center of the hose coil.
4. Film Application: The stretch film is applied under tension, wrapping circumferentially around the coil body, effectively unitizing it. The amount of overlap and number of wraps can typically be adjusted based on requirements.
5. Film Cutting & Securing: Once the programmed wrapping cycle is complete, the film is automatically cut and secured (often using a heat seal or wipe-down mechanism).
6. Coil Discharge: The wrapped coil is moved out of the wrapping zone, typically onto an outfeed conveyor.




   Key Benefits of Automated Hose Coil Packaging

Implementing a hose coil packaging machine can offer several operational advantages compared to manual methods:

• Increased Throughput and Efficiency: Automation significantly speeds up the packaging process, allowing for higher output rates and reducing production bottlenecks. Machine cycle times are consistent, unlike variable manual speeds.
• Reduced Labor Requirements: Automating the wrapping process minimizes the need for direct manual labor in this specific task. This allows personnel to be reallocated to higher-value tasks and can reduce labor costs associated with packaging. It also improves ergonomics by reducing repetitive motions.
• Improved Product Protection: The tight, consistent wrap provided by stretch film (external authoritative link example - replace with a real, verified link if possible) helps protect hoses from dust, moisture, and abrasion during transit and storage. It also secures loose ends, preventing unwinding.
• Consistent Package Quality: Automated wrapping ensures each coil is packaged uniformly, providing a professional appearance and consistent level of security, which can enhance brand perception and customer satisfaction.

Operational Considerations

When evaluating or implementing a hose coil packaging machine, several factors should be considered:

• Coil Dimensions: Ensure the machine can handle the specific range of inner diameters, outer diameters, and widths of the hose coils being processed.
• Film Specifications: Determine the appropriate type, gauge, and stretch percentage of the film required for secure containment and optimal material usage.
• Required Throughput: Match the machine's speed capabilities (coils per hour) with the production line's output requirements.
• Level of Automation: Decide whether a standalone machine is sufficient or if integration with upstream coiling equipment and downstream palletizing systems is needed.
• Maintenance: Understand the machine's maintenance schedule and requirements for long-term reliable operation.

Investing in a hose coil packaging machine can streamline operations, reduce costs associated with manual labor, and enhance product protection and presentation. By carefully considering the specific application requirements and machine capabilities, businesses can effectively automate their hose packaging process.

Hose Packaging Machine Examples

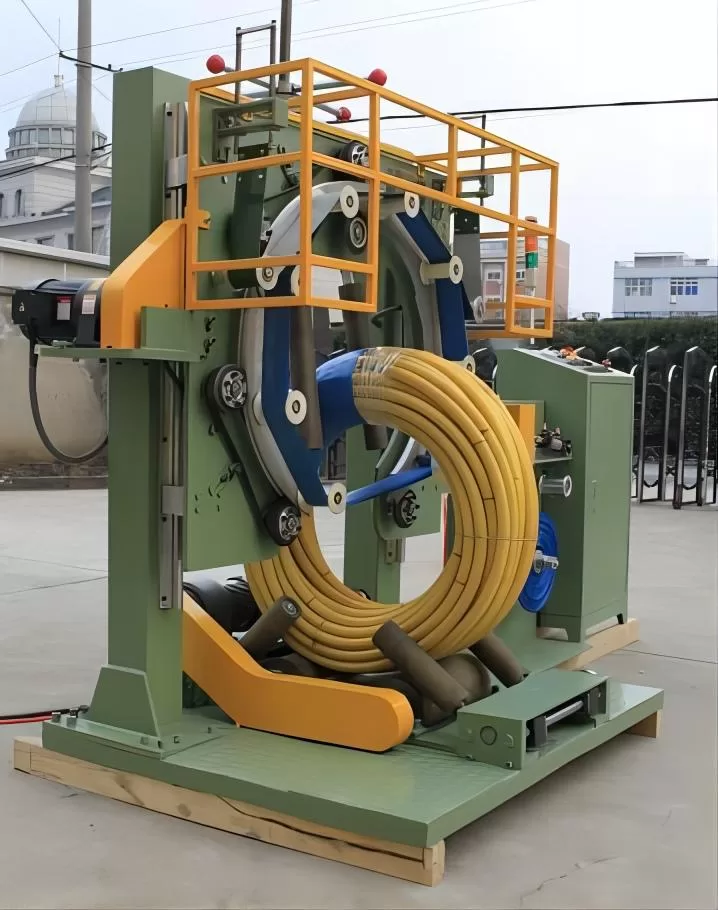

FPH200 Hose wrapping machine FPH-300 Hose wrapping machine FPH-400 hose wrapping machine FPH-500 hose wrapping machine
