Mastering Hose and Pipe Coil Packaging: An In-Depth Look at the FPH Series Hose Packing Machine
Efficiently packaging hose coils, plastic pipe coils, and similar rolled products presents unique challenges for manufacturers and distributors. Ensuring product integrity, minimizing material waste, and optimizing labor are crucial. The FPH Series Hose Packing Machine offers a robust solution designed for high efficiency, operational convenience, and superior package quality, ultimately saving significant personnel and material costs.
This series is primarily utilized for packaging hose reels and plastic pipe coils, including materials like HDPE and PVC pipes. Fhope Packaging technology allows for versatile wrapping using materials such as PE film, LLDPE stretch film, and HDPE woven tape, tailored to specific protection and containment needs.
With a typical packaging cycle speed of approximately 20 seconds per coil, the FPH series significantly boosts throughput. Fhope Packaging offers a comprehensive range of automated packaging solutions, including hose packing lines and coil wrapping systems. These systems can automate the entire process from coiling to conveying and final packaging, drastically reducing manual labor requirements. Additionally, Fhope Packaging provides coil shrink wrapping machines for alternative packaging needs.
Let's explore the different configurations within the FPH Series:
1. Vertical 'Top-Load' Hose Packing Machine (Open-Up Type)
The 'Top-Load' or 'Open-Up' vertical packing machine configuration is particularly well-suited for wrapping lighter coils, typically those weighing less than 10 kg. In this design, the coil is loaded from the top onto the wrapping station. This vertical orientation provides excellent stability during the wrapping process for lightweight items, as gravity assists in keeping the coil securely positioned while the packaging film is applied orbitally.
While optimized for lighter products, this configuration can also accommodate heavier coils. Loading heavier items might involve using hoists or other lifting aids to position the coil correctly within the machine's wrapping ring.
2. Vertical 'Bottom-Load' Hose Packing Machine (Open-Down Type)
The 'Bottom-Load' or 'Open-Down' vertical packing machine offers versatility, capable of efficiently packaging both lightweight and heavyweight hose or pipe coils. Loading is typically achieved by placing the coil onto support rollers or a turntable at the base of the machine.
For handling heavy coils, this design often integrates seamlessly with trolleys or carts, allowing operators to easily transport and position the coils onto the machine's designated loading area. This method enhances ergonomics and safety when dealing with substantial weights. Compared to the 'Top-Load' version, the 'Bottom-Load' configuration can sometimes offer a more cost-effective solution, particularly when frequent handling of heavy products is required.
3. Horizontal Hose Packing Machine

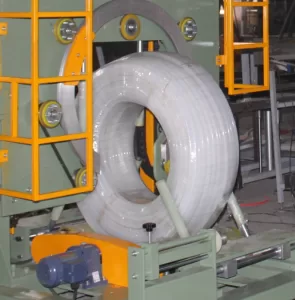

Horizontal hose packing machines operate with the coil oriented horizontally. The product typically passes through the wrapping ring on a set of driven rollers. As the rollers rotate the coil, the wrapping head orbits around it, applying the packaging material (stretch film or woven tape).
This configuration is highly adaptable, effectively packaging both light and heavy coils. Lighter items can be loaded manually onto the infeed rollers or transported via simple conveyor sections. For heavier coils and higher throughput applications, horizontal wrappers are ideally suited for integration into automated production lines. Conveyor systems feed the coils into the wrapping station and transport the finished package downstream, minimizing manual handling and maximizing efficiency. This makes the horizontal hose packing machine an excellent choice for high-volume industrial environments seeking significant labor savings and streamlined operations.
Choosing the right FPH Series configuration depends on factors like coil weight, dimensions, required throughput, available floor space, and the level of automation desired. Each type offers distinct advantages for specific hose and pipe coil packaging applications.
