Optimizing Cold Roll Steel Coil Packaging: A Guide to Automated Lines

Cold-rolled steel coils are essential materials in numerous industries, but their pristine surface finish and precise dimensions make them susceptible to damage and corrosion during handling, storage, and transportation. Implementing an effective cold roll steel coil packing line is crucial for preserving product integrity, ensuring safety, and streamlining logistics. This guide explores the components, processes, and benefits of modern automated coil packaging solutions.

Why is Proper Coil Packaging Essential?

Protecting cold-rolled steel goes beyond simple wrapping. A well-designed packaging process addresses several critical factors:

• Corrosion Prevention: Exposure to moisture and atmospheric contaminants can quickly lead to rust, compromising the steel's quality. Packaging materials like VCI (Vapor Corrosion Inhibitor) paper or film are often integrated.
• Surface Protection: Scratches, dents, and edge damage can occur during handling and transit. Secure wrapping and strapping minimize these risks.
• Handling Efficiency: Properly packaged coils are easier and safer to lift, move, and stack using standard handling equipment.
• Logistical Data: Integrated labeling and marking systems ensure accurate tracking and inventory management.

Understanding the Automated Coil Packaging Process

While specific configurations vary, a typical automated steel coil packing line involves a sequence of operations designed for efficiency and reliability. Key stages often include:

1. Coil Reception: Coils arrive at the line via conveyor, crane, or coil car.
2. Preparation: This may involve weighing, dimension measurement, and centering the coil.
3. Strapping: Circumferential and/or radial straps (often PET or steel) are applied to secure the coil's windings and provide structural integrity.
4. Wrapping: The coil is typically wrapped using an orbital wrapping machine that applies layers of stretch film, VCI paper, or other protective materials around the coil's circumference and through its eye.
5. Eye Banding (Optional): Additional straps may be applied through the coil's eye for further security.
6. Labeling/Marking: Application of identification tags or direct marking onto the packaging.
7. Discharge: The fully packaged coil is moved off the line for storage or shipment.

Key Components of a Modern Packing Line

Automated lines integrate various specialized machines:

• Conveyors: Transport coils between stations (roller, chain, or walking beam).
• Coil Upenders/Tilters: Reorient coils from eye-vertical to eye-horizontal or vice-versa as needed.
• Strapping Machines: Automatically apply, tension, seal, and cut strapping material.
• Wrapping Machines: Utilize orbital technology to wrap coils efficiently. Key features often include:
  • Automatic positioning for different coil dimensions.
  • Adjustable overlap control for packing materials via converters.
  • Shuttle or ring mechanism for passing wrapping material through the coil eye.
  • PLC & HMI interfaces for control and parameter input (OD, ID, width).
• Weighing Stations: Integrated scales for accurate weight recording.
• Label Applicators: Automated systems for tag placement.
• Control Systems: PLCs (Programmable Logic Controllers) and HMIs (Human-Machine Interfaces) manage the entire line's operation, synchronization, and diagnostics.

Visualizing the Process: Coil Packing Line Videos

Seeing these systems in action provides valuable insight:

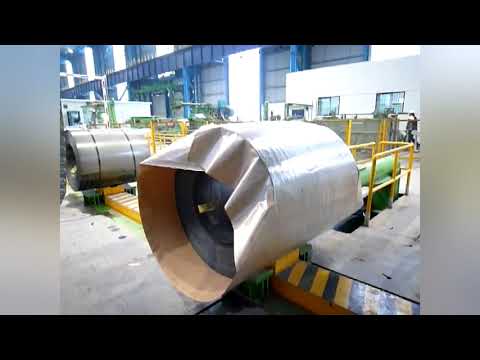

Automated Coil Packaging Line with Strapping:

This video showcases the integration of strapping machines within an automated packaging sequence.

Coil Strapping Detail:

Focuses on the mechanics of the strapping process.

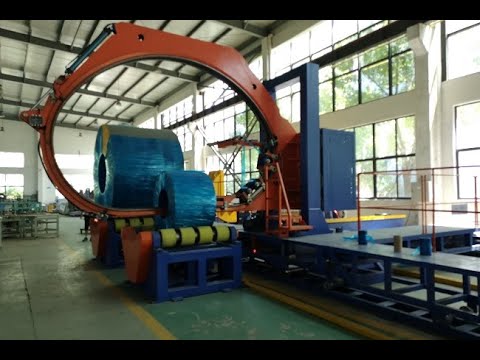

Heavy-Duty Coil Wrapping:

This demonstrates a steel coil wrapping machine designed for large "mother coils" weighing up to 35 tonnes. Such machines can be configured for offline (batch) processing or integrated directly into an online production flow.

Advanced Features and Customization

Modern metal coil packaging solutions offer significant flexibility and advanced capabilities:

• Operational Modes: Systems typically offer both fully automatic and manual modes for flexibility and maintenance.
• Precision Control: PLCs allow for precise positioning, material feed rates, and tension control. Operators often only need to input basic coil dimensions (OD, ID, width), with the system calculating other parameters automatically.
• Adaptability: Lines can be designed to handle a wide range of coil sizes and materials, including steel, aluminum, copper, and wire rod.
• Movement and Positioning: Wrapping stations often feature automated movement (e.g., traversing) to accommodate different coil widths and ensure accurate wrapping start/stop points. Six-block roller systems are common for stable coil support during rotation.
• Integration: Lines can be integrated with plant-level control systems (MES/ERP) for data exchange and process optimization.

Benefits of Automating Coil Packaging

Investing in an automated cold roll steel coil packing line yields substantial advantages:

• Enhanced Efficiency: Reduces manual labor and significantly increases packaging throughput compared to manual methods.
• Improved Safety: Minimizes manual handling of heavy coils and interaction with machinery, reducing injury risks.
• Consistent Quality: Ensures uniform application of strapping and wrapping materials, providing reliable coil protection.
• Reduced Material Waste: Precise control over material application minimizes overuse of strapping and film.
• Labor Optimization: Frees up personnel for higher-value tasks.
• Product Integrity: Significantly lowers the risk of damage and corrosion, reducing claims and improving customer satisfaction.

Choosing the Right System

Selecting the appropriate packaging line automation level and configuration depends on factors like:

• Coil dimensions (ID, OD, width) and weight range.
• Required throughput (coils per hour/shift).
• Types of packaging materials required (VCI, stretch film, specific strapping).
• Available floor space and layout constraints.
• Budget and desired level of automation.
• Integration requirements with existing production lines or systems.

A well-designed cold roll steel coil packing line is a critical asset for steel producers and processors. By automating the strapping and wrapping processes, businesses can enhance efficiency, improve worker safety, ensure product quality, and ultimately strengthen their competitive position.

For further details on specific heavy-duty coil wrapping solutions, see information on Master Coil Wrappers.
